Dongfeng RHD Truck Mounted Sweepers With Water Sprinklers For Brushes
Sweeper Truck is an efficient environmental sanitation truck equipped with functions of sweeping road and high pressure cleaning road. It is widely used in city streets, road, station, square etc. Road cleaning truck are mainly composed of chassis, box (garbage box and water tank), sweep system, auxiliary engine, fan system, cleaning system, suction system, dust system, hydraulic system and electrical control system. The garbage box and water tank are made of super thick stainless steel plate. In order to prevent the early damage of the water tank and the garbage box because of corrosion, all the parts of the tank and the garbage box are made of super thick stainless steel, which greatly prolongs the service life of the whole truck.
Description FEEDBACK
Dongfeng RHD Truck Mounted Sweepers With Water Sprinklers For Brushes


Sweeper Truck is an efficient environmental sanitation truck equipped with functions of sweeping road and high pressure cleaning road. It is widely used in city streets, road, station, square etc. Road cleaning truck are mainly composed of chassis, box (garbage box and water tank), sweep system, auxiliary engine, fan system, cleaning system, suction system, dust system, hydraulic system and electrical control system. The garbage box and water tank are made of super thick stainless steel plate. In order to prevent the early damage of the water tank and the garbage box because of corrosion, all the parts of the tank and the garbage box are made of super thick stainless steel, which greatly prolongs the service life of the whole truck.

A large area filter net is set at the top of the box to to reduce the clogging and to ensure the fluency of suction, the top of the box is set with a flow guide slot, which improves the dust effect, makes the garbage accumulation even and improves the effective capacity. Road sweeper truck is equipped with 2 brushes, the cleaning device has the function of automatic barrier protection or automatic reset. Road cleaning truck uses a unique hand pressure pump emergency lifting system: when the auxiliary engine fails and can not start the auxiliary engine, the garbage box is raised to facilitate the maintenance of the worker. The hydraulic valve group adopts the famous leading brands: the test pressure can reach 35MPa and the flow rate is 300L/Min. The dynamic, static and fatigue life of various industrial hydraulic valves and walking mechanical hydraulic valves can be accurately tested.

Using ultra wide mouthpiece, inside have long row of high pressure water spray bar is near the ground, have a big water impact force, can be direct make the sewage to suction port, efficient.



Technical date
Dongfeng Road Sweeper Truck Technical date
General Descriptions Specifications and types
Truck Brand CLW BRAND
Chassis Brand Dongfeng
Approx. Dimension 5800*2140*2200 mm
GVW./Curb Wt. 3495/ 3200 kg
Cab Cab Capacity 2 persons‘ seat
Air Conditioner Air Conditioner is optional
Chassis Drive Type 4X2,Right hand drive
Fuel Type Diesel
Engine Make & Model Chaochai
Power 82hp
Emission Standard  EURO III
Brake Air Brake
Wheelbase/No.of axle 3300 mm / 2
Tyre Specfication 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Automative metallic paint
Brushes  4 unit Per truck
Water Spray to Brushes  With
Capacity Garbage Tank Volume:4.2CBM
Material :Stainless steel
Water Tank Volume:1.2CBM
Material :Carbon steel
Auxiliary Engine JMC
Rated Power 64KW
Work Width 2.8m
Inhalation particle size φ120mm
Maximum operating capacity 13000SQ/h-52000SQ/h
Motor Sanyo
Control switch Schneider
Solenoid valve group Hypres
Clutch Continuously variable automatic
Fan Maintenance-free centrifugal automatic
Water pump Zhonglian Polaris Electronics
Indicator light Rear LED arrow
Emergency system Hand pump

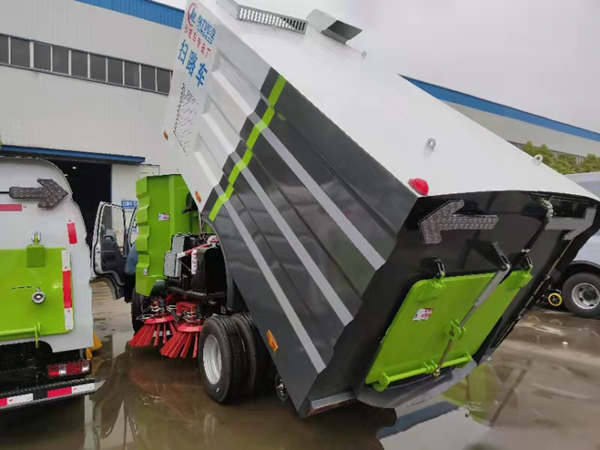

Dump function Garbage lift
Free Spares Part
Nylon brush 100 PCS
200mm vacuum tube 1 PCS
Water filter element 1 PCS
Special fan belt 1 PCS
Rear door sealing strip 1 PCS
Bottom of the suction cup 1 PCS
Suction port sealing ring 1 PCS
Sweeping water nozzle 1 PCS
Sweep the middle shield 1 PCS
Suction Cup Wheel 1 PCS
