| Brand Name: | Foton Auman |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

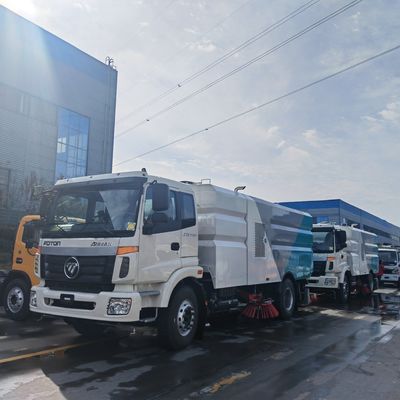

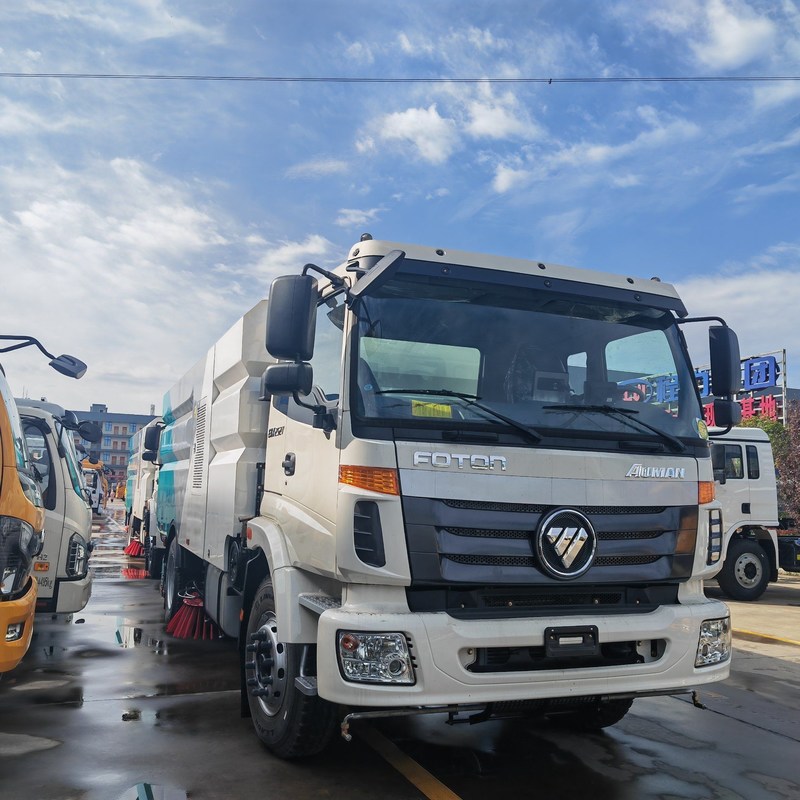

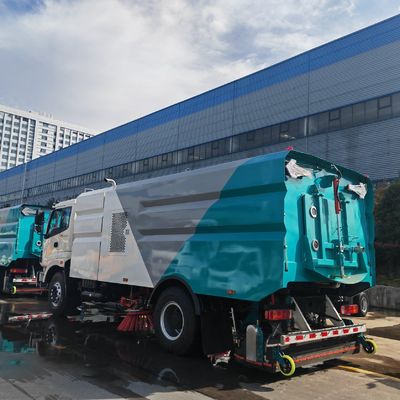

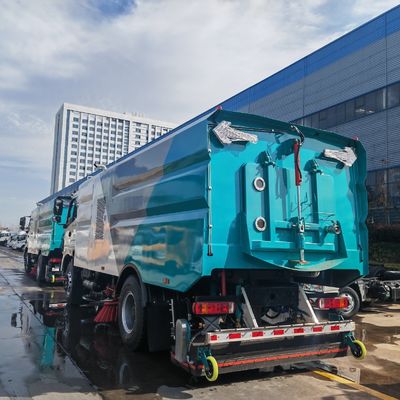

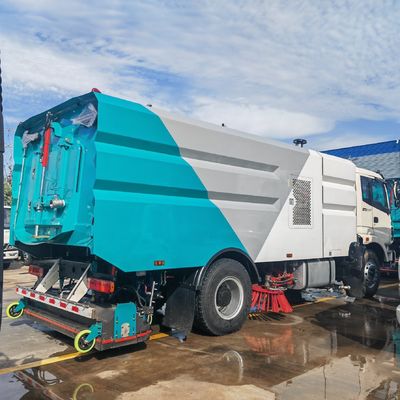

Foton Auman Road Sweeper Lorry 2 Axle Vacuum Street Sweeper Truck
Foton Auman Road Street Snow Floor Cleaning Sweeper Mounted Truck is a type of multi-functional special purpose vehicle built on a Foton Auman chassis. These trucks are designed for comprehensive municipal and industrial cleaning tasks, including sweeping, dust suppression, and can often be equipped with features for snow removal.
Multi-Functionality: It's designed to perform street sweeping, dust collection, and often includes a water spraying/cleaning system. Some models are explicitly multi-purpose, potentially accommodating equipment like a snow plow or snow brush for winter operations.
Operating Principle: Most models are a combination of a sweeping system (brushes) and a suction system (vacuum nozzle) to collect debris. They also use a water sprinkling system for effective dust suppression.
Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmentally protective vehicles, combined with suction type and road sweeping. It's mainly applied to city streets, municipal squares, large-scale mechanized factory, etc. The truck chassis can be any brand in China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, etc.
Foton Auman Snow Plow Road Street Sweeper And Cleaning Wash Truck Price Technical date:
| Component | Typical Feature/Specification |
| Chassis | Foton Auman (various series like Aumark, depending on capacity), 4x2 drive. |
| Engine | Diesel engine, often from Foton Cummins or Yuchai, with power in the range of 100-240 HP, meeting various emission standards (e.g., Euro III, Euro V). |
| Auxiliary Engine | A separate engine (often Cummins or JMC technology) to power the sweeping and suction equipment, ensuring consistent cleaning performance independent of the main vehicle speed. |
| Sweeping System | Sweeping Width: Typically ranges from 2.8 meters up to 3.2 meters or more. |
| Sweeping Speed: Can operate efficiently at low speeds (e.g., 3-15 km/h). | |
| Cleaning Efficiency: Often stated as ≥95% or higher. | |
| Capacity | Dustbin/Garbage Tank: Varies significantly, but common sizes include 4 CBM (cubic meters) up to 8 CBM or more. |
| Water Tank: Varies, commonly from 1,000 Liters (1 CBM) to 2,000 Liters (2 CBM) for dust suppression. | |
| Materials | Dustbin and water tanks are frequently made of stainless steel (like Stainless Steel 304) for corrosion resistance and durability. |
| Suction Capability | Features a suction nozzle (often full-floating) capable of inhaling particles up to a certain size (e.g., 50mm - 120mm). |
| Vehicle Parameters | |||
| Vehicle model | EHY5090TSLE | Vehicle brand | Foton |
| Vehicle dimension | 5400X1950X2500mm | Curb weight | 4495kg |
| Dust tank volume | 4500L | Water tank volume | 1000L |
| Chassis Parameters | |||
| Chassis model | EQ1090T9ADJ3AC | Chassis brand | Foton Auman |
| Overall dimensions | 3050x1750x2050mm | Wheel base | 3300mm |
| Cab | Single row cab,allowable 3 passengers,cab can be flipped | ||
| Engine | Foton Auman YC4FA120-33 | ||
| Horse power | 120hp | ||
| Emission | Euro 3 | ||
| Displacement | 1999ml | ||
| Tire | 7.50R16 steel wire tire | Transmission | 5 speed forward 1 reverse |
| Steering device | Power assisted steering | Steering wheel | Left hand drive |
| Road Sweeper Parameters | |||
| Dust tank volume | 4500L | Water tank volume | 1000L |
| Sweep width | 3000m | Cleaning speed | 3-20km/h |
| Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% |
| Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm |
| Unloading angle | 45° | Unloading height | 970mm |
| Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | ||
Foton Auman Road Sweeper Lorry 2 Axle Vacuum Street Sweeper Truck details :
Integrated Control System: The operation of the sweeping and vacuuming functions is typically controlled via an integrated electrical control system inside the cabin, allowing the driver to manage the sweeping process conveniently.
Dust Filtration: Modern vacuum sweepers often include an efficient filtration system (e.g., multiple filter cylinders) to separate dust and minimize secondary dust pollution.
Automatic Obstacle Avoidance: The sweeping discs often have an automatic obstacle avoidance protection and reset function to prevent damage when encountering curbs or large objects.
Convenient Unloading: The dustbin is hydraulically controlled, allowing for the easy tilting of the trash box and opening of the rear door for convenient, hands-free dumping from the cabin.
Full Suction Cleaning: The design generally favors a full suction cleaning principle, which allows for effective removal of debris from fine dust to pebbles and leaves, without excessive reliance on mechanical brushes that wear out.
About Chengli Special Automobile Co., Ltd
Location: Headquartered in Suizhou, Hubei Province, China, often referred to as the "Capital of China's Special Purpose Vehicles."
Establishment: Founded in 2004.
Scale: It is a large-scale enterprise, often cited as one of the biggest special vehicle manufacturers in China and a China Top 500 Private Enterprise.
Capacity: The company has a substantial production capacity, with an annual capacity of around 100,000 special vehicles.
Export Market: Its products are exported to numerous countries across South America, the Middle East, Central Asia, Southeast Asia, and Africa.
Number of Countries: Chengli's products are exported to over 80 countries and regions worldwide.
Main Regions: Their sales are heavily concentrated in several major global markets, including:
Africa: A very strong market, with exports to countries like Nigeria, South Africa, Tanzania, Ghana, Algeria, Congo, Zambia, Mali, and others.
Southeast Asia & Asia: Key markets include the Philippines, Vietnam, Myanmar, Thailand, Cambodia, Laos, Malaysia, and Pakistan.
Central Asia: Countries like Kazakhstan, Mongolia, and Uzbekistan.
Middle East: Including the UAE and Saudi Arabia.
South America: Such as Peru, Bolivia, Panama, Chile, and Venezuela.
Oceania: Including Australia and New Zealand.
Key Export Products and Case Examples
The diversity of their product range allows them to meet various municipal, energy, and construction needs globally. Examples of specific exports include:
Fuel & Chemical Tankers: Exported to Saudi Arabia (fuel tanker trailers) and various African and Asian countries.
Sanitation Vehicles: Garbage compactor trucks and arm roll garbage trucks sent to countries like Bangladesh, Trinidad and Tobago, and the UAE.
Water & Fire Trucks: Water sprinkler trucks exported to Tanzania and Yemen; fire trucks to the Philippines and Myanmar.
Rescue & Utility Vehicles: Ambulances (including Mercedes Benz models) exported to Dubai, aerial platform trucks to Kazakhstan, and wrecker tow trucks.
