| Brand Name: | Dongfeng |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

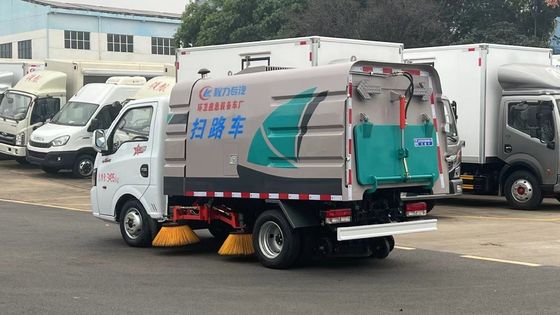

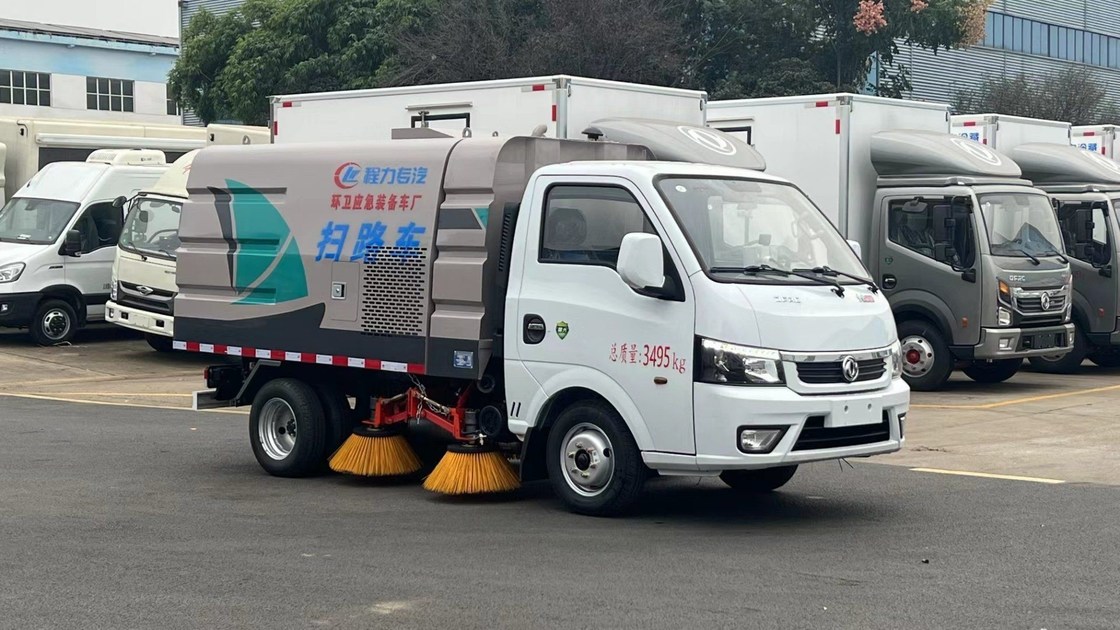

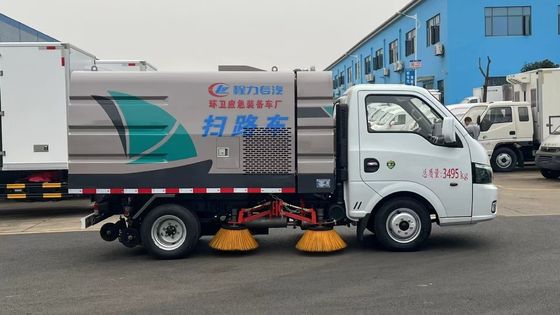

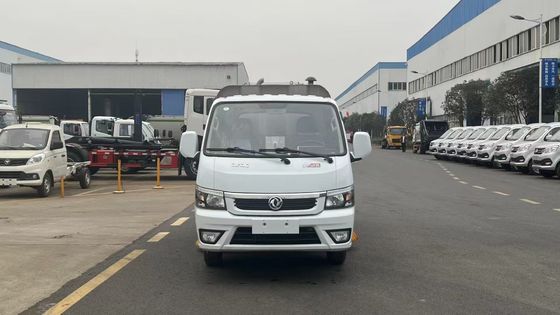

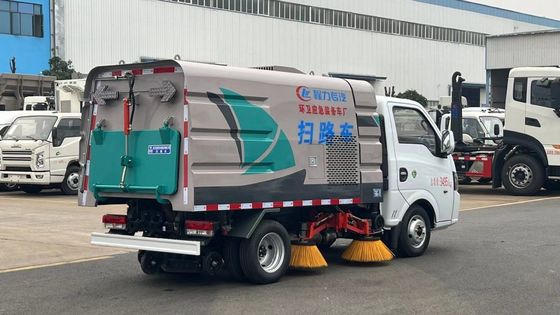

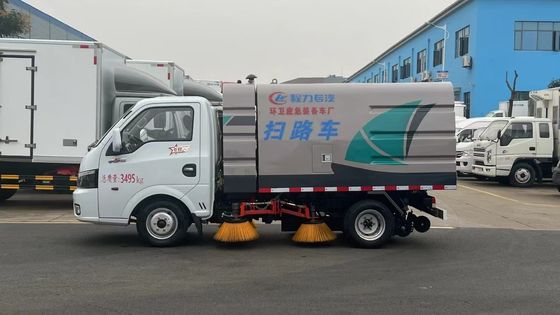

Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck
The Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck is a specialized municipal vehicle designed for urban and industrial area sanitation. It integrates multiple functions for efficient street cleaning.
Multi-Functionality: It typically combines sweeping, vacuum dust suction, and water spraying (sprinkling/dust suppression) in one machine. Some models also offer high-pressure washing.
Dust Control: The water spray system is crucial for dust suppression, wetting the road surface to prevent secondary pollution as the brushes sweep and the vacuum collects debris.
Sweeping System: Usually features side brushes (often two or four) that rotate to move debris towards the center of the vehicle and a suction nozzle located underneath or at the rear. The brushes often have an auto-avoidance or protection function.
Debris Collection: A powerful vacuum/suction system (often driven by an auxiliary engine and fan) sucks the swept debris and fine dust into a dedicated garbage/dust tank (hopper).
Auxiliary Engine: The cleaning functions (brushes, fan, hydraulic system) are often powered by a separate auxiliary engine (like a Cummins or similar brand) for consistent performance independent of the main vehicle engine.
Tanks: It includes a Water Tank (for the spray system) and a Garbage/Dust Tank (for collected debris), often made of stainless steel for durability and corrosion resistance.
Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmentally protective vehicles, combined with suction type and road sweeping. It's mainly applied to city streets, municipal squares, large-scale mechanized factory, etc. The truck chassis can be any brand in China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, etc.
Dongfeng sweeper brush road sweeper truck Technical date:
| Component Category | Specification |
| Vehicle Chassis | |
| Chassis Brand | Dongfeng (DFAC) |
| Drive Type | 4×2 |
| Steering | Left Hand Drive (LHD) or Right Hand Drive (RHD) |
| Overall Dimensions (L×W×H) | 6200×2000×2590 |
| Wheelbase | 3300−3360 |
| Gross Vehicle Weight (GVW) | 5000−7350 |
| Curb Weight | 3500−5220 |
| Main Engine Power | 90−130 |
| Tire Specification | 7.00R16 |
| Max Driving Speed | 90 |
| Cleaning System | |
| Sweeping System | 4 Center-mounted sweeping brushes + rear suction nozzle |
| Sweeping Width | 2.8−3.2 |
| Sweeping Speed (Working) | 3−20 |
| Max Cleaning Capacity | 40,000−60,000 |
| Cleaning Efficiency | ≥95 |
| Max Suction Granular Size | ≥110−120 |
| Superstructure/Tank System | |
| Garbage/Dust Tank Volume | 3.5−4.0 |
| Garbage/Dust Tank Material | Stainless Steel |
| Max Discharge Angle | ≥45∘ |
| Water Tank Volume | 1.5−2.0 |
| Water Tank Material | Stainless Steel |
| Dust Suppression System | Water spray bars/nozzles on brushes and suction inlet |
| Power System (Auxiliary) | |
| Auxiliary Engine Brand/Model | Isuzu-tech or similar (for sweeping/vacuum function) |
| Auxiliary Engine Power | 57 or 77 |
| Vacuum Fan | Maintenance-free centrifugal fan |
| Hydraulic System Pressure | 16 |
| Control & Operation | |
| Control Type | In-cab Electric/Hydraulic control panel |
| Key Safety Features | Sweeping brushes with automatic obstacle avoidance/reset function |
| Additional Features | Rear LED pilot lamp, Self-unloading dump body |
| item | Parameter |
| Production name | Dongfeng Tianjin Road sweeper truck |
| vehicle model | CLW5160TSLD5 |
| Engine | Engine model: ISB190 50 |
| Engine manufacturer: Dongfeng Cummins Engine Co., LTD | |
| Exhaust: 4500ml | |
| Power: 132kw | |
| Chassis model | DFL1160BX1V |
| Tire | Tire specification: 10.00R20 |
| Number of tire: 6+ 1 spare | |
| Axle | Number of axles: 2 |
| Axle-load: 5800/10000 | |
| Wheel base(mm): 4700 | |
| Traction system | 4*2 |
| Tank fact cubage(cbm) | 8 m3 dustbin,4 m3 clean water tank |
| GVW(kg) | 15800 |
| Curb weight(kg) | 10670 |
| Overall dimensions(mm) | 8050×2500×3060 |
| Steering Wheel | Left hand Driver or Right Hand Driver |
| F / R track base(mm) | 1880/1860 |
| F/R overhang(mm) | 1430/1920 |
| Approach / departure angle(°) | 20/12 |
| Max speed(Km/h) | 90 |
| equipment | 1> Equipped with 4 sweeping brush, Cummins 140 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system. |
| 2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm | |
| 3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin. | |
| Product cycle | 15-20 days |
| Warranty | 12 months, from the date of supply |
Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck details :
Sweeping:
Side Brushes (usually 2 or 4): Located toward the center or front, these brushes rotate to dislodge debris from curbs and gutters and push it into the path of the central suction nozzle. They often have automatic obstacle avoidance and can be controlled independently (left or right side).
Dust Suction (Vacuum):
Auxiliary Engine: The special functions (sweeping, suction, water) are usually powered by a separate auxiliary engine (e.g., Cummins or Isuzu technology), which drives a powerful fan or air blower.
Suction Nozzle: The fan creates a strong negative pressure (vacuum) in the debris hopper. A wide suction nozzle positioned behind the brushes then sucks up the debris (dust, sand, leaves, small stones) along with the air, depositing it into the garbage tank (hopper).
Water Spraying (Dust Suppression):
Nozzles: Water nozzles are strategically placed, typically over the sweeping brushes and possibly in the suction area.
Function: The water is sprayed as a fine mist to dampen the dust stirred up by the brushes and to prevent it from becoming airborne, which significantly reduces secondary dust pollution.
About Chengli Special Automobile Co., Ltd
Headquarters: Suizhou City, Hubei Province, China. Suizhou is often called the "Capital of China's Special Purpose Vehicles."
Establishment: The company's predecessor, Chengli Special Automobile Co., Ltd., was established in 2004.
Scale: It is one of the largest special vehicle manufacturers in Central China, with a large industrial park, thousands of employees, and a high annual production capacity (e.g., up to 100,000 special trucks).
Group Status: The parent company, CLW Group, is a diversified enterprise that ranks among the Top 500 Chinese Private Enterprises.
Africa: This is a major market, with sales reported across East Africa (e.g., Tanzania, Kenya, Uganda, Malawi) and West Africa (e.g., Nigeria, Ghana, Senegal, Togo, Benin, Niger, South Africa). Their products often support infrastructure, sanitation, and logistics projects in these regions.
Southeast Asia: A strong and established market for Chengli, including countries like the Philippines, Vietnam, Cambodia, Myanmar, Laos, Malaysia, and Thailand.
Middle East: Important markets such as Saudi Arabia and the UAE are destinations for their specialized vehicles, particularly fuel tankers and emergency vehicles (e.g., ambulances).
Central Asia: The company exports to countries like Russia, Mongolia, Kazakhstan, Uzbekistan, and Kyrgyzstan.
South America: Key customers are located in countries such as Peru, Bolivia, Panama, Chile, and Venezuela.
Oceania: Products are also shipped to countries like Australia and New Zealand.
Eastern Europe: This is also listed as a trade market.
Certifications and Export Capabilities
Chengli's ability to compete internationally is supported by its strong compliance and infrastructure:
Export Right: The company holds the right to conduct self-managed export business.
International Certifications: They have secured essential international certificates for global trade, including ASME (American Society of Mechanical Engineers) and ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road), which are critical for exporting pressure vessels and tank trucks.
Customization: They are known for providing customized and OEM services to meet the specific technical and regulatory requirements of different international markets (e.g., Left-Hand Drive vs. Right-Hand Drive).
