| Brand Name: | Shacman L3000 |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
SHACMAN L3000 Chassis Key Features (General):
Engine: Commonly uses Weichai or Cummins diesel engines, often in the 210 HP to 300 HP range, though specialized configurations might reach higher horsepower.
Application: It's designed as an all-rounder for inter-city logistics, municipal sanitation, and urban construction, making it suitable for a variety of modified bodies.
Maneuverability: Known for good maneuverability in urban environments with a relatively small minimum turning radius (around 8.4 meters) and a maximum turning angle of 46 degrees.
Chassis: The chassis is robust and designed to be easily modified for special uses like water trucks, garbage trucks, and sweeping/plowing equipment.
Cab: Features the L3000 cab, which often includes hydraulic suspension seats, air conditioning, and a sleeper berth (in some configurations) for driver comfort.

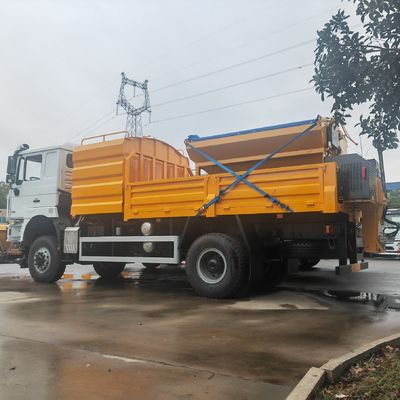

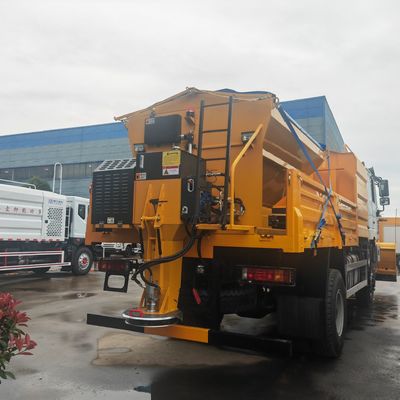

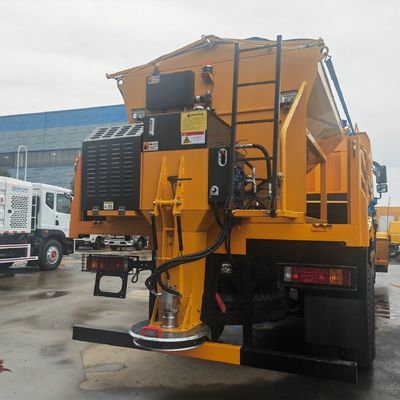

Capabilities as a Snow Removal / Snow Sweeper Truck:
When built as a snow removal or snow sweeper truck, the L3000 chassis is fitted with specialized upper structures:

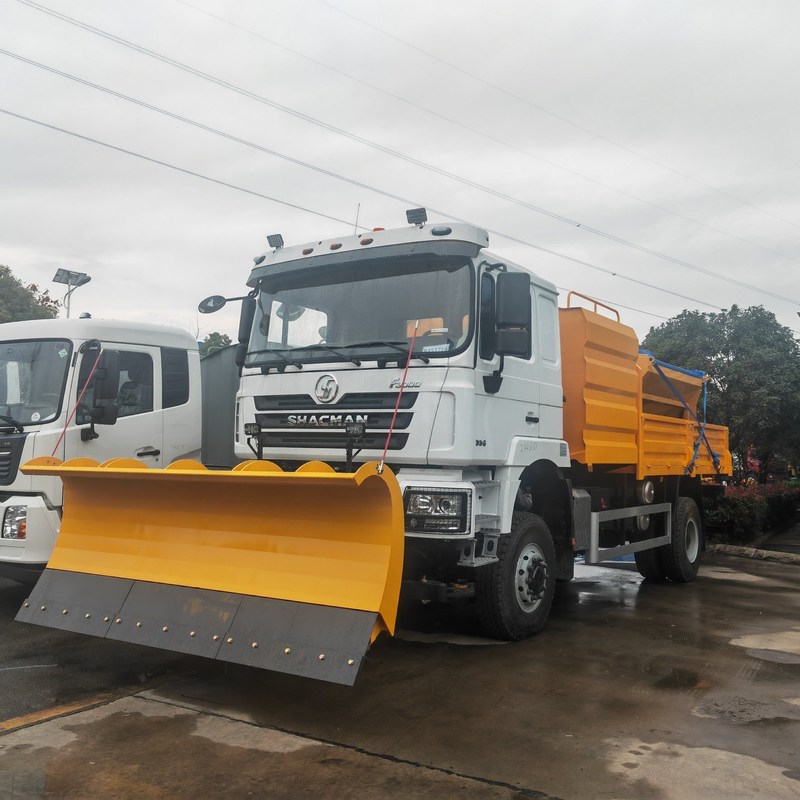

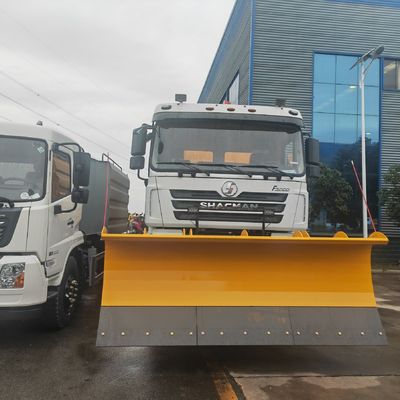

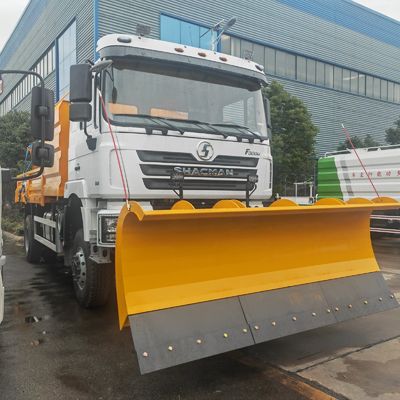

Plow/Shovel Car (Snowplow): The robust chassis and frame are designed to handle the stresses of mounting and operating a heavy-duty snowplow blade on the front. The truck's weight and power (especially a higher HP variant) provide the necessary traction and force for pushing heavy snow.
Snow Sweeper Truck: A more common municipal configuration is a road sweeper which can often be used for lighter snow and slush removal.
Auxiliary Engine: Sweeper versions typically feature an auxiliary engine (sometimes around 170 HP) to power the sweeping and suction mechanisms independently of the main drive engine.
Components: This setup includes side brushes, a large suction nozzle, a fan machine for vacuum pressure, and separate water and dust tanks (e.g., 9,000 liters water, 7,000 liters dust).
Sweeping Performance: These sweepers can achieve a maximum sweeping width of about 2.8 to 3.2 meters and an operational speed of 0 to 20 km/h.
| Component | Specification (Typical for L3000/Municipal) | Notes |
| Chassis Model | SHACMAN L3000 Series (e.g., SX5180 series) | Medium-duty municipal chassis |
| Drive Type | 4×2 (Most common for sweepers) | Also available in 6×4 |
| Main Engine Horsepower | 336 HP (User Specified) | High-output engine (e.g., Weichai WP or Cummins) |
| Emission Standard | Euro III, Euro IV, or Euro V | Varies by market and engine model |
| Gross Vehicle Weight (GVW) | ∼16,000 kg to 18,000 kg | Total permissible weight when fully loaded |
| Curb Weight (Sweeper Body) | ∼7,000 kg to 8,000 kg | Weight of truck and sweeper body (empty) |
| Maximum Road Speed | ∼90 km/h | For road travel |
| Feature | Specification (Typical Sweeper) | Notes |
| Auxiliary Engine Power | ∼140 HP to 170 HP | Dedicated engine (e.g., Cummins) for the vacuum/sweeping system. |
| Maximum Sweeping Width | ∼2.8 m to 3.5 m | The width of the path cleaned in one pass. |
| Sweeping Operating Speed | ∼3 km/h to 20 km/h | Efficient speed for street cleaning/light snow removal. |
| Maximum Sweeping Capacity | ∼50,000 m2/h to 70,000 m2/h | Theoretical area cleaned per hour. |
| Dust Tank Capacity | ∼7,000 Liters to 8,000 Liters | For collected debris (often stainless steel). |
| Water Tank Capacity | ∼9,000 Liters | For dust suppression and washing functions. |
| Maximum Suction Particle Size | ≥110 mm | Ability to vacuum large debris (e.g., stones, leaves). |
| Feature | Specification (Snow Shovel/Plow) | Notes |
| Snow Shovel Type | Front-mounted, hydraulically controlled | Varies by manufacturer (e.g., V-plow, straight blade) |
| Snow Shovel Width | ∼3 m to 4.5 m | Blade width; must be wider than the truck. |
| Snow Pushing Speed | ∼20 km/h to 30 km/h | Maximum recommended speed for plowing. |
| Item | Parameter |
| Production name | Shacman L3000 |
| Vehicle model | CLW5122TSLT4 |
| Engine | Engine model: ISB170 40 |
| Engine manufacturer: Dongfeng Cummins Engine Co., LTD | |
| Exhaust: 5900ml | |
| Power: 125kw | |
| Chassis model | EQ1128GLJ |
| Tire | Tire specification: 9.00-20 |
| Number of tire: 6 | |
| Axle | Number of axles: 2 |
| Axle-load: 4990/7500 | |
| Wheel base(mm): 3950 | |
| Traction system | 4*2 |
| Tank fact cubage(cbm) | 6 m3 dustbin,2.5 m3 clean water tank |
| GVW(kg) | 12490 |
| Curb weight(kg) | 8495 |
| Overall dimensions(mm) | 7160×2480×3000 |
| F / R track base(mm) | 1810/1800 |
| F/R overhang(mm) | 1250/1960 |
| Approach / departure angle(°) | 30/16 |
| Max speed(Km/h) | 90 |
| equipment | 1> Equipped with 4 sweeping brush, JMC 88 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system. 2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm 3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin. |
| Product cycle | 15-25 days |
| Warranty | 12 months, from the date of supply |
Chengli Special Automobile Co., Ltd. (often referred to as CLW Group or Chengli Group) is one of the largest and most prominent manufacturers of special-purpose vehicles in China.
Here is an overview of the company's key aspects:
1. Company Overview
Headquarters & Main Factory Location: Located in Suizhou City, Hubei Province, China, which is known as the "Capital of China's Special Purpose Vehicles."
Establishment: The predecessor, Chengli Special Automobile Co., Ltd., was established in September 2004. It has since grown into the larger Chengli Automobile Group Co., Ltd.
Scale: The group is a massive enterprise, often ranked among the Top 500 Private Enterprises in China. It occupies a vast area (over 3,000 acres) with numerous member factories and a large employee base (over 10,000).
Core Business: Integration of R&D, manufacturing, sales, and service for a wide range of vehicles, including complete vehicles, special purpose vehicles, new energy vehicles, and automotive parts.
Brand: The main registered trademark is "CHENGLIWEI" (CLW).
2. Main Products
Chengli is known for having a very diverse and complete product line of customized trucks, often building superstructures on chassis from major manufacturers like Dongfeng, SINOTRUK (HOWO), SHACMAN, FOTON, ISUZU, and FAW.
The core product categories include:
Sanitation Vehicles:
Garbage Compactor Trucks
Hook Lift/Skip Loader Garbage Trucks
Road Sweeper Trucks (like the SHACMAN L3000-based models)
Sewage Suction Trucks and Vacuum Trucks
Water Sprinkler Trucks and Dust Suppression Vehicles
Tanker Trucks & Trailers:
Fuel Tank Trucks and Oil Tankers
LPG Tanker Trucks and Storage Tanks
Chemical and Hazardous Liquid Tank Trucks
Water Tank Trucks (often a top seller in China)
Construction & Engineering Vehicles:
Truck Mounted Cranes (Boom Trucks)
Dump Trucks
Aerial Work Platform Trucks (Manlift Trucks)
Concrete Mixer Trucks
Rescue & Emergency Vehicles:
Fire Fighting Trucks (Fire Engines)
Ambulances
Wrecker/Tow Trucks
Emergency Power Supply Trucks
Other Vehicles:
Refrigerated Trucks
Cargo Trucks and Van Trucks
LED Advertising Trucks
Off-Road and All-Wheel Drive (AWD) Special Trucks
3. Certifications and Market
Certifications: The company holds various key national and international certifications, including ISO 9001 (Quality Management), ISO 14001 (Environmental Management), CCC (China Compulsory Certification), and sometimes specialized certifications like ASME (for pressure vessels) and ADR (for dangerous goods transport).
Market Reach: CLW Group's products are sold across China and exported globally to over 30 countries and regions in South America, the Middle East, Central Asia, Southeast Asia, and Africa.
. Africa
Africa is a major and active market for Chengli's special vehicles, particularly those used for sanitation, construction, and resource transport.
East Africa: Countries like Tanzania, Kenya, Uganda, and Malawi are mentioned as export destinations.
West Africa: Countries such as Nigeria, Ghana, Senegal, Togo, Benin, and Niger are strong markets.
Other African Regions: Exports also reach countries like Zambia, Congo, Angola, and South Africa.
Common Exports: Sanitation trucks (garbage compactors, water trucks) and LPG (liquefied petroleum gas) vehicles are frequently exported to this continent.
2. Asia
The Asian market, especially Southeast and Central Asia, is a crucial part of the company's export strategy.
Southeast Asia: Key countries include the Philippines, Vietnam, Myanmar, Thailand, Cambodia, Laos, and Malaysia.
Central Asia: Exports extend into Russia, Mongolia, Kazakhstan, Uzbekistan, and Kyrgyzstan.
South Asia: Countries like Bangladesh and Pakistan are also served.
Middle East: The region is a significant market, with sales often including specialized tanker and transport vehicles.
3. South America
Chengli has established a presence in South America, supplying trucks for various needs.
Export destinations include countries such as Peru, Bolivia, Panama, and Chile.
4. Other Regions
Beyond these core areas, Chengli also exports its special vehicles to other parts of the world, including:
Oceania: Countries like New Zealand and Australia.
Eastern Europe
