| Brand Name: | Sinotruk HOWO |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

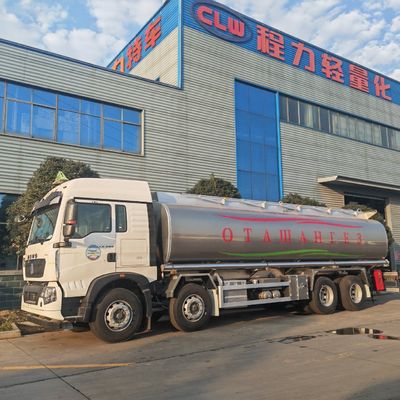

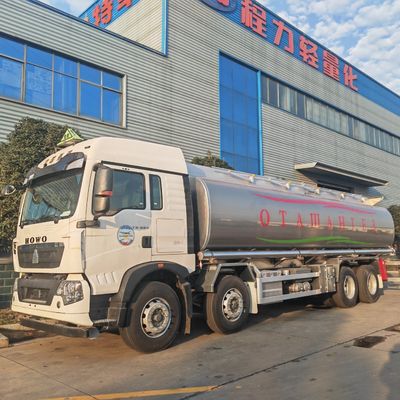

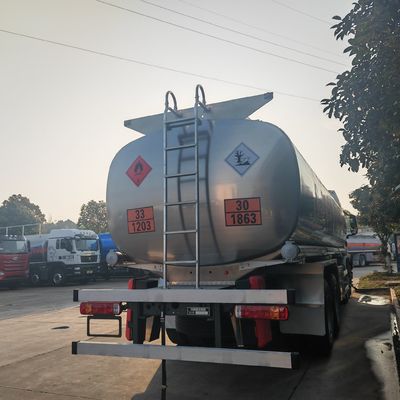

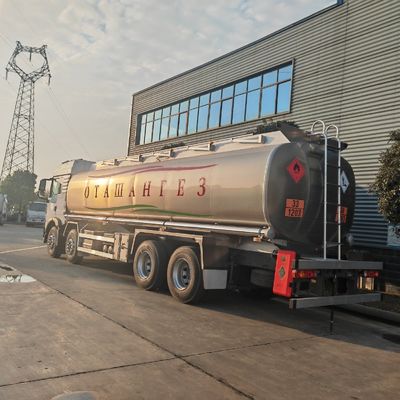

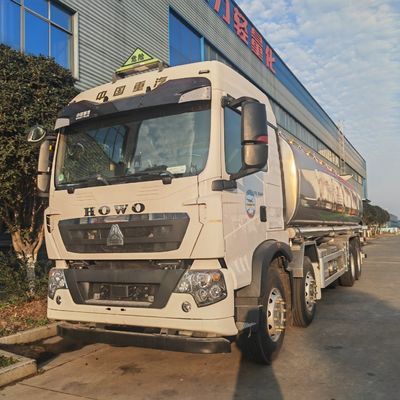

Sinotruk HOWO Fuel Tanker Truck 12 Wheel 20000L Aluminum Alloy Fuel Transport Truck
The SINOTRUK HOWO 12-wheel fuel tanker truck with a 20,000L aluminum alloy tank is a heavy-duty vehicle designed for the efficient and safe transportation of various liquid fuels.
Oil tanker is also known as mobile refueling truck, computer tax control refueling truck, oil tank truck, oil loading truck, oil transport truck, oil truck, oil transport truck, oil transport truck, mainly used for oil derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar and other oil products) transportation and storage. According to different uses and use of the environment has a variety of refueling or oil transport functions, with oil suction, pump oil, a variety of oil packaging, distribution and other functions.
Sinotruk HOWO Fuel Tanker Truck 12 Wheel 20000L Aluminum Alloy Fuel Transport Truck Specifications
| Feature | Typical Specification Range | Notes |
| Chassis | SINOTRUK HOWO Heavy Duty Series | Known for its robust and reliable chassis. |
| Tank Capacity | 20,000 Liters | Standard capacity, though customization up to 25,000L+ is possible. |
| Tank Material | Aluminum Alloy | Provides weight savings (increasing payload), is corrosion-resistant, and is suitable for transporting flammable liquids like gasoline and diesel. |
| Drive Type | 8x4 (12 wheels) or 6x4 (10 wheels) | A 12-wheel configuration typically implies an 8x4 drive, offering higher gross vehicle weight (GVW) and payload capacity. |
| Engine | SINOTRUK (or WEICHAI) Diesel Engine | Common horsepower ratings range from 336 HP to 371 HP (Horsepower). |
| Emission Standard | Euro II to Euro V (or higher) | Depends on the target market regulations. |
| Transmission | Manual, 10 forward speeds (e.g., HW19710) | Designed for heavy loads and varied road conditions. |
| Cab | HW76 or similar (single sleeper, A/C) | Comfortable for long-haul transport. |
| Axles | Heavy-duty axles (e.g., 7T front axles, 16T rear axles) | Provides necessary support for the heavy liquid load. |
| Tires | 12.00R20 or 295/80R22.5 Radial Tires | High-load bearing and wear-resistant. |
| Cab | Flat top with sleeper | Engine(PS) | 380 HP |
| Dimensions(mm) | 11850*2500*3600 | Tank inner size(mm) | 9000*2300*1600 |
| Curb Weight(kg) | 14500 | Load (kg) | 25500 |
| Delivery | about 30-50 days | Warranty | 12 months |
| Cab | Sinotruk HW76 NEW cab, reversible, with A/C, with sleeper | ||
| Front axle | HF 7 Ton *2 | ||
| Rear axle | ST 16 Ton*2 | ||
| Transmission | HW19710 transmission with 10 speed gears | ||
| Vehicle frame | Straight through reinforced beam | ||
| Tires | 295/80R22.5 type 13 PC Vacuum Tires include 1pc spare tire | ||
| ABS | Have | ||
| PTO interface | have | ||
| PTO | HW70. Pump in and pump out, the engine speed will be set to 700RPM when the PTO is on, when it is off the speed will return to normal. With independent control valve to control the hydraulic pump independently when using PTO | ||
| Front/rear suspension | Front: 1500, Rear: 2600(mm) | ||
| Departure angle | Front: 19, Rear: 11 | ||
| suspension | Leaf spring 10/10/12 | ||
| Leaf spring | front 10/10, rear 12 | ||
| Number of axles | 4 | ||
| Wheelbase(mm) | 1800+4600+1350 | ||
| Number of tires | 12+1 | ||
| Track(mm) | 2040;2040 /1860;1860 | ||
| Lines | A 24/12V converter and connector included in the wiring circuit (mainly for transmitting and receiving dual-ways radios) | ||
| Drive type | 8*4 | ||
| Engine | D10.380-40 sinotruk 380hp daylight LED lights up & beacon warning light (flat horizontal light) on top of the cab lights up when the engine is running and driving. |
||
| Emission Standards | Euro IV | ||
| Driving style | Steering wheel / RHD | ||
| Fuel tank capacity | 400L | ||
| Brake | Drum | ||
| Braking System | Air brake | ||
Sinotruk HOWO Fuel Tanker Truck 12 Wheel 20000L Aluminum Alloy Fuel Transport Truck Details :
Lighter Weight: Aluminum is significantly lighter than steel, allowing the truck to carry a larger payload (more fuel) while remaining within legal gross vehicle weight (GVW) limits.
Corrosion Resistance: Aluminum naturally resists corrosion from fuels and additives, leading to a longer tank service life and reduced maintenance costs.
Safety: It offers better heat dissipation and reduces the risk of sparks compared to steel, which is critical for transporting highly flammable liquids like gasoline.
Cleaner Fuel: The corrosion-resistant nature of the tank helps maintain the purity of the transported fuel.

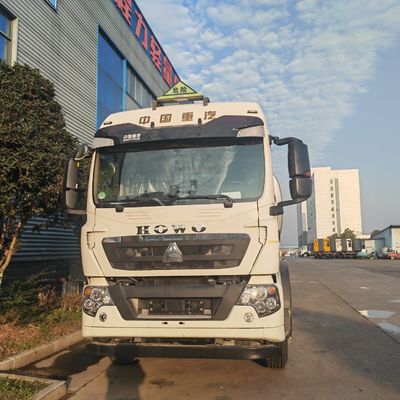

Top picture:
About Chengli Special Automobile Co., Ltd:
Core Entity: Chengli Special Automobile Co., Ltd. is the core enterprise of the Chengli Automobile Group (CLW Group).
Establishment: The company was established in September 2004.
Location: Headquartered in Suizhou City, Hubei Province, which is known as the "Capital of China's Special Purpose Vehicles."
Scale: The CLW Group is recognized as one of China's Top 500 Private Enterprises and is a large-scale manufacturer designated by the China Ministry of Industry and Information Technology.
Business Scope: The Group is a diversified company integrating R&D, manufacturing, and sales of complete vehicles, special-purpose vehicles, new energy vehicles, automotive parts, and emergency equipment.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Chengli is cited as one of the largest special vehicle manufacturers in Central China. Its products (under the CLW or CHENGLIWEI brand) are sold across China and exported to over 30 countries and regions in South America, Southeast Asia, the Middle East, Central Asia, and Africa. They have held a consistently high market share in China for certain product lines, such as sanitation trucks and water sprinkler trucks.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
