| Brand Name: | Dongfeng DFAC |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

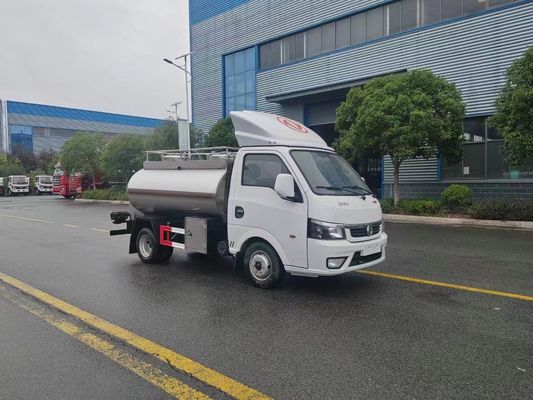

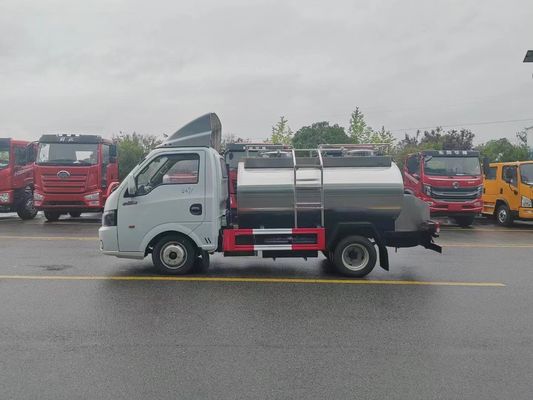

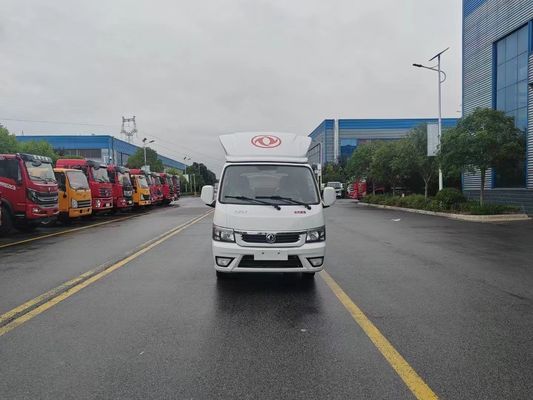

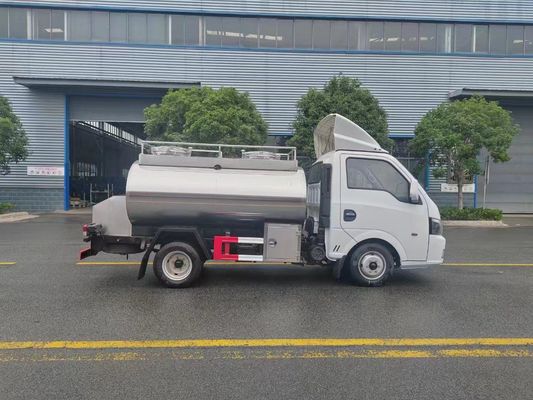

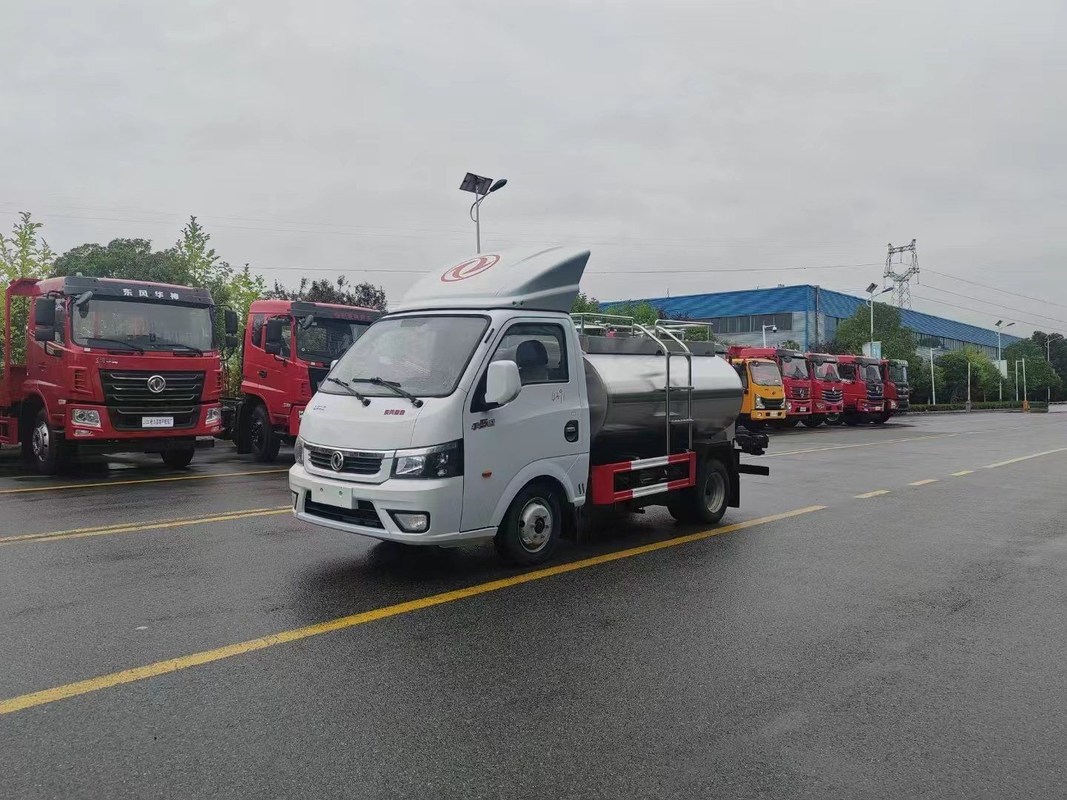

Dongfeng DFAC Food Grade Stainless Steel Tanker Truck with an 8000 Liter (8 CBM) milk tank is a specialized vehicle designed for the safe and hygienic transport of fresh milk and other liquid food products.
Potable water tanker (also called drinking water tanker, stainless steel water tanker, agua potavelwater, tank truck, water truck, water lorry, water tanker, watering truck, Camión cisterna) is used to transport and supply potable water, widely used in drought relief.
We adopt non-toxic treatment inside tank or tank made of stainless steel, so it is very suitable for transporting drinking water.
| Category | Item | Typical Specification |
| Vehicle | Chassis Brand | Dongfeng (DFAC) |
| Drive Model | 4×2 | |
| Overall Dimension (L×W×H) | ∼5995×2050×2350 mm | |
| Gross Vehicle Weight (GVW) | ∼7,300 kg | |
| Curb Weight | ∼3,800 kg | |
| Max. Speed | ∼95 km/h | |
| Engine Fuel Type Engine Brand (Common options) Horse Power (HP) / Power (kW) Emission Standard |
Diesel | |
| Dongfeng Chaoyang, Yuchai, Cummins (Mini models often use smaller engines) | ||
| ∼90 HP to 120 HP (∼66 kW to 88 kW) | ||
| Varies (e.g., Euro III, Euro IV, Euro V) | ||
| Displacement | ∼3.7 L to 4.5 L | |
| Chassis | Wheelbase | ∼3300 mm to 3360 mm |
| Transmission | Manual, 5 or 6 forward gears + 1 reverse | |
| Tire Specification | ∼6.50R16 or 7.00R16 | |
| No. of Axles | 2 | |
| Tank Body | Capacity | 3,000 Liters to 5,000 Liters (3 to 5 CBM) |
| Inner Tank Material | Stainless Steel 304 (Standard for Food Grade) or 316 (Higher Corrosion Resistance) | |
| Inner Tank Thickness | ∼3 mm to 4 mm | |
| Outer Shell Material | Stainless Steel (often SS304) or painted carbon steel | |
| Insulation Layer | Polyurethane Foam (PUF) | |
| Insulation Thickness | ∼80 mm to 100 mm | |
| Temperature Stability | Milk temp change ≤1∘C or 2∘C over 24 hours (for insulated milk tankers) | |
| Standard Equipment | Internal Cleaning | CIP (Clean-In-Place) System (for food/milk tankers) |
| Outlets | Food Grade Stainless Steel Valve(s) and piping | |
| Safety | Manhole with sealed cover, pressure/vacuum relief valve | |
| Chassis Specification | |||
| Item No. | Parameters | ||
| Chassis Brand | Dongfeng | Overall Dimension | 5500×1715×2055mm |
| Gross Vehicle Weight | 4015kg | Curb Weight | 2480 kg |
| Loading Weight | 1405 Kg | Wheel Base | 2800 mm |
| Cabin | Single, Left Hand Driving | ||
| Engine | Japan ISUZU | ||
| Overhang( Front/Rear) | 1140/1810(mm) | ||
| Fuel type | Diesel | ||
| Axle load | 1800/3500(kg) | ||
| Angle(Approach/departure) | 16/22(°) | ||
| Transmission/Gearbox | 5 Forward & 1 Reverse Gear | ||
| Brake System | Pneumatic | ||
| Steering Gear | Power Assistant | ||
| Tire | 6.00-15, 6 Pieces with 1 spare tire | ||
| Maximum speed | 90(km/h) | ||
| Tank specification | 5,000 liters, tank thickness is 3 mm, seal is 4 mm Tank Material: Stainless or Aluminium alloy |
||
The Dongfeng DFAC 8000 Liter (8 CBM) Food Grade Stainless Steel Tanker Truck is specifically designed for the hygienic and temperature-controlled transport of liquid food products like fresh milk, potable water, or edible oil
| Category | Item | Typical Specification |
| Vehicle | Chassis Brand | Dongfeng (DFAC) |
| Drive Type | 4×2 (6-wheeler) | |
| Tank Capacity | 8,000 Liters (8 CBM) | |
| Overall Dimensions (L×W×H) | ∼6900×2300×2650 mm | |
| Gross Vehicle Weight (GVW) | ∼11,000 kg to 16,000 kg (Varies by chassis model) | |
| Rated Load (Payload) | ∼6,000 kg to 8,000 kg | |
| Chassis | Engine Power (HP) | ∼120 HP to 140 HP (e.g., Yuchai, Dongfeng Cummins) |
| Emission Standard | Euro 3, Euro 4, or higher (varies by market) | |
| Wheelbase | ∼3800 mm to 4700 mm | |
| Transmission | Manual (typically 5 or 6 forward gears) | |
| Tires | E.g., 7.50R16 or 8.25R20 | |
| Layer / Feature | Specification Details | |
| Inner Layer (Liner) | Material: Food Grade Stainless Steel SUS 304-2B (or 316 for enhanced corrosion). | |
| Thickness: ∼3 mm to 4 mm | ||
| Surface Finish: Highly polished interior (mirror finish) with no sharp angles or welding residue to prevent bacterial growth (sanitary dead corner elimination). | ||
| Middle Layer (Insulation) | Material: High-Density Polyurethane Foam (PUF) | |
| Thickness: ∼80 mm to 100 mm (or more) | ||
| Outer Layer (Protection) | Material: Stainless Steel (often brushed finish to reduce glare and for aesthetics) | |
| Thickness: ∼2 mm | ||
| Thermal Performance | Heat Preservation: Medium temperature change is typically specified as ≤1∘C within 24 hours (when fully filled and with a large ambient-to-milk temperature difference). | |
| Compartments | Can be single or partitioned into multiple independent compartments (e.g., two or three) to transport different liquids or small batches. | |
| Component | Function / Details | |
| CIP Cleaning System | Clean-In-Place. Each compartment is equipped with 360∘ rotating spray balls for automatic and thorough internal washing. Includes dedicated stainless steel CIP feed and return pipelines. | |
| Manhole | Sanitary Manhole: Insulated, pressure-sealing, with a dust cover. Equipped with a Pressure/Vacuum Relief Valve (PVRV) (also known as a mechanical safety breathing valve) to prevent tank deformation from pressure changes during loading/unloading or temperature shifts. | |
| Discharge System | Food-grade stainless steel pipeline and Butterfly Valves (sanitary valves) at the rear, typically housed in a protective, lockable valve box. | |
| Platform/Access | Non-slip walkway/catwalk and ladder made of stainless steel for safe access to the top manholes and CIP connections. | |
| Pumping | Optional dedicated Stainless Steel Centrifugal Pump for self-priming and discharge operations. | |
