HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck

HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck

Brand Name: HOWO
Model Number: CLW
MOQ: 1
Price: 15000-35000 per unit
Payment Terms: 50% Deposit,Balance should be paid before ship out
Supply Ability: 10unit per month
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, OHSAS18001, CCC
Model NO.:
HOWO
Type:
Self-propelled
Transmission Type:
Manual
Emission Standard:
Euro 4
Fuel:
Diesel
Payload:
5T
Use:
Burnishing
Cleaning Process:
Acid Claening\Pickling
Condition:
New
Wheel:
6
Name:
Mobile Street Clean Sweeper
Usage:
Urban
Feature:
Mobile
Transport Package:
Bulk, RO-RO, Frame, Container
Specification:
5950× 1995× 2380
Trademark:
Howo
Origin:
China
HS Code:
8503009090
Supply Ability:
500PCS/Week
Customization:
Available
After-sales Service:
12 Month
Warranty:
10 Year
Shipping Cost:
Contact The Supplier About Freight And Estimated Delivery Time.
Secure Payments:
Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Manufacture:
Chengli Special Automobile Co.,Ltd
Packaging Details:
Nude
Supply Ability:
10unit per month
Highlight:

HOWO Road Sweeper Truck

,

Road Sweeper Truck Self Propelled

,

High Pressure Street Sweeper Vacuum Truck

Product Description
HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck

The HOWO Road Sweeper Truck is a series of specialized sanitation vehicles manufactured on the robust Sinotruk HOWO chassis. These trucks are highly popular for urban and industrial cleaning due to their combination of sweeping, vacuum suction, and high-pressure washing capabilities.

The HOWO street sweeper is a "sweep and suck" or "washing and sweeping" type vehicle, meaning it integrates multiple cleaning actions:

  • Sweeping: Uses 4 mechanical sweeping brushes (two on each side) to loosen debris and sweep it toward the center of the vehicle.
  • Vacuum Suction: A powerful centrifugal fan driven by a dedicated Auxiliary Engine (often Cummins or a Chinese brand like Jiangxi Isuzu) creates strong suction to lift the debris into the garbage bin.
  • High-Pressure Flushing (on high-pressure models): Utilizes a high-pressure water pump and front/side spray nozzles to deeply clean the road surface, remove tough dirt, and suppress dust during sweeping.
Chassis Brand:
SINOTRUK HOWO
Sweeping Mechanism:
Rotary brushes + vacuum suction
Tank Material:
Corrosion-resistant Stainless Steel
Water Tank:
For dust suppression and high-pressure washing
Dust/Sewage Tank:
For collecting solid and liquid waste
Applications:
Municipal roads, industrial zones, airports, ports, parking lots
HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck Technical Sheet
Parameter Category Item Typical Specification Range Notes
Vehicle Dimensions & Weight Overall Dimensions (L×W×H) 8,000 to 9,500 mm×2,500 mm×2,800 to 3,300 mm Varies significantly by model/capacity.
Gross Vehicle Weight (GVW) 16,000 kg to 18,000 kg
Curb Weight 11,000 kg to 13,000 kg
Driving Type 4×2 Left-Hand Drive (LHD) or Right-Hand Drive (RHD) available.
Chassis & Engine Chassis Model SINOTRUK HOWO Series (e.g., ZZ1187M501GE1)
Main Engine Power 160 HP to 300 HP Diesel.
Emission Standard Euro 3, Euro 5, or Euro 6 Dependent on market and year of manufacture.
Auxiliary Engine Cummins or equivalent (e.g., 77 HP to 170 HP) Powers the sweeping/suction system independently.
Transmission Manual (e.g., 6 to 8 forward speeds+1 or 2 reverse)
Tire Specification 10.00R20 or 295/80R22.5 Steel wire tires.
Superstructure & Capacity Dust/Garbage Bin Volume 7 to 8 m3 (Cubic Meters) Often made of stainless steel.
Cleaning Water Tank Volume 3 to 8 m3 (Cubic Meters) Often made of stainless steel.
Tank Material Stainless Steel (304) or Carbon Steel
Garbage Bin Discharge Angle ≥45° to 50° Hydraulic self-unloading.
Cleaning Performance Max. Sweeping Width 3.5 m to 4.1 m Typically with 2 sweeping brushes on each side (4 total).
Sweeping Speed 3 to 20 km/h Operational range.
Sweeping Efficiency ≥95% to 98%
Max. Suction Particle Size 110 mm to 120 mm
High-Pressure Cleaning Included on models with "High-Pressure" feature. Front spray bar, side nozzles, and sometimes a handheld high-pressure hose reel.
Water Flow Rate (Cleaning) ∼150 L/min to 180 L/min Varies by high-pressure pump specification.
Pressure (Cleaning) ∼10 MPa Varies by high-pressure pump specification.
System & Control Sweeping System Type 4 sweeping brushes + rear suction nozzle Driven by hydraulic motors (speed adjustable).
Clutch Continuously variable speed automatic clutch Connects auxiliary engine to fan.
Control System Cab-mounted electronic/PLC control switches Centralized operation.
Hydraulic Components Gear pumps, hydraulic motors, solenoid valves (often imported brands) Controls sweeping, suction, and bin/door lifting.
Specification Details
Drive Type 4x2 or 6x4
Cab Type HW76 (single sleeper with A/C)
Engine Power 190–336 HP (Euro IV, V, or VI options)
Transmission 6-speed / 10-speed manual
Gross Vehicle Weight 16,000–25,000 kg
Water Tank Capacity 6,000 – 9,000 Liters (Stainless Steel)
Dust Tank Capacity 5,000 – 8,000 Liters (Stainless Steel)
Sweeping Width 3.2 – 3.8 meters
Brush System 2 or 4 rotary disc brushes (hydraulic)
Main Brush Cylindrical central brush
Vacuum Fan High-power suction (hydraulic driven)
Control Mode In-cabin electric control + manual backup
Cleaning Speed 3–20 km/h
Auxiliary Engine ISUZU or WEICHAI diesel engine

HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck details :

Sweeping: Rotating mechanical brushes (typically four, two on each side) are driven by hydraulic motors to loosen debris and sweep it towards the center of the vehicle.

Vacuum Suction: A powerful, maintenance-free centrifugal fan creates a strong negative pressure air flow. This vacuum effect draws the loosened dirt, dust, and debris through a wide suction nozzle (sucking disc) into the large capacity dust/garbage bin.

High-Pressure Washing (on certain models): An integrated high-pressure water pump and nozzle system can spray water onto the road surface and curbs. This water serves to suppress dust during sweeping and can also be used for intensive high-pressure washing of heavily soiled surfaces, including curb faces and road barriers

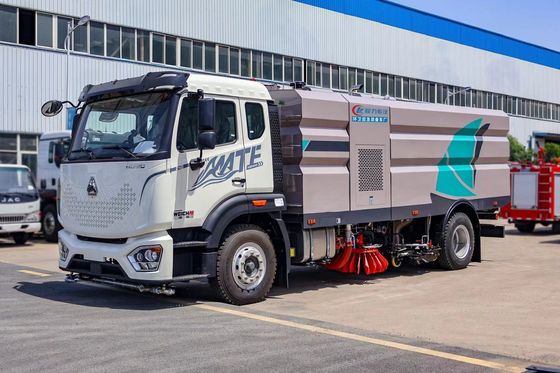

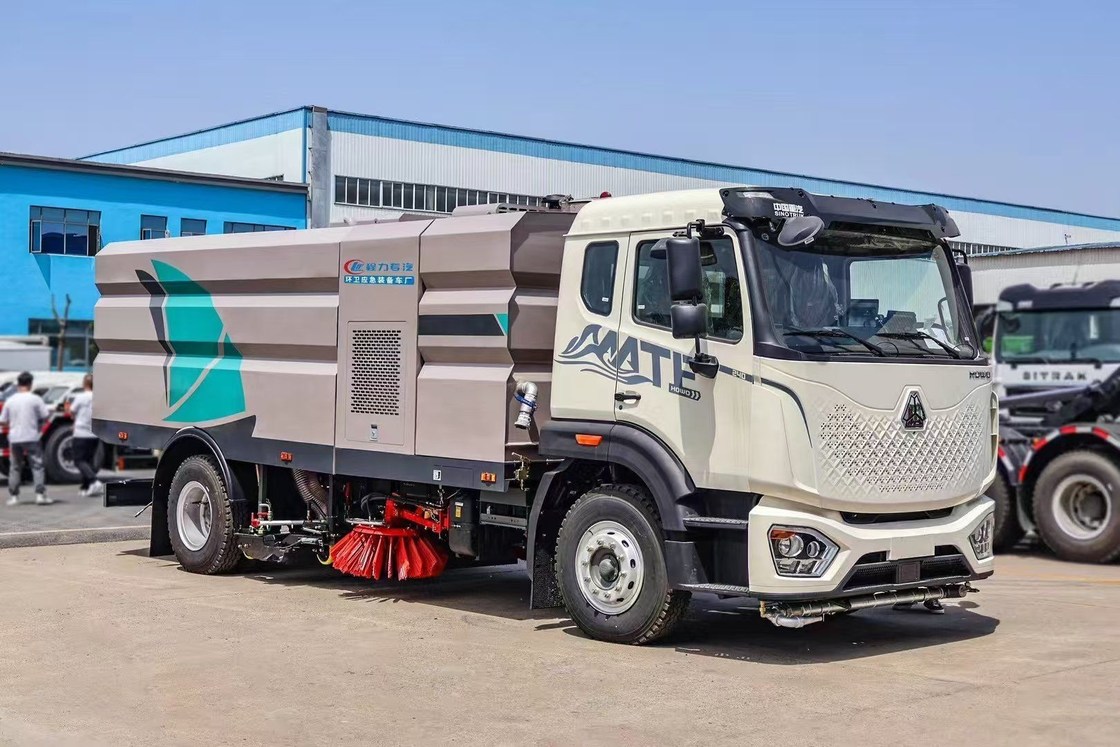

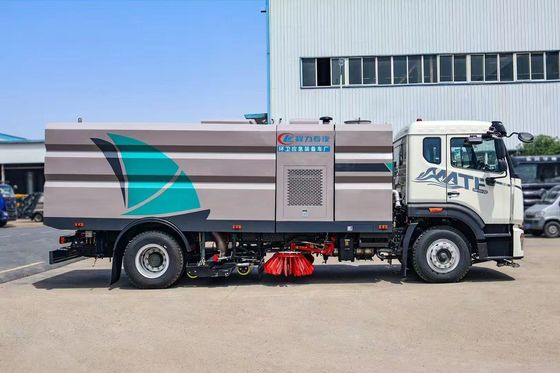

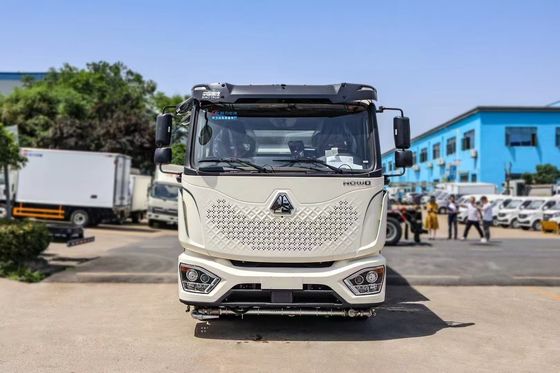

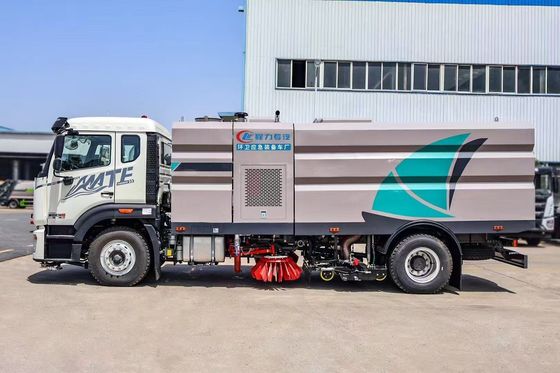

HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck 0 HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck 1 HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck 2
About Chengli Special Automobile Co., Ltd:

Location: Headquartered in Suizhou City, Hubei Province, China, often referred to as the "Capital of China's Special Purpose Vehicles."

Establishment: Founded in September 2004.

Scale: The company is consistently ranked among the Top 500 Private Enterprises in China. The CLW Group has a significant industrial footprint, covering a large area, with multiple production bases and numerous subsidiaries.

Designation: It is a large-scale automobile manufacturing enterprise designated by the China Ministry of Industry and Information Technology to produce special purpose vehicles and is identified as an auto and auto parts export base by the Hubei Provincial Government.

Brand: Its registered trademark is "CHENGLIWEI" (CLW).

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

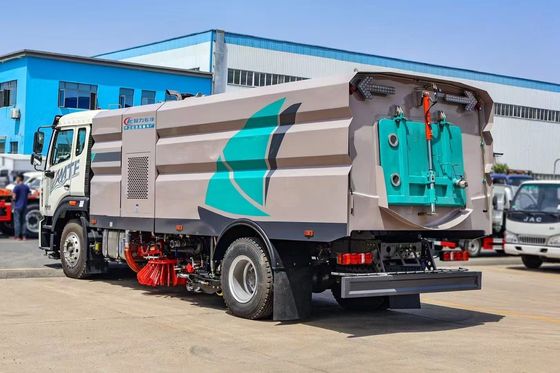

HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck 3
Chengli Special Automobile Co., Ltd Overseas Market

Chengli reports exporting its "CHENGLIWEI" (CLW) brand trucks to over 80 overseas countries and regions globally. Its primary export markets are concentrated in:

  • Africa: This is a major market, with exports to countries including Nigeria, Ghana, Tanzania, Zambia, Congo (Brazzaville & Kinshasa), Ethiopia, Sudan, Algeria, Libya, Mali, Niger, Mozambique, and South Africa.
  • Southeast Asia & East Asia: Key Asian export destinations include the Philippines, Vietnam, Myanmar, Thailand, Cambodia, Laos, Malaysia, Indonesia, Bangladesh, and Korea.
  • Central Asia & CIS: The company has a presence in countries formerly part of the Soviet Union and its neighbors, such as Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, and Mongolia.
  • Middle East: Important markets in this region include the United Arab Emirates (UAE) and Saudi Arabia.
  • South America & The Caribbean: Exports have reached countries like Peru, Bolivia, Chile, and Trinidad and Tobago.
  • Oceania: The company also exports to countries such as Australia and New Zealand.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing

HOWO Road Sweeper Truck Self Propelled High Pressure Street Sweeper Vacuum Truck 4
