| Brand Name: | Foton Aumark |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

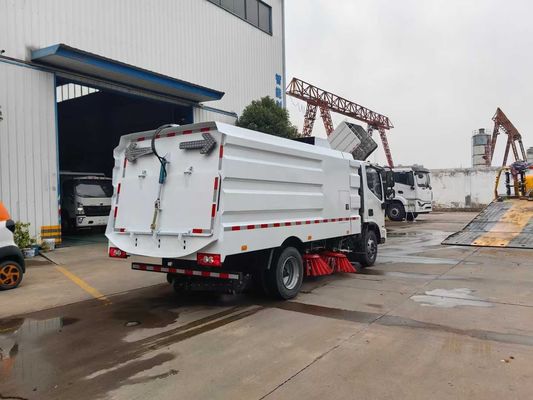

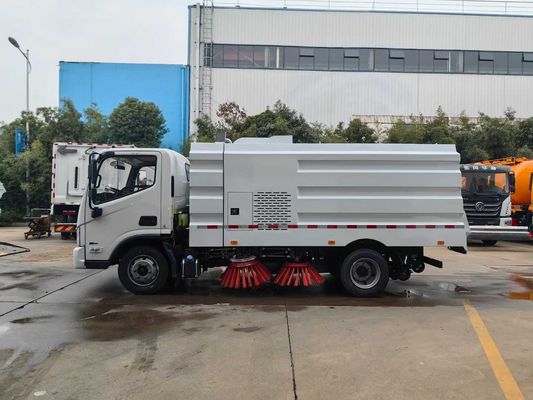

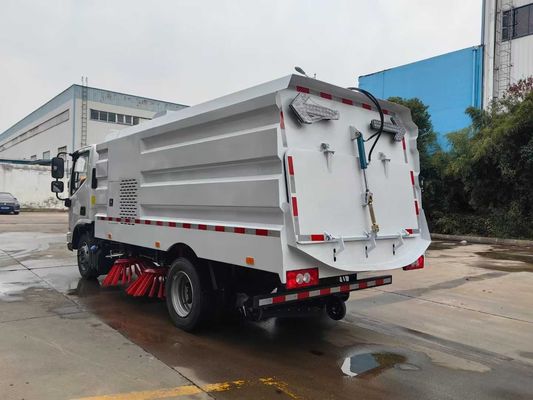

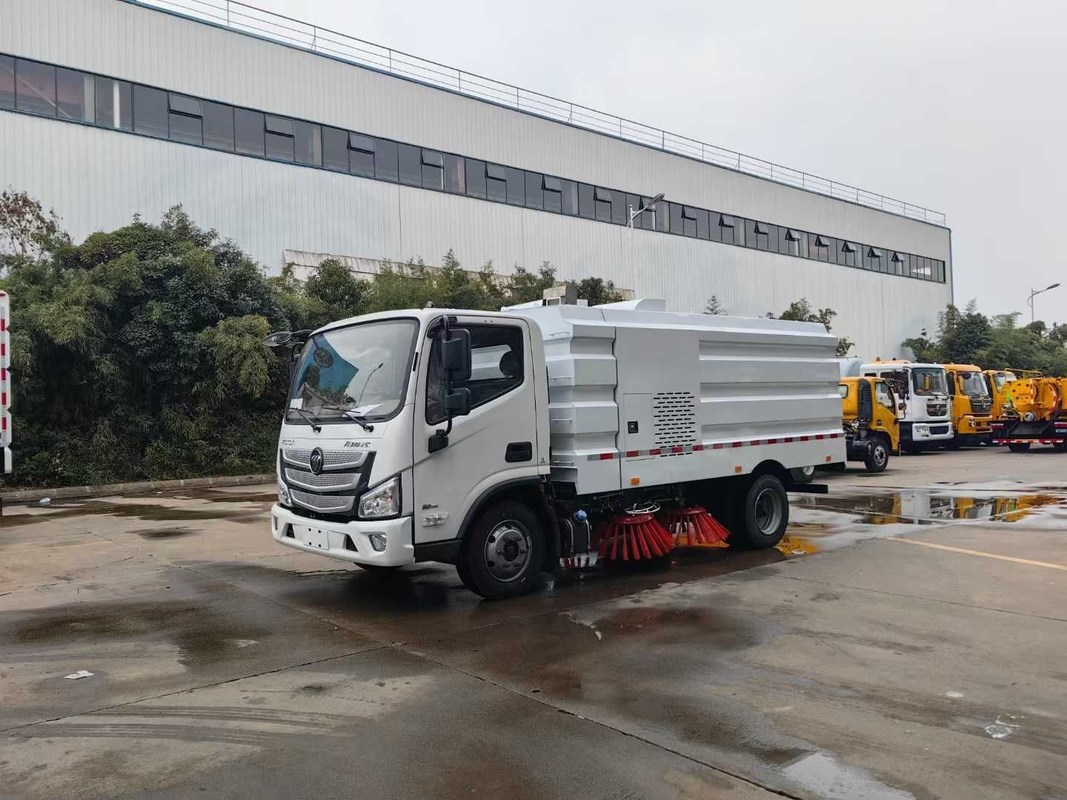

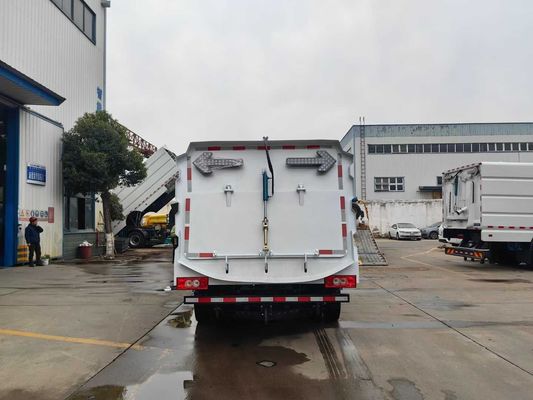

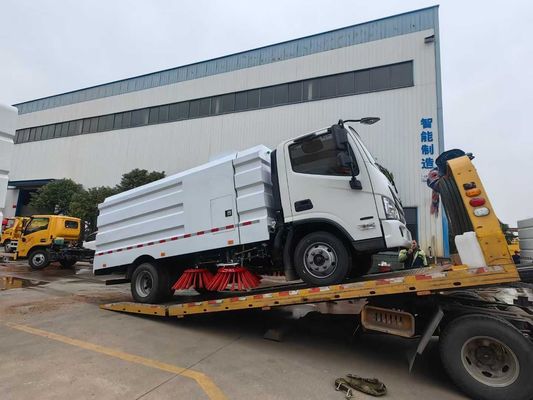

Foton Aumark High Pressure Road Washing Sweeping Truck
The Foton Aumark High Pressure Road Washing Sweeping Truck is a multi-functional municipal vehicle designed for street cleaning, combining sweeping, vacuuming, and high-pressure water washing capabilities.
Multi-Purpose Cleaning: It integrates functions for sweeping, collecting trash, and high-pressure water washing/dust suppression.
Dual Engine System: Typically features a main chassis engine for driving and an auxiliary engine (often Cummins or JMC) to power the sweeping and vacuuming system, ensuring consistent cleaning power regardless of the vehicle's speed.
Sweeping Mechanism: Usually includes two or four-disc type brooms for moving debris into the path of the suction nozzle.
Suction System: Utilizes a powerful air blower and a full-floating suction nozzle to vacuum up debris and particles, with a large maximum suction particle size (e.g., ≥100mm).
High-Pressure Washing: Equipped with a high-pressure water system, including a plunger pump and various nozzles, to effectively clean road surfaces and suppress dust.
Tank Capacity: These trucks come in various sizes, but a common configuration might feature a combined capacity for a Garbage/Dust Tank and a Water Tank, for example, 8 CBM (cubic meters) total capacity (6m3 garbage tank + 2,000 L water tank). Tanks are often made of stainless steel for corrosion resistance.
Chassis: Built on a Foton Aumark chassis (often 4×2 drive mode), known for medium-duty applications, usually featuring a diesel engine.
Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmentally protective vehicles, combined with suction type and road sweeping. It's mainly applied to city streets, municipal squares, large-scale mechanized factory, etc. The truck chassis can be any brand in China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, etc.
Foton Auman Snow Plow Road Street Sweeper And Cleaning Wash Truck Price Technical date:
| Parameter | Typical Range / Example | Notes |
|---|---|---|
| Chassis Brand | Foton Aumark | The base truck chassis. |
| Driving Type | 4x2 | Typically left-hand drive (LHD) or right-hand drive (RHD) based on market. |
| Gross Vehicle Weight (GVW) | ≈7,000 kg to 12,000 kg | Depends on total capacity. |
| Overall Dimensions (L x W x H) | ≈6800×2200×2600 mm (Varies significantly) | Length, width, and height. |
| Wheelbase | ≈3360 mm to 3800 mm | Common Aumark wheelbase options. |
| Engine (Chassis) | Cummins ISF series (e.g., F3.8) or similar | Diesel engine. |
| Chassis Engine Power | ≈150 HP to 240 HP | Power output. |
| Emission Standard | Euro III, Euro IV, Euro V, or Euro VI | Depends on the target market regulations. |
| Transmission | Manual (e.g., ZF 6-speed) | |
| Brake System | Air Brake System (with ABS/ESC) | Often full air brakes for heavy-duty variants. |
| Maximum Speed | ≈90 km/h to 105 km/h | |
| Parameter | Typical Range / Example | Notes |
| Total Tank Volume | ≈8 m3 to 10 m3 (8,000 to 10,000 Liters) | Total capacity for debris and water. |
| Debris/Dust Bin Volume | ≈4 m3 to 8 m3 | Capacity for collected waste. Often stainless steel. |
| Water Tank Volume | ≈1,500 L to 4,000 L | Capacity for dust suppression and washing. Often stainless steel. |
| Auxiliary Engine | Dedicated engine (e.g., JMC, Cummins, or similar) | Powers the fan, hydraulic pump, and high-pressure system. |
| Sweeping Width | ≈2.6 m to 3.8 m | Maximum effective cleaning path. |
| Cleaning Speed | ≈3 km/h to 20 km/h | Operational cleaning speed. |
| Cleaning Efficiency | ≈95% to 98% | Percentage of debris collected. |
| Sweeping System | 4 sweeping brushes + central suction nozzle | Standard configuration often includes front sweeping brushes. |
| High-Pressure System | Included for road washing and surface cleaning. | |
| High-Pressure Rating | ≈150 bar (or higher) | Pressure of the washing jet. |
| Suction/Blower | High-pressure centrifugal fan | Driven by the auxiliary engine, often with an automatic clutch. |
| Vehicle Parameters | |||
|---|---|---|---|
| Vehicle model | EHY5090TSLE | Vehicle brand | HUAYI |
| Vehicle dimension | 5400X1950X2500mm | Curb weight | 4495kg |
| Dust tank volume | 4500L | Water tank volume | 1000L |
| Chassis Parameters | |||
| Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG |
| Overall dimensions | 3050x1750x2050mm | Wheel base | 3300mm |
| Cab | Single row cab,allowable 3 passengers,cab can be flipped | ||
| Engine | Dongfeng Yuchai YC4FA120-33 | ||
| Horse power | 120hp | ||
| Emission | Euro 3 | ||
| Displacement | 1999ml | ||
| Tire | 7.50R16 steel wire tire | Transmission | 5 speed forward 1 reverse |
| Steering device | Power assisted steering | Steering wheel | Left hand drive |
| Road Sweeper Parameters | |||
| Dust tank volume | 4500L | Water tank volume | 1000L |
| Sweep width | 3000m | Cleaning speed | 3-20km/h |
| Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% |
| Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm |
| Unloading angle | 45° | Unloading height | 970mm |
| Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | ||
Foton Aumark High Pressure Road Washing Sweeping Truck details :
| Feature | Typical Specification Range | Notes |
|---|---|---|
| Chassis Brand | Foton Aumark (various models: S, BJ1065, BJ1078, etc.) | |
| Drive Type | 4×2 | |
| Engine | Cummins ISF2.8L or F3.8L (Euro III to Euro VI) | Often a Cummins engine. |
| Max Power | 85 kW to 115 kW (approx. 115 to 156 hp) | Varies by engine model and emission standard. |
| Transmission | Manual or ZF 6-Speed AMT | |
| Gross Vehicle Mass (GVM) | 6,000 kg to 8,500 kg (up to 18,000 kg for heavier duty models) | Varies significantly by model. |
| Overall Dimensions (L x W x H) | Approx. 5,800 mm×2,000 mm×2,500 mm (Smaller Models) up to 8,300 mm×2,500 mm×3,300 mm (Larger Models) | Varies by specific superstructure. |
| Wheelbase | Approx. 3,300 mm to 4,500 mm | |
| Brake System | Air Brake with ABS/ASR/ESC/AEBS (on newer Euro models) | Often WABCO components. |
| Feature | Typical Specification Range | Notes |
| Total Tank Capacity | Varies, typically 5 CBM to 10 CBM (5,000 L to 10,000 L) | This volume is usually split between the Water Tank and the Dust/Garbage Tank. |
| Water Tank Capacity | 1,000 L to 2,000 L (or more) | For high-pressure washing and dust suppression. |
| Dust/Garbage Tank Capacity | 4 CBM to 8 CBM (or more) | For collecting swept debris. Often stainless steel. |
| Auxiliary Engine | Dedicated engine (e.g., Cummins, Isuzu, or JMC) | Powers the fan, vacuum, and hydraulic systems. |
| Sweeping Width | 2.8 m to 3.5 m (approx.) | |
| Cleaning Speed | 3 to 20 km/h | Operational speed. |
| Max Cleaning Capacity | Up to 60,000 m2/h | Theoretical max capacity. |
| Cleaning Efficiency | ≥95% or ≥98% | |
| Maximum Suction Particle Size | Up to 120 mm | |
| High Pressure System | Includes high-pressure water pump and spray bar(s). | For deep cleaning and road washing. |
About Chengli Special Automobile Co., Ltd
Parent Group: It is a core enterprise of the CLW Group (Chengli Automobile Group Co., Ltd.).
Establishment: The company was established in 2004.
Headquarters: It is headquartered in Suizhou City, Hubei Province, China, which is known as the capital of China's special purpose vehicles.
Business: Chengli is a large-scale manufacturer designated by the Chinese government for various types of special vehicles. It operates as a diversified group involved in R&D, manufacturing, sales, and other related businesses.
Main Products: The company produces a vast range of special vehicles (often exceeding 800 types), including:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Global Reach
Export Volume: The company exports to more than 80 overseas countries and regions globally, indicating a broad international presence.
Key Regions: Their main overseas markets are concentrated in:
Export Focus and Products
Chengli leverages its comprehensive product line to meet diverse international needs. Specific products frequently mentioned in export cases include:
International Strategy and Certification
Independent Export Qualification: Chengli holds independent export qualification, streamlining its international sales process.
Certifications: To comply with various international requirements, their vehicles have passed certifications such as ISO9001, ISO14001, OHSAS18001, 3C (China Compulsory Certification), ASME, and ADR, which are necessary for pressure vessels and hazardous goods transport in global markets.
Government Recognition: The company is recognized by the Hubei Provincial Government as an auto and auto parts export base.
Customization and Chassis: They work with major global and Chinese chassis manufacturers (like ISUZU, SINOTRUK, FOTON, JAC) to build customized special vehicles, which allows them to meet the diverse technical standards (e.g., LHD or RHD, different emission standards) required by different countries.
International Participation: Chengli actively participates in international exhibitions and summits to promote its brand and products.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
