| Brand Name: | Dongfeng Kinland |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

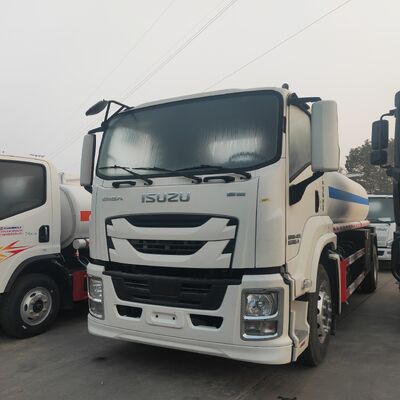

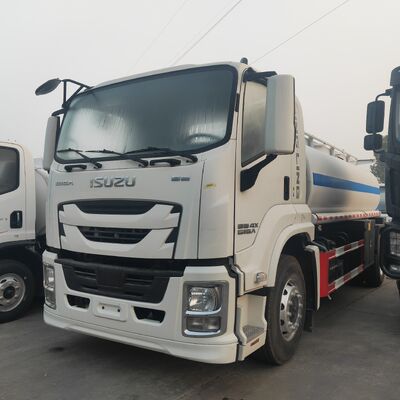

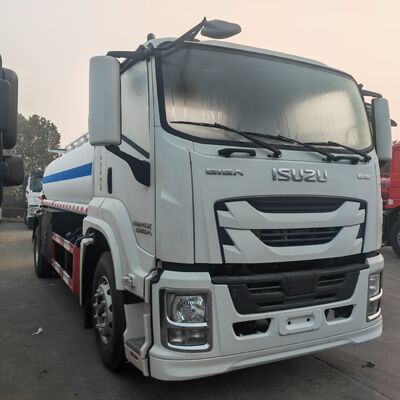

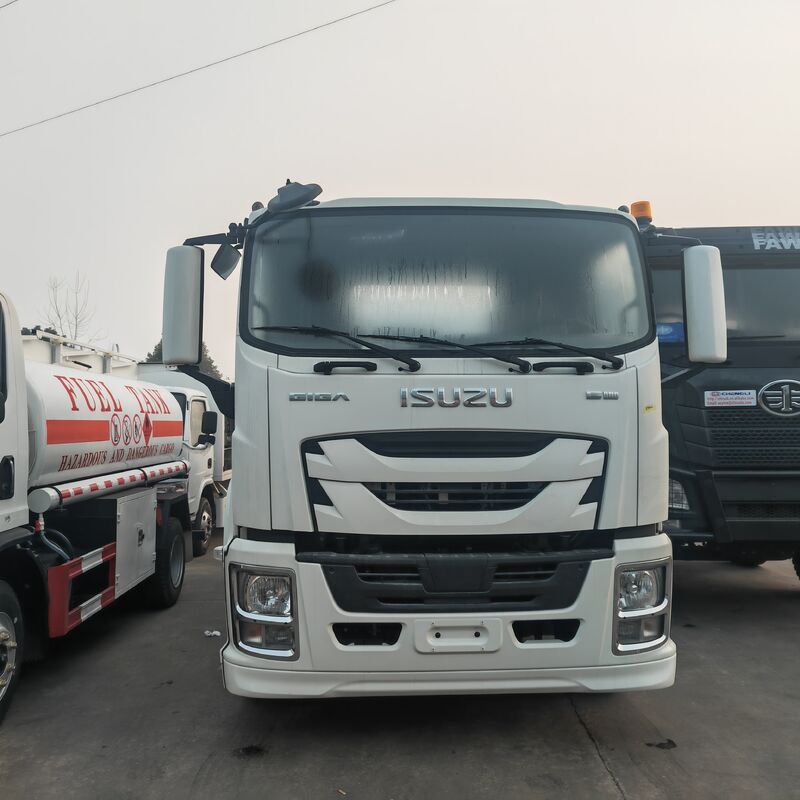

ISUZU Giga Fuel Truck Tanker Mobile Gasoline Diesel Filling Truck
ISUZU Giga Fuel Tanker Mobile Refueling Truck is a heavy-duty "mobile gas station" designed for the high-volume transport and precise dispensing of diesel, gasoline, and other petroleum products. Built on the rugged Giga chassis, it is widely used in mining, large-scale construction sites, and remote logistics where stationary filling stations are unavailable.
Chassis & Powertrain (The Foundation)
The Giga series (often the VC61 model) is Isuzu's flagship heavy-duty platform, known for extreme durability and fuel efficiency
Engine Options: Typically equipped with the 6UZ1 (9.8L, 350–380 HP) or the 6WG1 (15.6L, 420–520 HP) turbocharged diesel engines.
Transmission: Paired with FAST 9-speed or 12-speed manual gearboxes, or the Smoother-G AMT (Automated Manual Transmission).
Axle Configuration: Available in 6x4 (10-wheeler) for medium-heavy loads or 8x4 (12-wheeler) for maximum capacity (up to 35,000L).
Cabin: Features a luxury "Giga" cabin with air-suspension seats, a sleeper bunk for long-distance hauls, and modern ergonomics to reduce driver fatigue.

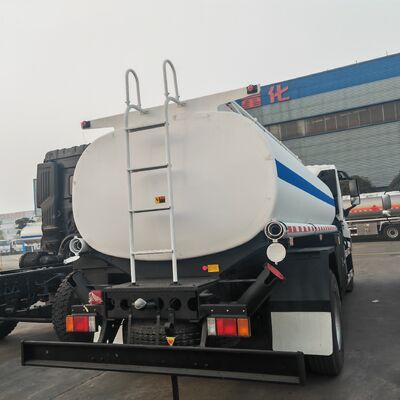

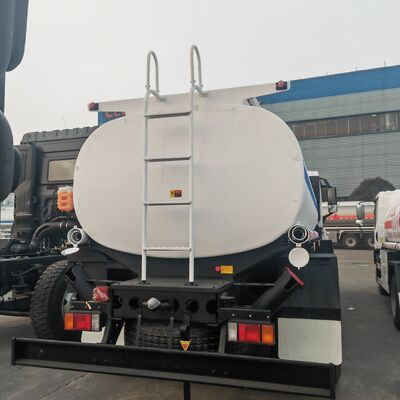

Tank Superstructure
The tank is engineered for safety and versatility, allowing for the transport of multiple fuel types at once.
Capacity: Typically ranges from 15,000 to 30,000 Liters
Material: Carbon Steel (Q235): Standard, durable, and cost-effective.
Aluminum Alloy (5083): Lighter weight (increases payload) and naturally corrosion-resistant.
Compartments: The tank can be divided into 2 to 5 independent compartments, each with its own discharge valve, allowing the truck to carry both gasoline and diesel without mixing.
Internal Baffles: "Anti-wave" plates are welded inside the tank to prevent fuel from surging during sudden braking, maintaining vehicle stability
Mobile Filling & Dispensing System
The "Mobile Filling" designation refers to the specialized equipment that allows the truck to refuel other vehicles directly.
Fuel Dispenser: A digital, computer-controlled unit (like those at a gas station) that calculates volume, unit price, and total cost.
Hose Reel: A 15–20 meter automatic retractable hose reel with a high-speed fueling nozzle.
Pump System: A high-capacity gear pump driven by the truck's PTO (Power Take-Off) from the engine.
Flow Meter: High-precision meters (tax-controlled or mechanical) to ensure accurate delivery and billing.
Safety & Compliance
Because these trucks carry hazardous materials, they are equipped with extensive safety features:
Emergency Shut-off Valve: A pneumatic "bottom valve" that automatically seals the tank if a pipe is damaged.
Static Grounding: Includes a copper grounding reel and static-conductive tires to prevent sparks.
Vapor Recovery (Optional): Captures gasoline fumes during loading to protect the environment and prevent fire risks.
Fire Extinguishers: Usually two 8kg dry powder extinguishers mounted in quick-access brackets.
Front Exhaust: On many models, the exhaust pipe is front-mounted with a spark arrestor for extra fire safety.
ISUZU Giga Fuel Truck Tanker Mobile Gasoline Diesel Filling Truck Technical sheet :
| Feature | Specification |
| Gross Vehicle Weight (GVW) | 25,000 – 33,000 kg |
| Tank Volume | 20,000 Liters (approx. 5,300 Gallons) |
| Max Speed | 90 – 95 km/h |
| Fueling Speed | 30 – 50 Liters per minute |
| Brake System | Dual circuit full air brakes with ABS |
