| Brand Name: | Dongfeng |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

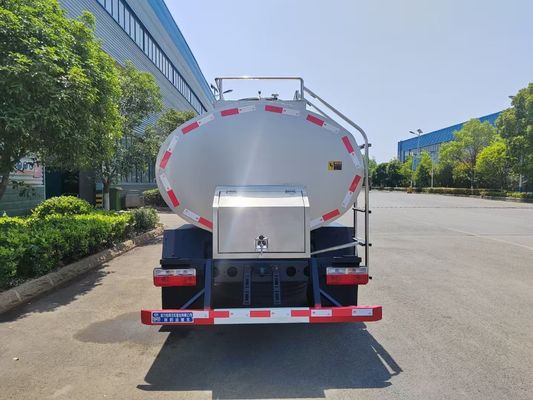

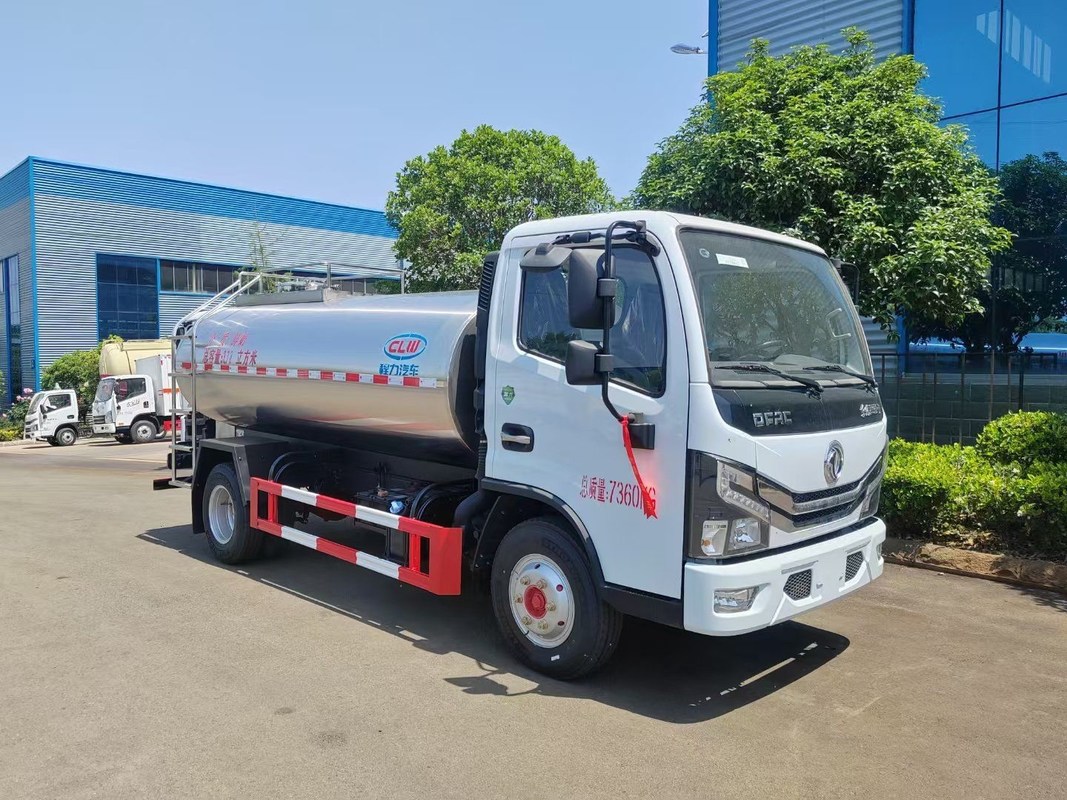

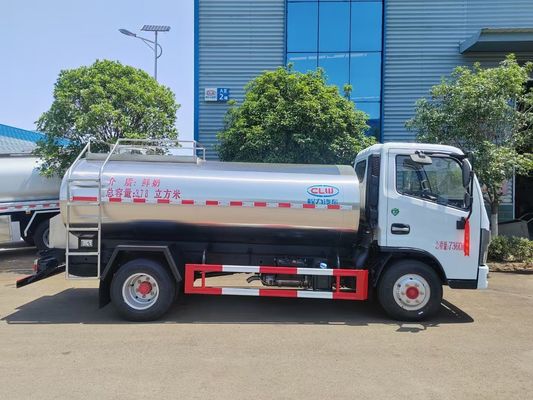

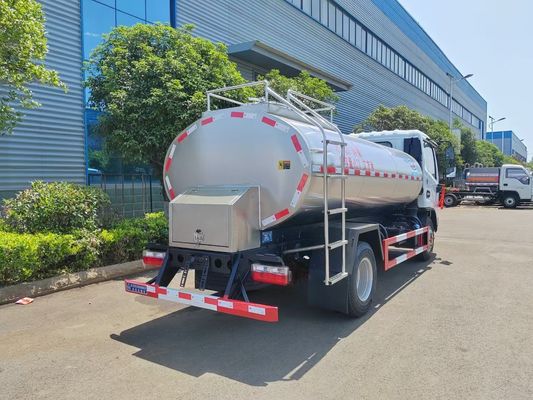

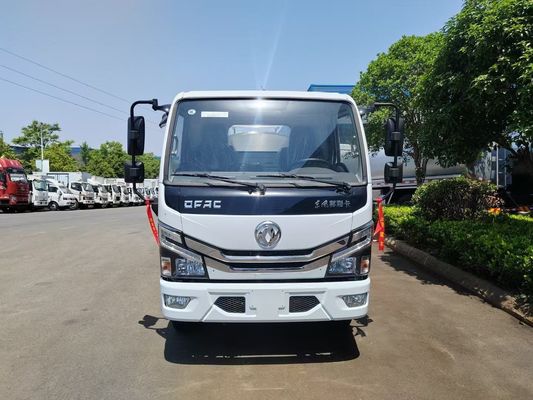

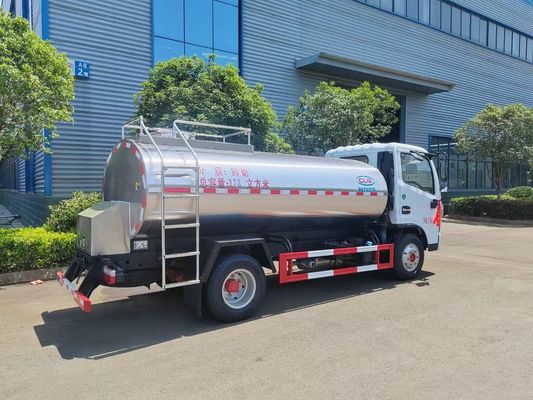

The Dongfeng DFAC (Dongfeng Automobile Co., Ltd.) Stainless Steel Tanker Truck with a 5,000 Liters (5 cubic meters) capacity is a specialized vehicle primarily designed for the safe and hygienic transport of fresh milk and other liquid foods.
Milk truck (also called milk transport truck, milk tanker truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.
We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.
Milk tank truck can be divided into many compartments to transport different types of drinkable liquid, milk, ewe's milk…Every compartments are equipped with CIP cleaning function.
Milk tank truck can be equipped with stainless steel pump, pump in pump out function.
| Parameter | Typical Value Range | Notes |
|---|---|---|
| Model | DFAC 5000L Milk Tanker | Varies slightly by manufacturer (e.g., CSCMTT005) |
| Overall Dimensions (L x W x H) | 5,995*2,000*2,350 mm (approx.) | Dimensions can vary based on specific cabin and tank design. |
| Gross Vehicle Weight (GVW) | 7,360 kg | Total permissible weight. |
| Kerb Weight (Curb Weight) | 3,630 kg−3,900 kg | Weight of the empty vehicle. |
| Rated Payload | ≈4,000 kg to 5,000 kg | Equivalent to 5,000 Liters of milk (density ≈1.03 kg/L). |
| Parameter | Typical Value Range | Notes |
| Chassis Brand | Dongfeng (DFAC) | |
| Drive Type | 4*2 | 6-wheel setup. |
| Wheelbase | 3,300 mm or 3,360 mm | Determines stability and turning radius. |
| Engine Brand | CHAOCHAI, YUCHAI, or YUNNEI | Common Chinese engine options. |
| Engine Power | 90 HP(66 kW) to 120 HP | Power output is adequate for this capacity light truck. |
| Displacement | 3.7 L (approx.) | Varies by specific engine model. |
| Emission Standard | Euro III, Euro IV, or Euro V | Dependent on the country of sale/export. |
| Transmission | Manual, 5 or 6 forward gears | |
| Tire Specification | 7.00R16 | Typically 6 tires plus one spare. |
| Max. Speed | 90 km/h to 105 km/h | |
| Parameter | Specification | Requirement/Function |
| Tank Volume | 5,000 Liters (5 m³) | |
| Tank Shape | Oval Horizontal/Elliptical | Optimal for low center of gravity. |
| Inner Tank Material | Stainless Steel SUS 304-2B (Food Grade) | Essential for hygiene and corrosion resistance. |
| Inner Tank Thickness | 3.0 mm to 4.0 mm | Ensures structural integrity. |
| Insulation Layer | Polyurethane Foam (PU) | |
| Insulation Thickness | 80 mm to 100 mm | High-density foam for maximum thermal retention. |
| Outer Cladding | Stainless Steel (e.g., SS304 or mirror Austenite SUS 304) | Protection for the insulation layer. |
| Temperature Change | ≤1∘C to 2∘C per 24 hours | Standard for fresh milk transport. |
| Compartments | Typically 1 (or more upon request) | Includes anti-wave plates/baffles inside. |
| Cleaning System | CIP (Cleaning-In-Place) System | Features a 360∘ rotating cleaning ball/nozzle in the tank. |
| Manhole | DN500 mm with food-grade rubber seal | For inspection and maintenance. |
| Discharge Outlet | Stainless steel ball valve and pipeline | Designed for hygienic, food-grade transfer. |
| Accessories | Stainless steel rear climbing ladder, vent valve, stainless steel pump (optional). | |
| Can Milk Truck Dongfeng (5,000 litres) | ||
| General | Chassis Brand | Dongfeng |
| Overall Dimension | 5995 * 2050 * 2350 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 95 Hp (70 KW) | |
| Displacement | 3856 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand or right han drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 6.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres ( 1,300 gallons) |
| Tank Material | Stainless Steel or Aluminum | |
| Pump | Stainless steel pump | |
| All standard accessories: English manual, tool kit... | ||
| Optional | ** Tank material could be stainless steel, aluminum... ** It can be divided into many compartments. |
|
| Feature | Detail | Benefit |
|---|---|---|
| Chassis | Dongfeng DFAC 4x2 | A widely used, economical, and robust light-duty chassis. |
| Engine | Diesel, typically CHAOCHAI, YUCHAI, or YUNNEI | Power output generally ranges from 90 HP to 120 HP, providing sufficient power for the 5-ton capacity. |
| Transmission | Manual (5 or 6 forward gears) | Reliable and easy to maintain. |
| Overall Size | Compact size, often around 5,995*2,000*2,350 mm (L x W x H) | Ideal for navigating both urban and rural collection routes. |
| Layer/System | Material & Specification | Function/Advantage |
| Inner Layer (Product Contact) | Food Grade Stainless Steel SUS 304-2B (typically 3.0 mm−4.0 mm thick) | Non-porous, corrosion-resistant, and finely polished (sanitary finish) to prevent bacterial growth and is easy to clean. |
| Insulation Layer (Middle) | Polyurethane (PU) Foam (typically 80 mm−100 mm thick) | Provides superior thermal insulation. The standard requirement is that the milk temperature change should be ≤1∘C to 2∘C over a 24-hour period. |
| Outer Layer (Cladding) | Stainless Steel or other durable, weather-resistant material. | Protects the insulation foam from weather and external damage. |
| Baffles/Partitions | Internal anti-wave plates/partitions (sometimes butterfly-shaped heads) | Minimizes milk sloshing during transit, improving vehicle stability and preventing undue stress on the tank structure. |
| Welding | CNC fully automatic argon arc welding | Ensures seamless, strong welds with minimal contaminants, which are polished to meet international food-grade hygiene standards. |
| Feature | Detail | Benefit |
| CIP (Cleaning-In-Place) System | Equipped with an automatic cleaning system and 360∘ rotating spray heads/balls. | Allows for thorough, hands-free internal sanitation using cleaning solutions, eliminating cleaning blind spots and ensuring hygiene for the next load. |
| Discharge & Manhole | Food-grade stainless steel valve and piping, DN500 manhole with airtight seal. | Ensures hygienic loading, unloading, and a sealed environment to prevent external contamination. |
| Compartments (Optional) | The 5000L tank is often a single compartment but can be customized into multiple small compartments. | Allows for transporting different batches or types of liquid food simultaneously without mixing. |
| Rear Operation Box | Houses the discharge port, cleaning connections, and often a pump (optional). | Provides a protected, clean area for all milk transfer operations, usually sealable. |
| Stainless Steel Pump | Can be optionally equipped with a stainless steel self-priming pump. | Facilitates efficient and hygienic self-loading and unloading of the liquid. |
Headquarters: Located in Suizhou City, Hubei Province, China, which is widely known as "the capital of China's special purpose vehicles."
Scale: It is a massive enterprise, often cited as the largest special automobile manufacturer in Central China. The CLW Group as a whole covers an enormous area (often cited as over 3,000 acres) and employs tens of thousands of staff.
Foundation: The company's predecessor was established in September 2004.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
1. Global Reach
Chengli trucks are exported to more than 80 overseas countries and regions worldwide. Their main export destinations cover:
2. Export Focus and Products
Chengli's international success is driven by the demand for their core product lines, which often address municipal and infrastructure needs:
3. Strategy and Support
Certifications: Their adherence to international standards (like ISO certifications, ASME, and ADR) is a key component of their export strategy, ensuring their products meet the regulatory requirements of various countries.
After-Sales Service: They emphasize professional post-sale support, including:
Partnerships: They actively seek international cooperation, such as joint initiatives with major Chinese chassis manufacturers like Dongfeng to jointly explore overseas markets.
Active Participation: Chengli frequently participates in international trade shows and summits in their target regions (e.g., LPG summits in Tanzania and Asia) to showcase products and engage with local partners.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
