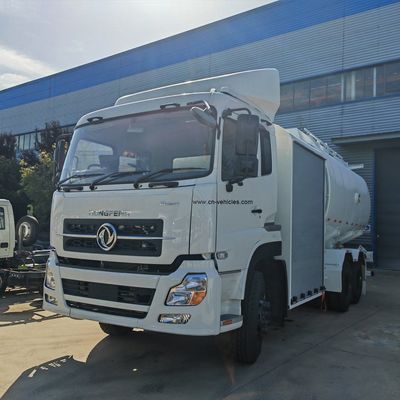

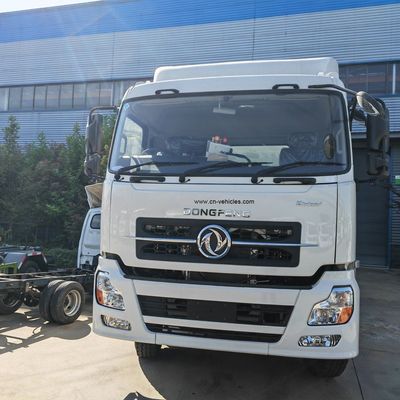

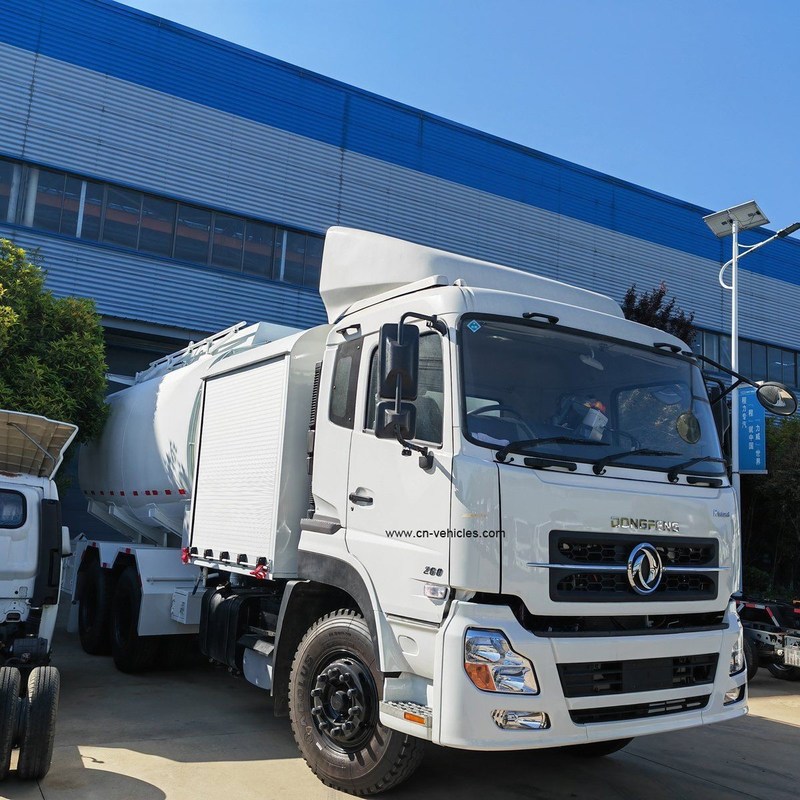

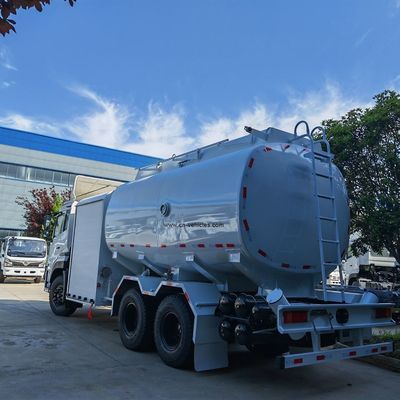

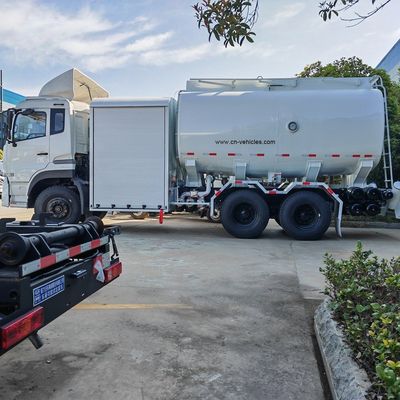

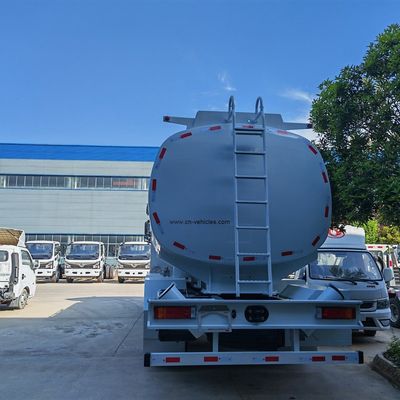

Dongfeng Kinland Aircraft Fuel Truck 8CBM Plane Aviation Refueling Trucks

Dongfeng Kinland Plane Aviation Helicopter Jet Aircraft Refueling Truck

Dongfeng Kinland Aircraft Fuel Truck (Aviation Refueling Truck) is a specialized vehicle designed for the safe and precise refueling of aircraft at airports. The 8 CBM (cubic meters) capacity model is a common size, typically used for refueling smaller aircraft (like general aviation planes or helicopters) or for quick-response duties.

aircraft refueling truck consists of the chassis, the fuel tank assembly, fuel system, the pneumatic control system, the hydraulic system, the control room assembly, the instrument panel, the electrical system.

This type of gas vehicle is mainly composed of chassis, tank, the former cabinet, the oil pumping system, pneumatic control system, electrical systems, suitable for the airport, and from the air refueling station and airport apron, aircraft refueling. At the same time, the fuel oil and water, and accurate measurement of fuel gas.

Main function:

• Fuel - the fuel in the fuel tank of the car, after filtering, metering, and injecting the aircraft fuel tanks or other oil equipment through the reel or platform;
• The fuel in the fuel tank of an aircraft fuel tank is pumped back to the oil tank through the filter and measurement;
• The fuel in the tank of the car;
• Mobile pump station;
• Oil - in the bottom of the tank with an external device.

1.1 The Purpose and Application Range of the Refueller.

It is mainly used for refuelling and defuelling the aircraft which equipped underwing refuelling interface in airport.

1.2 Working condition

This refueller is used on flat concrete or bitumen road in airport.

Temperature : -30°C~+46°C

Relative humidity:≤ 95%(25°C)

1.3 Main Function

1. Underwing refuelling--after filtering and measuring, the fuel oil in the refueller's oil tank is filled into the plane's oil box(or other containers) by the hose and underwing nozzle on the reel or platform.
2. Defuelling--after filtering and measuring, the fuel oil in the plane's oil box(or other containers) is filled into this refueller's oil tank by the hose and underwing nozzle on the reel or platform..
3. Cycling--use pump to stir oil in a cycling way.
4. Loading-- use the oil pump and other equipments to fill fuel oil into the tank through the bottom of it.

This type of gas vehicle is mainly composed of chassis, tank, the former cabinet, the oil pumping system, pneumatic control system, electrical systems, suitable for the airport, and from the air refueling station and airport apron, aircraft refueling. At the same time, the fuel oil and water, and accurate measurement of fuel gas.

Main function:

Announcement volume 5000-15000L, a set of gravity / pressure / meet the various types of aircraft refueling and fighter aircraft, civil aircraft, Boeing, airbus. The body of the tank and the pipe are made of stainless steel (the optional aluminum alloy). (optional imported or domestic filter), can be customized according to customer requirements.

Dongfeng Kinland Aircraft Fuel Truck 8CBM Plane Aviation Refueling Trucks Technical sheet :

Dongfeng Kinland Aircraft Fuel Truck 8CBM Plane Aviation Refueling Trucks Application:

General Aviation (GA) and Smaller Airfields
This is the most common and appropriate application for an 8 CBM truck:

• Refueling of Light Aircraft: It is perfectly sized for servicing general aviation aircraft, such as piston-engine planes, small turboprops, and light business jets that require smaller volumes of fuel.
• Regional and Small Airports: At regional airports, Fixed-Base Operators (FBOs), or private airfields where the volume of wide-body commercial aircraft is low or non-existent, the 8 CBM truck provides sufficient capacity without the high operating cost of a larger vehicle.

2. Helicopter Refueling
Helipads and Remote Locations: The smaller, more agile chassis is highly suitable for refueling helicopters, both at main airport helipads and in more confined or remote locations, such as military bases or offshore support areas (if modified for rugged terrain).

3. Quick-Response and Specialty Fueling
Emergency or Spot Fueling: Its size allows it to be used as a quick-response unit to refuel aircraft in specialized areas or positions on the apron that are hard for larger refuelers to access.

Avgas (Aviation Gasoline) Transport: While typically used for Jet A-1 (aviation kerosene), an 8 CBM truck may be dedicated to transporting and dispensing Avgas (the fuel for piston-engine aircraft), which is required in much smaller volumes.

4. Military and Training Bases
Military Aircraft: The smaller capacity is useful for refueling light military transports, trainer aircraft, or fighter jets that require a lower volume per refueling cycle compared to heavy cargo planes.

Training Operations: It is often used at flight schools and air force training bases where the size of the aircraft fleet and daily fuel consumption are modest.
