| Brand Name: | Shacman F3000 |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

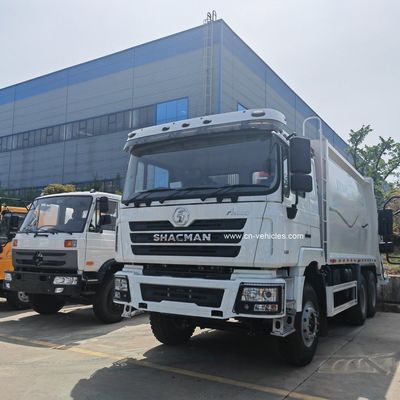

Shacman F3000 18cbm Waste Compactor Compressor Garbage Collector
The Shacman F3000 Waste Compactor Garbage Truck with an 18 cubic meter (cbm) compressor body is a heavy-duty sanitation vehicle built on the robust Shacman F3000 chassis. It is designed for efficient, large-volume waste collection and transport.
The compactor garbage truck is composed by sealed garbage van, hydraulic system, operating system. The vehicle is fully sealed type, compression and dumping by self. When it working, the sewage is all into the sewage box, so that thoroughly solved the problem of secondary pollution in the process of garbage transport, to avoid the inconvenience to people. The key parts adopt imported parts, it has great pressure, good sealing, convenient operation and safety etc. Rear hanging garbage barrel and overturned garbage bucket are optional.
Shacman F3000 18cbm Waste Compactor Compressor Garbage Collector technical sheet:
| Category | Component / Parameter | Typical Specification |
|---|---|---|
| I. Vehicle General | Truck Model | SHACMAN F3000 Compactor Truck |
| Body/Tank Volume | 18 CBM (Cubic Meters / ≥15,000 Liters) | |
| Drive Type | 4*2 or 6*4 | |
| Allowable Persons in Cab | 2 or 3 | |
| Max. Speed | 80−90 km/h | |
| Overall Dimensions (L x W x H) | Approx. 8,500−9,500*2,500*3,450 mm (Varies by build) | |
| Gross Vehicle Weight (GVW) | Approx. 19,000−25,000 kg | |
| Curb Weight | Approx. 10,000−12,500 kg | |
| II. Chassis Specifications | Chassis Brand / Series | SHACMAN F3000 |
| Engine Brand | WEICHAI (WP series) or CUMMINS | |
| Engine Horsepower | 300−380 HP (e.g., 336 HP) | |
| Engine Displacement | Approx. 9.7−10.8 L | |
| Emission Standard | Euro II / Euro III / Euro IV (Varies by market) | |
| Gearbox | FAST brand (Manual) | |
| Gear Speeds | 10 Forward, 2 Reverse (e.g., 10JSD180) | |
| Clutch | Φ430 Diaphragm Type | |
| Front Axle Capacity | 7.5 Ton (MAN Technology) | |
| Rear Axle Capacity | 13 Ton (MAN Technology Double Reduction) | |
| Wheelbase | 4,500 mm (for 4*2) or ≈4375+1400 mm (for 6*4) | |
| Tire Specification | 12.00R20 or 11.00R20 | |
| Fuel Tank Capacity | ≈400 Liters (Aluminum or Steel) | |
| Braking System | Dual-circuit compressed air brake with ABS | |
| Cabin | F3000 Flat/Lengthened Roof, Hydraulic Suspension, A/C, Sleeper (Optional) | |

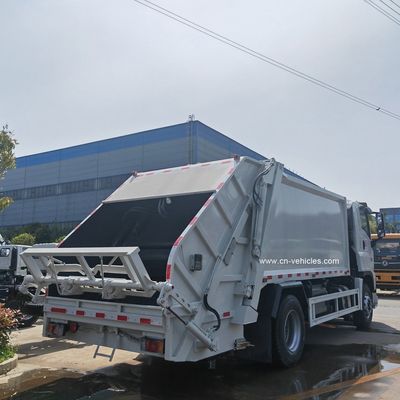

| III. Compactor Body & Performance | Compactor Type | Rear Loader Compression |
| Compactor Body Material | High-strength carbon steel (e.g., Q235, T420) | |
| Body Material Thickness | Sides ≈4 mm, Bottom ≈5 mm (Varies) | |
| Compression Ratio | ≈3:1 to 6:1 (Volume reduction) | |
| Control System | Electro-hydraulic control (Cab control, External control, Remote control) | |
| Hydraulic System Pressure | ≈20 MPa | |
| Filler Volume | ≈1.5 to 2.0 CBM | |
| Filling Cycle Time | ≤25 seconds | |
| Discharge Time | ≤40−50 seconds | |
| Sewage Tank | Included (to prevent secondary pollution) | |
| Rear Loading Device | Optional attachments for different bins (e.g., hanging bucket mechanism) |
| Chassis Description | |
|---|---|
| Cab | One and half row non-longhead cab can turn over |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 4500 |
| Number of axles | 2 |
| Front axle | 5000 |
| Rear axle | 10000 |
| Traction system | 4*2 |
| Tire specification | 10.00R20 |
| Tire quantity | 6+1 |
| Engine Description | |
| Engine manufacture | WEICHAI Engines |
| Engine model | YWD615 69 |
| Emission standard | Euro 2 |
| Exhaust/output | 9726ml/247kw |
| Horse power | 336hp |
| Up-parts Description | |
| Material of garbage container | Q235 carbon steel |
| Operation control system | Electrically hydraulic control |
| Swing arm operating system | Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc. |
| Especially suitable for | Short distance transportation, sanitation department cleaning, transportation, etc. |
| Swing arm maximum pivot angle | 145° |
| Hoisting time | 30s |
| Unloading time | 50s |
Shacman F3000 Waste Compactor Garbage Truck 18cbm Compressor Garbage Collector Compaction and Operation Features
Compaction Ratio: Typically around 6:1 or ≥2.5 in compressed ratio (meaning it reduces the trash volume to about 1/3 to 1/6 of its original size).
Compaction Method: Rear-loading type, using a high-strength hydraulic system (blade and carriage) to crush and compress waste into the body.

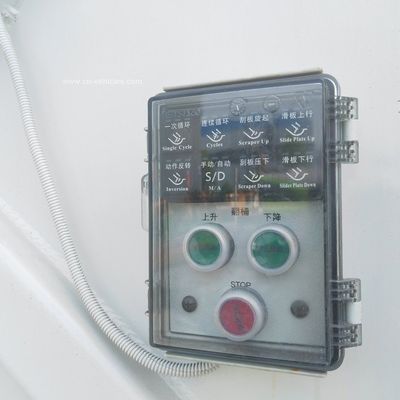

Control System: CAN-bus or Electrically Hydraulic Control, often featuring multiple control points:
Sewage Tank: Includes a dedicated tank (e.g., 250L + 150L) to collect liquid waste squeezed out during the compaction process, preventing spillage on the roads.

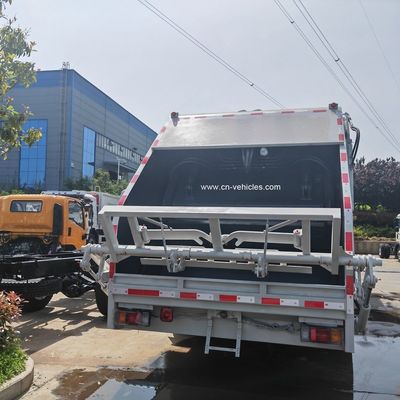

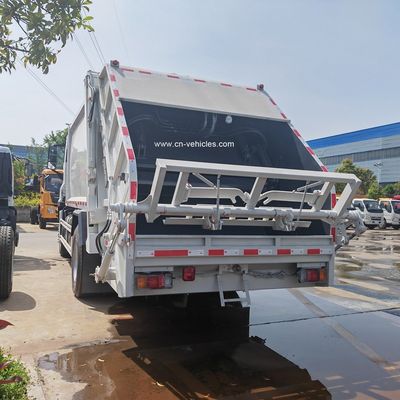

Collection Mechanism: The rear filler can be equipped with various mechanisms to handle different waste containers:
Chassis and Safety Highlights (F3000 Series)
The Shacman F3000 series is renowned for:
About Chengli Special Automobile Co., Ltd
Main Product Categories
Chengli is known for its wide and diverse product portfolio, manufacturing over 800 types of special vehicles. Their main focus areas include:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
High-Demand Products: The company's most sought-after export products align with its domestic bestsellers, primarily focusing on Sanitation Trucks (garbage trucks, water bowsers, sweepers) and Energy/Logistics Vehicles (fuel tankers, LPG tankers).
Customization and Adaptation: Chengli emphasizes its ability to customize vehicles for different global market requirements, including adapting to local chassis brands (like ISUZU, SINOTRUK, FOTON) and adhering to various international standards (e.g., ASME and ADR certifications for pressure vessels like LPG and fuel tanks).
Government and Institutional Sales: The company frequently secures major tender orders and cooperates with government and municipal sanitation departments in various developing nations, often supplying large fleets of garbage trucks, water tankers, and maintenance vehicles.
International Collaboration: Chengli is actively engaged in international partnerships, including announced strategic cooperation with foreign companies to co-develop and supply new-energy vehicles (EVs) for global markets.
Service and Support: To back its exports, the company stresses its efforts to provide overseas after-sales service and has established supply chains for spare parts.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
