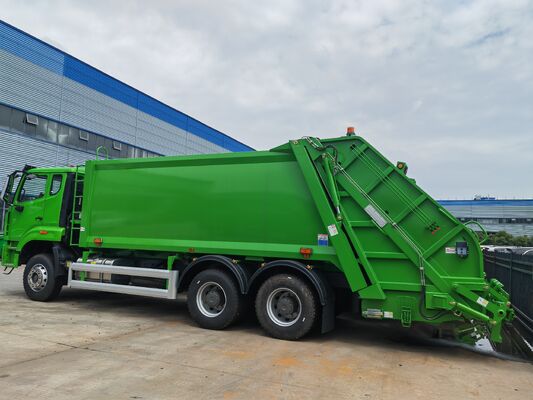

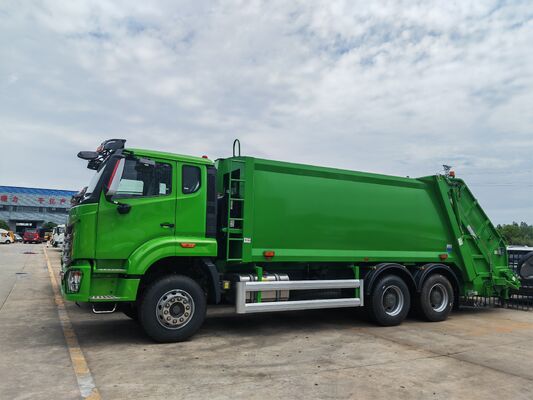

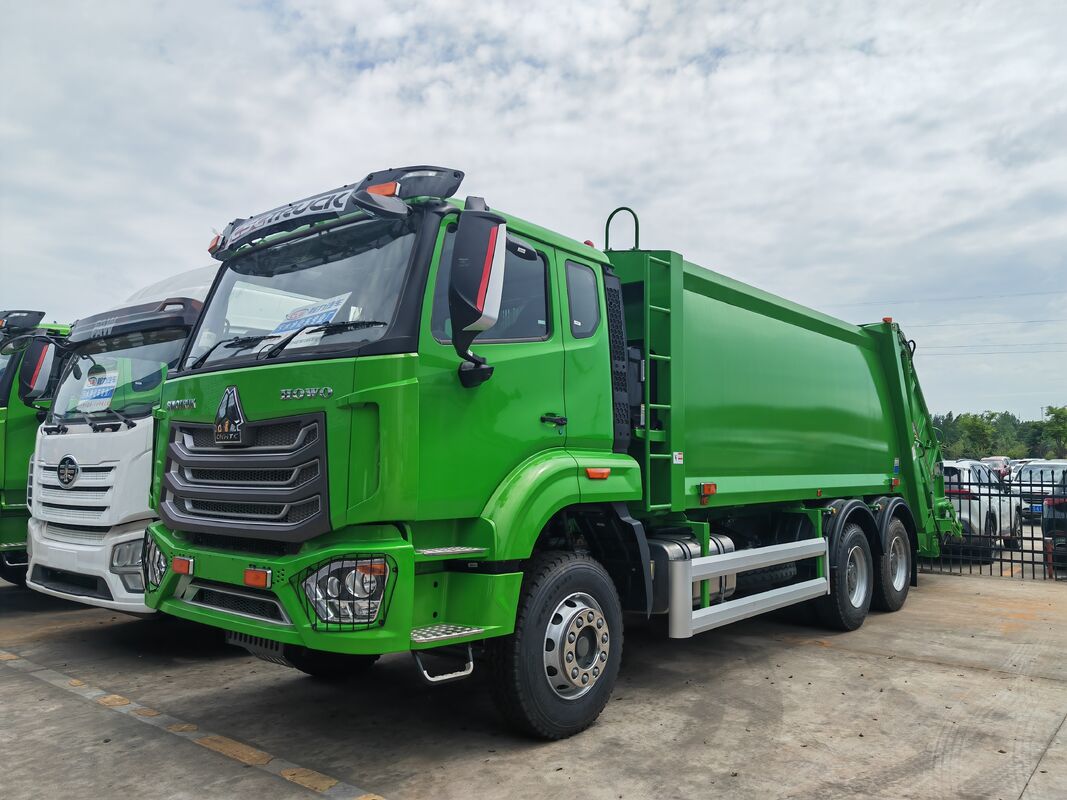

HOWO 6x4 20 CBM Garbage Compactor Truck 20m³ Refuse Collector Vehicle

The HOWO 6x4 20m³ Compactor Garbage Truck is a heavy-duty, high-efficiency municipal waste management solution designed for large-scale urban sanitation, industrial zones, and residential waste collection. Built on the world-renowned SINOTRUK HOWO heavy-duty chassis and combined with an advanced hydraulic compression system, this vehicle delivers an exceptional compaction ratio, massive payload capacity, and unmatched durability in the harshest working environments.

With a 20 Cubic Meter (CBM) high-strength body, this truck significantly reduces the number of trips to disposal sites, lowering operational costs and maximizing daily efficiency for municipal authorities and private waste contractors alike.

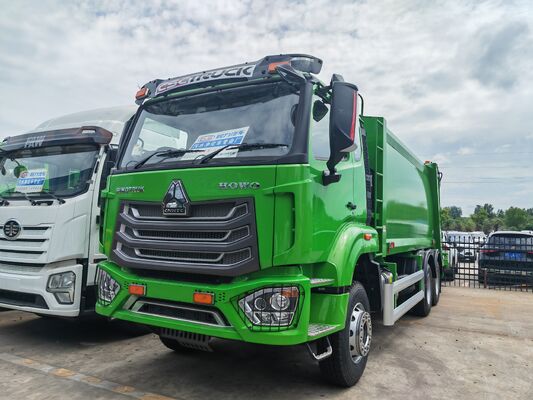

1. Premium HOWO Chassis:

   Powered by a high-torque, fuel-efficient engine (Weichai/SINOTRUK options) with a heavy-duty 10-speed transmission, ensuring powerful gradeability and stable performance under full load.

2. High Compaction Efficiency:

   Features an optimized bidirectional compression mechanism achieving a compaction ratio of up to 1:2.5 to 1:3, allowing more waste to be loaded per cubic meter.

3. Superior Durability:

   The collection body is fabricated using premium high-strength carbon steel (Q345/Q235), with a reinforced floor and sides to resist corrosion, abrasion, and high impact.

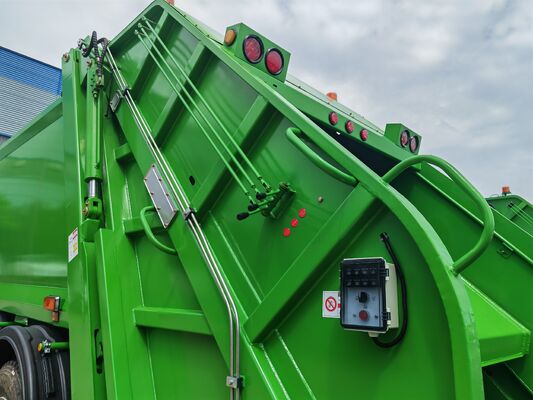

4. Dual Operation Systems:

   Equipped with an automated PLC electronic control system inside the cabin and manual hydraulic levers at the rear, ensuring safe, redundant, and user-friendly operations.

5. Eco-Friendly Anti-Leakage Design:

   Outfitted with a large-capacity sewage collection tank and high-density rubber seals at the tailgate joint to eliminate secondary pollution and wastewater drippings during transit.

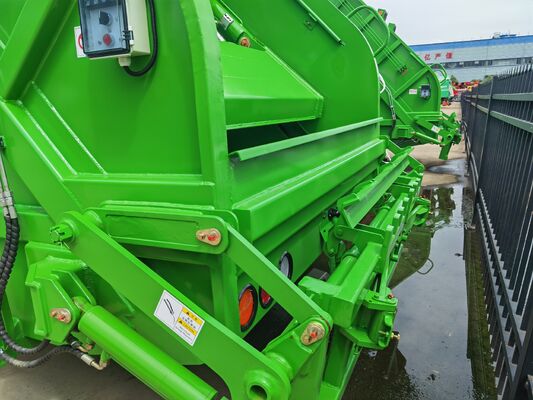

6. Versatile Rear Lifter Mechanisms:

   Fully customizable rear flipping devices to seamlessly match standard 120L, 240L, 660L, and 1100L plastic or steel dustbins, skip buckets, or manual loading.

• Drive Type: 6x4 (10 Wheels, Rear-Double Axle Drive)
• Steering: Left Hand Drive (LHD) / Right Hand Drive (RHD) optional
• Gross Vehicle Weight (GVW): 25,000 kg
• Wheelbase: 4350+1350 mm / 4600+1350 mm
• Tires: 12.00R20 Radial steel tires (10 units + 1 spare)
• Braking System: Dual-circuit compressed air brake with ABS

• Engine Brand: WEICHAI / SINOTRUK
• Horsepower: 290 HP / 336 HP / 371 HP
• Emission Standard: Euro 2 / Euro 3 / Euro 5 / Euro 6 (As per target market requirement)
• Transmission: HW19710 manual gearbox, 10 forward speeds and 2 reverse speeds

• Body Volume: 20cbm(20 Cubic Meters / 20 CBM)
• Hopper Volume: 2.0 - 2.5 CBM
• Compactor Cycle Time: 5 seconds (Single filling cycle)
• Discharging Time: 40 seconds (Ejection push-out)
• Hydraulic System Pressure: 16 - 20 MPa
• Ejector Plate: High-strength steel plate with nylon slide blocks for smooth, maintenance-free operation.

To fit localized waste management infrastructures across different regions, we offer multiple rear lifting systems:

• Triangle Bucket / Flip-over Tipper: For manual shoveling and loose waste.
• Standard Dustbin Lifter: Suited for standard 120L/240L/660L plastic bins.
• Large Swing Arm / Skip Lifter: For large steel community waste skips.

We provide comprehensive export-grade logistics protective solutions to ensure your vehicle arrives in perfect condition:

• Shipping Modes: Roll-on/Roll-off (RORO) ship or Bulk Cargo vessel.
• Anti-Corrosion Protection: The entire vehicle is sprayed with premium anti-rust wax before shipment to resist salt-water corrosion during maritime transport.





HOWO Waste Removal Compressor Compression Compressed Basement Garbage Truck details :

Design for Low Clearance: The "Basement" designation strongly implies a lower overall height compared to standard HOWO garbage trucks, allowing it to navigate underground facilities.

Full Sealing: The vehicle body is generally fully sealed to prevent leakage of waste and sewage, effectively solving the "secondary pollution" issue during transport, which is crucial in a confined basement environment.

Compaction System: It utilizes a compression system (often rear-loading) to crush and compress the waste, significantly increasing the loading capacity (compression ratio is often ≈ 3:1 to 4:1).

Operation: Features Electrically Controlled Hydraulic (PLC) + Manual Hydraulic control for loading, compaction, and discharge. Operations can often be performed from the cab or an external control panel.

Sewage Collection: Equipped with dedicated sewage water tanks (front and rear) to collect liquid squeezed out during the compression process.

Typical Technical Specifications (Based on smaller/low-profile HOWO models)

About Chengli Special Automobile Co., Ltd

Location: Headquartered in Suizhou City, Hubei Province, China. Suizhou is often referred to as the "City of Special Purpose Trucks."

Establishment: Founded in 2004.

Scale: It is a massive enterprise within the CLW Group, holding rankings such as one of China's Top 500 Private Enterprises and a National High-tech Enterprise.

Business Model: Primarily a manufacturer and exporter of a wide range of custom and specialized vehicles.

• Sanitation Vehicles: Garbage compactor trucks, sewage suction trucks, road sweeper trucks.
• Tankers: Fuel tanker trucks, LPG tanker trucks and storage tanks, water sprinkler/bowser trucks.
• Construction & Utility: Truck-mounted cranes, dump trucks, aerial work platform trucks.
• Emergency Vehicles: Fire fighting trucks, ambulances, wrecker/towing trucks.

4. International Strategy

Customization: They emphasize the ability to tailor vehicles to meet specific international client requirements, including different steering types (LHD/RHD) and local road or regulatory standards.

After-Sales Support: Chengli highlights its commitment to providing overseas after-sales service, including technical training, installation guidance, and spare parts distribution to ensure long-term usability.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd Overseas Market

Export Volume: Chengli products are exported to over 80 countries and regions globally.

Annual Export Revenue: The company has reported significant annual export sales, indicating a strong international presence.

Market Share: Its products, such as sanitation trucks and fuel tanker trucks, hold a strong and important share in the international market, building on their leadership position in the domestic Chinese market.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
