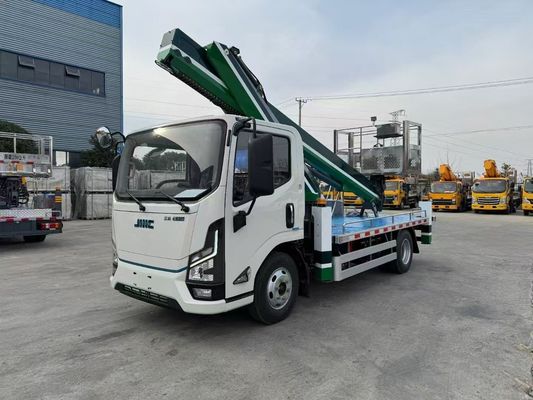

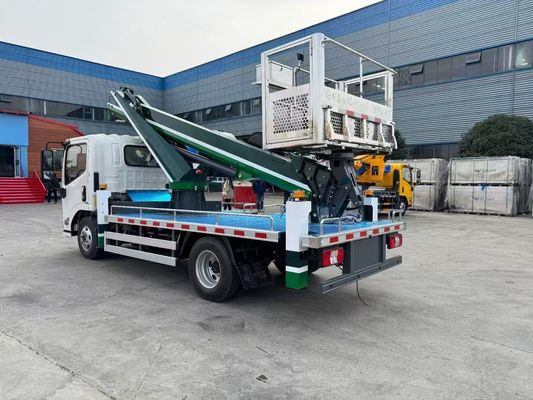

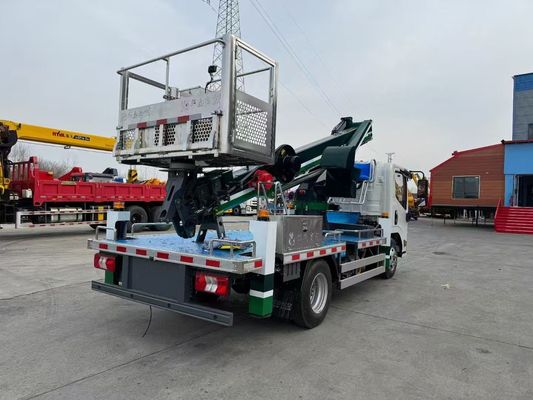

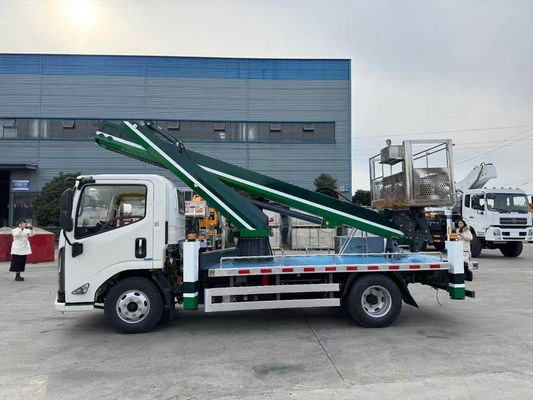

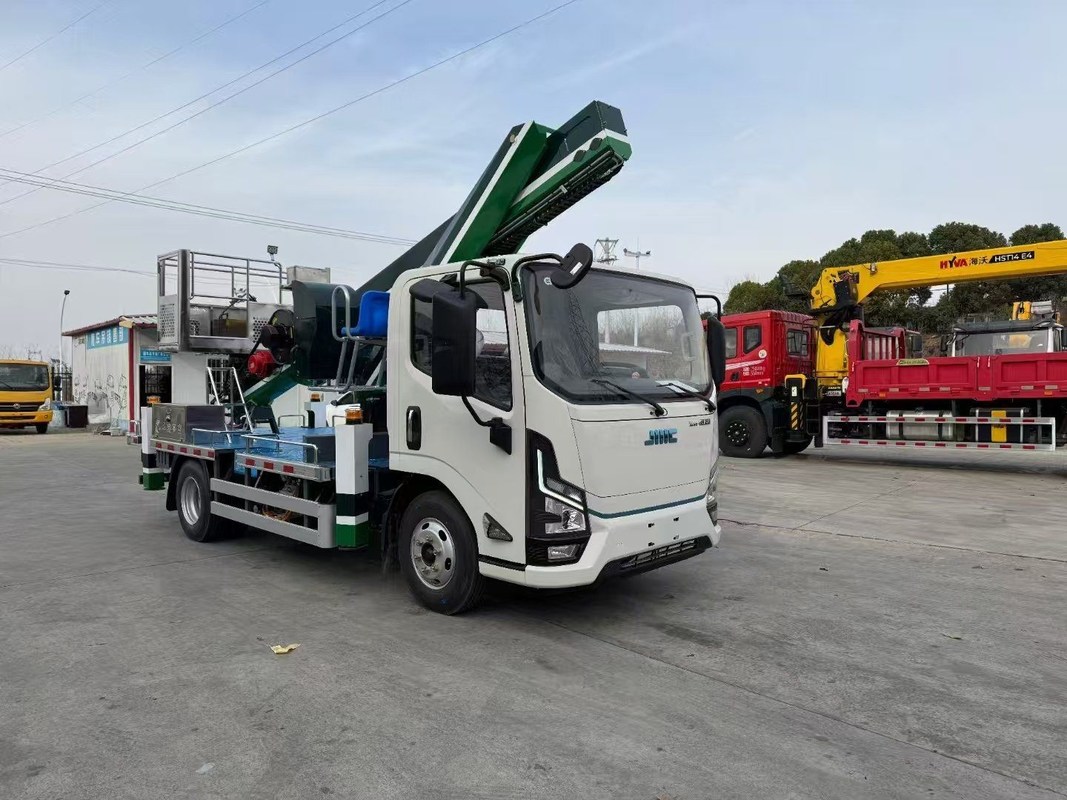

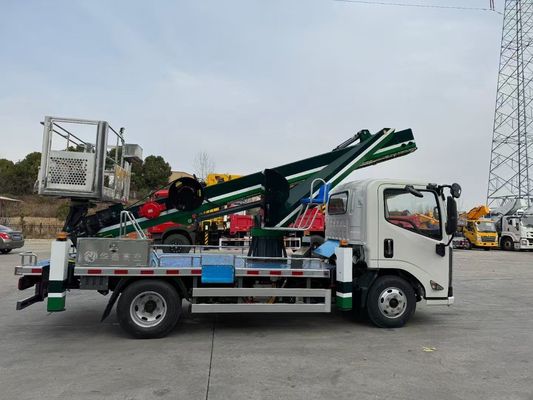

JMC 4X2 Electric Engine Aerial Man Lift Boom Truck 38m Boom Lift Truck

JMC 4X2 Electric Engine Aerial Man Work Lift 38m Boom Lift Truck

While the 38m electric model is unconfirmed, here are the common specifications and features for JMC boom lift trucks in the 14m to 18m range:

Chassis: JMC 4x2 light-duty chassis.

Engine: Typically Diesel, with horsepower around 92 hp to 115 hp (Euro III/V/VI emission standards).

Working Height: Most common heights are 14m, 16m, and 18m.

Boom Type: Available in both Telescopic and Folding Arm (Articulating) designs.

Rotation: Features a 360-degree continuous rotation for the boom/turntable.

Outriggers: Utilizes H-type hydraulic supporting legs for stability, which can often be operated independently.

Safety: Includes essential safety features like an automatic interlocking system between the legs and the boom, emergency stop functions, and operation controls both on the ground and in the working cage.

Platform Capacity: The maximum rated load capacity for the working bucket/platform is typically around 200 kg to 250 kg (allowing for 2 passengers and tools).

Brand: JMC (Jiangling Motors Corporation)

Drive Type: 4×2

Power Source: Full Electric or Plug-in Hybrid (depending on version)

Application: High-altitude operations – maintenance, electrical line repairs, building cleaning, etc.

Boom Lift Type: Telescopic or Articulated (often telescopic for 38m reach)

Chassis Brand: JMC Electric Chassis

Engine Type: Electric Motor

Battery: Lithium iron phosphate (LFP) or ternary lithium (capacity varies by model)

Range: 200–300 km per charge (typical)

Charging Time: 1.5–2 hours (fast charging), 6–8 hours (slow charging)

Transmission: Automatic (electric drive)

Chassis & Base Vehicle Data (Expected)

The base vehicle parameters would be similar to other JMC 4x2 trucks, but the Gross Vehicle Weight (GVW) would be higher to support the heavier boom structure.

Chassis Brand: JMC

Driving Type: 4×2 Left-Hand Drive (LHD)

Overall Dimension (LWH): ≈7,500×2,200×3,500 mm

Gross Vehicle Weight (GVW): ≈7,300 kg to 14,000 kg

Max. Road Speed: ≈80 km/h to 100 km/h

Outrigger System: 4 sets of H-Type or V-H hydraulic outriggers.

Outrigger Span (Lateral): ≈4,000 mm to 5,250 mm

Key Operational Components

Rotation: 360 degrees Continuous Slewing.

Control System: Dual-station controls (in the cage and on the ground), often with Wireless Remote Control capability.

Hydraulic System: Equipped with load-sensitive proportional valves, double-way hydraulic locks, and a motor emergency system.

Safety Features: Automatic interlocking devices for boom/outriggers, emergency stop buttons, and a dangerous work alarm/automatic pressure relief.

JMC 4X2 Electric Engine Aerial Man Lift Boom Truck 38m Boom Lift Truck Details :

Outrigger System: Utilizes a sophisticated H-Type or X-Type hydraulic outrigger system. These legs extend vertically and horizontally to create a very wide, stable base.

Wide Outrigger Span: The lateral and longitudinal spread of the outriggers will be significant (≈5.5m to 6.5m) to safely manage the extreme leverage exerted by the boom.

Safety Interlocks: An automated system prevents the boom from operating if the outriggers are not properly deployed and monitored. Conversely, the truck's road drive system is locked when the boom is deployed.

Advanced Control: Features like load-sensing proportional valves and a moment-limiting system ensure the boom's speed and extension are automatically restricted if the stability envelope is approached.

Emergency Controls: Includes an emergency pump (often manual or small backup electric) to safely lower the platform and retract the boom in the event of total power loss.

Location: Headquartered in Suizhou City, Hubei Province, which is known as the "Capital of China's Special Purpose Vehicles."

Scale: Chengli is a core enterprise of the larger CLW Group (Chengli Automobile Group Co., Ltd.), which has grown into a diversified group company.

It is recognized as a "China Top 500 Private Enterprise."

The group occupies a huge industrial area (over 3,000 acres) and employs more than 10,000 staff, including thousands of technical workers and R&D personnel.

They have a production capacity of over 100,000 special vehicles per year.

Qualifications and Certifications: Chengli holds a vast number of licenses, allowing them to produce a wide array of specialized vehicles, including:

ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and OHSAS 18001/ISO 45001 (Occupational Health & Safety).

China Compulsory Certification (3C).

Production qualifications for Pressure Vessels (A2, C2, C3), Fire Trucks, and Military Standard Certification (GJB9001B-2009).

Major Product Categories

Chengli is primarily a truck body manufacturer, taking chassis from major global and Chinese brands (such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, JMC, etc.) and transforming them into specialty-use vehicles. They produce over 800 types of special trucks.

1. Sanitation and Environmental Vehicles

This is one of their strongest segments, often ranking No. 1 in sales in China for many years.

Garbage Trucks: Compactor trucks, skip loaders, hook lift garbage trucks.

Water & Sewage: Water sprinkler/bowser trucks, vacuum sewage suction trucks, high-pressure cleaning/flusher trucks.

Cleaning: Road sweeper trucks and dust suppression sprayer trucks.

2. Engineering and Aerial Work Vehicles

This includes the category your initial query focused on.

Aerial Platform Trucks (Man Lifts): Telescopic and articulated boom lifts used for high-altitude work.

Truck Mounted Cranes: Straight boom and knuckle boom crane trucks.

Dump Trucks and Concrete Mixers.

Wrecker/Tow Trucks: Integrated and rotating tow trucks for vehicle recovery.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Africa: This is a major focus area. Exports cover countries across East, West, and Southern Africa, including nations like Nigeria, Ghana, Angola, South Africa, Kenya, and Sudan. They often supply vehicles vital for infrastructure and sanitation, such as water trucks and garbage compactors.

Southeast Asia and Central Asia: These markets are crucial for construction and logistics equipment. Countries include the Philippines, Myanmar, and Central Asian republics.

The Middle East: A strong market for specialized tankers (fuel, chemical, LPG) and heavy-duty vehicles.

South America: Key destinations include countries like Peru, Bolivia, and Venezuela (where they have completed large-volume orders, such as 100 water trucks to Venezuela).

Eastern Europe and Russia: They have established market presence for various vehicle types, often adapting to regional climate and technical standards.

3. Tankers and Transport Vehicles

Fuel/Oil Tank Trucks and Trailers.

LPG (Liquefied Petroleum Gas) Tankers and Storage Tanks.

Chemical Liquid Tank Trucks.

Refrigerated Trucks (Reefers): Insulated vans for transporting cold goods.

4. Emergency and Specialty Vehicles

Fire Trucks: Various types, including water, foam, and rescue vehicles.

Ambulance Cars.

Mobile Vehicles: LED advertising trucks, mobile stage trucks, and mobile power supply trucks.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina nd so on.
