| Brand Name: | FAW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

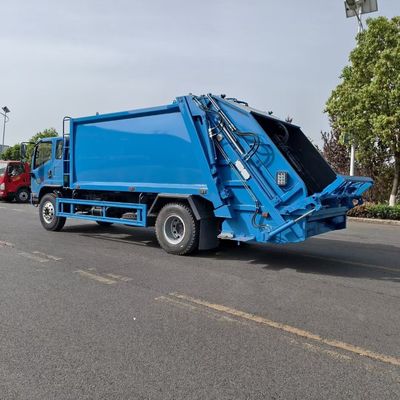

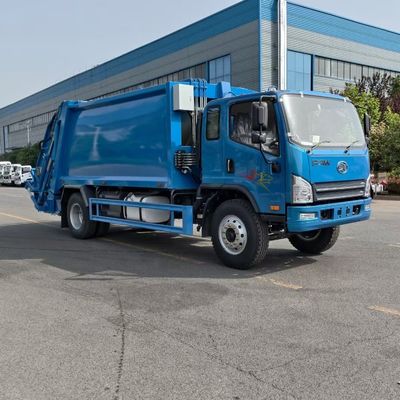

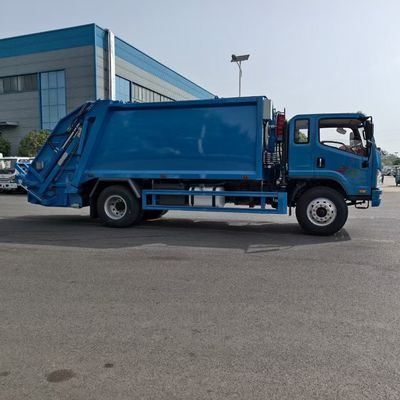

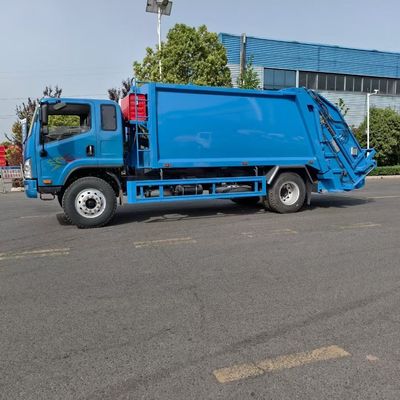

FAW Right-Hand Drive (RHD) Garbage Compactor Truck with an 8,000-Liter (8 CBM) capacity is a medium-duty sanitation vehicle designed for waste collection.

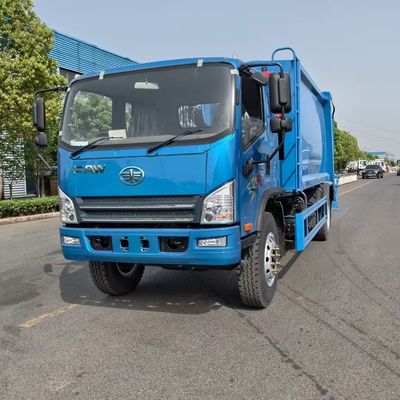

FAW 8000 liter compactor Garbage truck Chassis configuration: adopting the FAW Qingdao State V special sanitation vehicle series chassis, the Tiger VH can turn the cab forward, equipped with Dachai 120 horsepower diesel engine, six gear box, ABS, air brake, air brake, dynamic rotation, clutch booster, 750R16 steel tire, Cruise at fixed speed, with urea tank and exhaust purification system that meets the national five emission standards, GB7258-2017 new regulations chassis. The wheelbase is 3900mm. The environmental protection announcement has been issued, and there are no worries for the households.
FAW 8000 liter compactor Garbage truck Top-loading configuration: the effective volume of the trash bin is 8 cubic meters, the arc-shaped box or the square box are available for selection. It adopts electric, gas and liquid joint control, and has two complete operating systems of manual and electric; tail The loading system is a one-key cycle operation, one set at the left and one at the rear of the car;
A set of electric unloading operating system inside the cab; Hebei Xingtai Xiaolongwang gear pump, pump displacement: 85ml / r, Jiangsu Tengda / Suizhou Xingguang hydraulic oil cylinder, Yangzhou Zhongmei gas control multi-way valve, Taiwan Yonghong (programmable Controller) Imported PLC, Henan Litong brand hydraulic flexible tubing, working pressure: 16MPa, effective volume of filler: 1.5m3, loading cycle time: ≤40s, garbage dumping time: ≤45s,

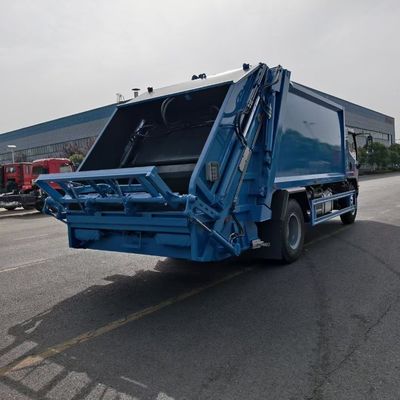

Rear flip mechanism:
| Category | Parameter | Typical Specification |
|---|---|---|
| Vehicle Type | Model | FAW RHD 8 CBM Rear Loader Compactor Truck |
| Driving Type | 4x2 (Right-Hand Drive - RHD) | |
| Overall Dimensions (L*W*H) | ≈7160*2250*2650 mm (Varies by chassis/body) | |
| Gross Vehicle Weight (GVW) | ≈8,000−11,200 kg | |
| Curb Weight (Kerb Weight) | ≈4,950−6,580 kg | |
| Max Speed | ≈80−95 km/h | |
| Chassis | Chassis Brand | FAW (e.g., Tiger VH Series) |
| Engine Brand/Model | Dachai, Yuchai, or other FAW-supported diesel engines (e.g., Dachai 120 HP) | |
| Engine Power | ≈90 kW/120 HP−115 kW/155 HP | |
| Emission Standard | Euro III / Euro IV / Euro V (depending on market requirements) | |
| Transmission | Manual, ≈6 forward gears | |
| Wheelbase | ≈3800 mm to 3900 mm | |
| Tire Specification | ≈7.50R16 or 8.25R20 Steel Wire Tyres | |
| Brakes | Air Brake system with ABS (Standard) | |
| Superstructure (Compactor Body) | Effective Volume | 8 CBM (Cubic Meters)/8,000 Liters |
| Compactor Body Shape | Arc-shaped or Square (Fully sealed) | |
| Body Material | High-strength wear-resistant carbon steel (e.g., Q345/T420) | |
| Material Thickness (Side/Bottom) | ≈4 mm (Side), 5 mm (Bottom) | |
| Compression Ratio | ≥2.5:1 (up to 4:1 for dense waste) | |
| Sewage Tank Volume | ≈200−500 Liters (Located at the bottom of the filler) | |
| Operational & Hydraulic System | Control System | Electro-Hydraulic Joint Control, with automatic and manual modes |
| PLC (Controller) | Imported PLC (e.g., Siemens or equivalent programmable controller) | |
| Hydraulic System Pressure | ≈16 MPa to 20 MPa | |
| Hydraulic Pump | Reputable Chinese or imported brand (e.g., Hefei Changyuan, Long source) | |
| Loading Cycle Time (One pass) | ≤30 seconds to 40 seconds | |
| Unloading/Discharge Cycle Time | ≤45 seconds | |
| Refuse Lifting Mechanism | Rear Flip Mechanism (Can be optional/customized): | |
| Standard: Dual 120L/240L plastic bins lifter | ||
| Optional: 660L/1100L large bins, iron drum lifter, fully-sealed flip bucket | ||
| Safety & Convenience | Control Points | 3 total (1 in the cab, 2 at the rear working area) |
| Safety Features | Emergency stop buttons, hydraulic lock for the tail lift, working lights. |
| Vehicle parameters: | |
|---|---|
| Overall dimensions (length * width * height) | Barrel Turning Device: 7160*2250*2650mm Tipping Device: 7460*2250*2650mm |
| Total mass | 8275Kg |
| Rated contained mass | 1500Kg |
| Curing quality | 6580Kg |
| Wheelbase | 3800mm |
| Front overhang / rear overhang | 1210/2150,1210/2450 |
| Approach / departure angle | 24/13 |
| Chassis parameters | |
| Chassis type | FAW |
| Cab color | White |
| Drive form | 4*2 |
| Wheelbase | 3800mm |
| engine model | CY4SK251(Euro V ) |
| Engine power (kw) | 115 |
| Emission Standards | GB17691-2005 (Euro V),GB3847-2005 |
| Tire | 7.50 Steel Wire Tyres (7) |
| Top loading parameters: | |
| Effective volume of the box | 8CBM |
| Box shape | arc |
| Box material | Bottom 4 sides 4 |
| Compression ratio | ≥2.5 |
| Loading cycle once | ≤35 s |
| Pushing garbage time | ≤35s |
| control method | automatic / manual |
| Hydraulic system pressure | 16MPa |
| Hydraulic oil pump | Hefei Changyuan (Zhonglian Heavy Industry) |
| Hydraulic cylinder | Zoomlion supporting |
| PLC control system | Siemens, Germany |
| Engine power control | Fully automatic control |
| Tumbler mechanism | Hang two 240L trash cans at the same time (Optional other types of flip frame) |
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Body Type: Usually constructed from high-strength, anti-corrosive steel (e.g., T420 or Q235). The body is fully sealed to prevent leakage and secondary pollution.
Loading Mechanism: Typically a Rear Loader configuration. The rear hopper and shovel mechanism compress the garbage into the main body of the truck.
Refuse Collection System: Designed to accommodate various standard garbage bins. Optional lifting mechanisms include:
Control System: Features a reliable control system, often a combination of Manual and Electrical/Hydraulic control. Controls are generally located in the cab and at the rear of the vehicle for operator convenience. Some use an imported PLC (Programmable Logic Controller) for automation.
Hydraulic System: Powered by a high-quality hydraulic pump (e.g., from Hefei Changyuan or a reputable supplier) to generate the force required for the strong compression.
Sewage Collection: Includes a dedicated sewage collection box or tank at the rear/bottom to collect liquid runoff from the waste, which can be periodically discharged.
Core Business: They specialize in the design, manufacture, and sales of a wide range of special trucks and vehicles used across various industries, including municipal and environmental construction, logistics, and rescue services.
Location: The company is headquartered in Suizhou City, Hubei Province, China, which is sometimes referred to as the "Capital of China's Special Vehicle Industry."
Product Range: They produce an extensive variety of special vehicles, including:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Africa: This appears to be a major focus, with exports to countries like:
Southeast Asia and Asia Market: A strong traditional export market including:
Central Asia & CIS Regions (Eastern Europe): Serving these landlocked and neighboring regions, with exports to:
South America: Developing presence in the Latin American market:
Middle East: They also target the Middle East region.
Oceania: Including countries like Australia and New Zealand.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
