JAC 2-Car Carrier Truck (Double Deck Vehicle Transporter)

JAC 2-Car Carrier Truck | Double Deck Car Transporter for Sale

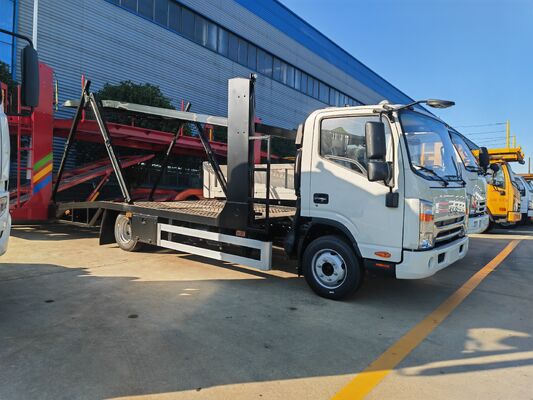

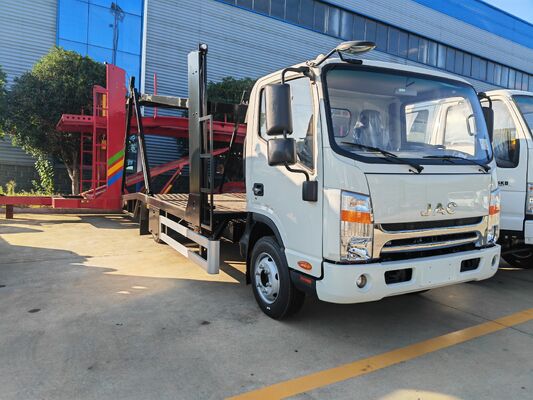

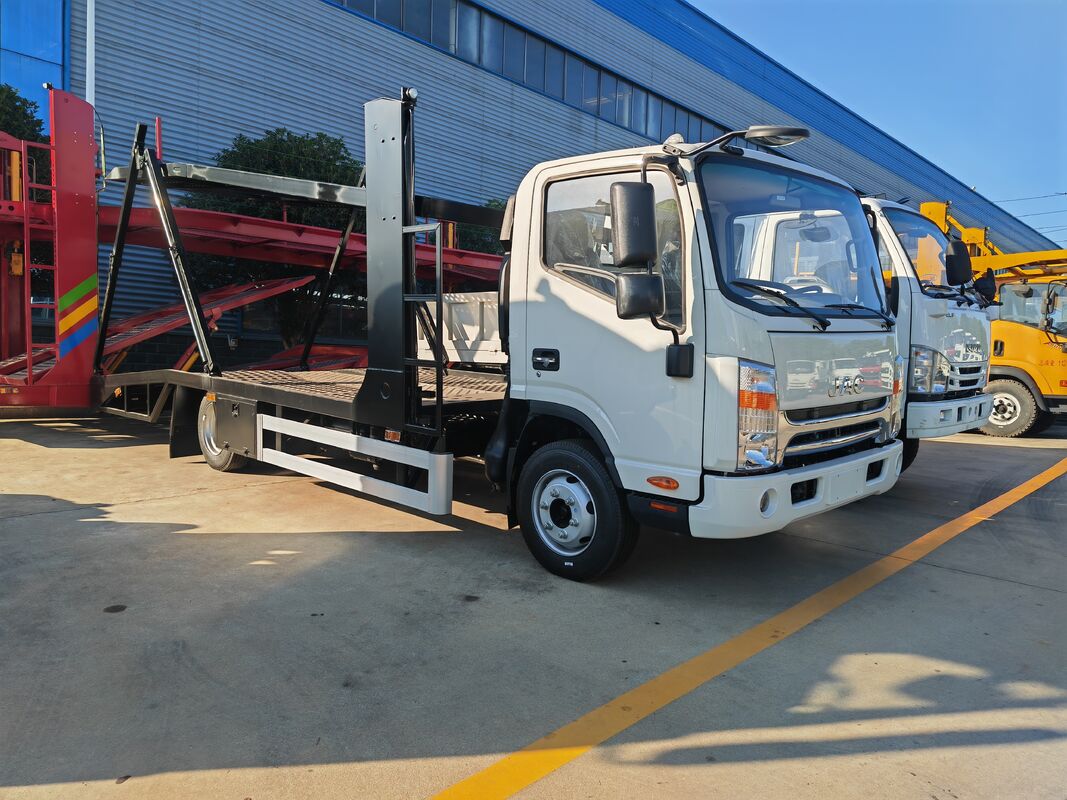

The JAC 2-Car Carrier Truck is designed for efficient, safe, and economical transportation of sedans, SUVs, and light commercial vehicles. Built on a reliable JAC light-duty chassis, this double-deck car transporter can carry up to two vehicles simultaneously—one on the hydraulic upper deck and one on the lower deck. By transporting two vehicles in a single trip, it can help reduce transportation costs and improve fleet utilization.

Why Choose a Double-Deck 2-Car Carrier?

• Two Vehicles per Trip
  Transport up to two compatible passenger vehicles in a single trip, subject to payload, vehicle dimensions, and local axle-load regulations.
• Lower Transportation Cost per Vehicle
  Fewer individual trips can help reduce fuel consumption, labor costs, and scheduling requirements.
• Hydraulic Loading Platform

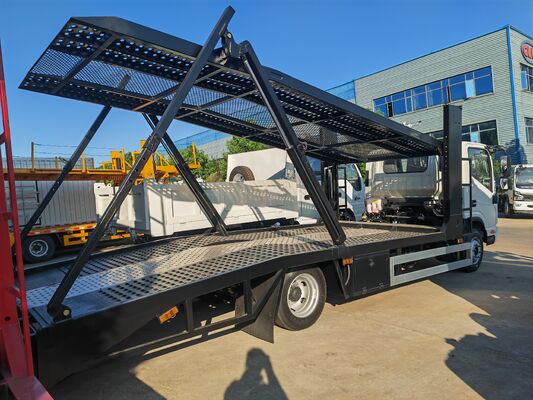

  The hydraulic upper deck can be raised, lowered, and tilted to facilitate vehicle loading and unloading.
• Compact Light-Duty Chassis
  The JAC light-duty chassis is suitable for urban vehicle logistics and applications where a heavy-duty vehicle transporter may be unnecessary.
• Export Customization
  LHD/RHD configurations, chassis, engine, wheelbase, deck dimensions, hydraulic equipment, and other components can be customized according to destination-market requirements.

1. Successful Case Studies

Case Study 1: Logistics Efficiency Upgrade for an Auto Dealership Network in South America

Client Profile:
A regional automobile distribution group in Colombia operating multiple dealership branches.

Challenge:
The customer previously transported premium sedans and SUVs individually using single-vehicle flatbed tow trucks. This resulted in higher fuel consumption, increased driver and operating costs, and scheduling bottlenecks.

Solution:
The customer imported a fleet of five JAC 2-Car Carrier Trucks equipped with dual-deck hydraulic loading platforms.

Result:
The two-level carrier configuration allowed the customer to transport two compatible vehicles in a single trip, helping improve fleet utilization and reduce the number of individual transport trips. The hydraulic upper deck also simplified vehicle loading and unloading.

If the 85% efficiency improvement and nearly 40% cost reduction are based on verified customer operating data, these figures can be retained with supporting evidence.

Case Study 2: Urban Roadside Assistance & Vehicle Recovery Fleet in Southeast Asia

Client Profile:
A municipal towing and emergency roadside assistance service operator in the Philippines.

Challenge:
High urban traffic density required a compact vehicle transporter capable of carrying two compatible vehicles while complying with local vehicle dimensions and axle-load regulations.

Solution:
The customer selected customized LHD JAC 2-Car Carrier Trucks equipped with anti-slip punched steel deck surfaces and hydraulic winches.

Result:
The double-deck configuration increased the number of vehicles that could be transported per trip and helped improve fleet utilization for urban vehicle recovery and transportation operations.

2. Technical Specifications

Note: Specifications may vary according to the selected JAC chassis model, wheelbase, engine, payload requirement, destination-country regulations, and customer customization.

3. International Buyer Guide

When selecting and purchasing a JAC 2-Car Carrier Truck for overseas operation, international buyers should consider the following factors.

• Vehicle Dimensions & Weight Compliance
  Check local regulations governing maximum vehicle length, overall height, axle loads, and gross vehicle weight. For double-deck transporters, also verify available height clearance under bridges, tunnels, parking structures, and other overhead obstacles.
• Steering & Emission Standard Matching
  Select Left-Hand Drive (LHD) or Right-Hand Drive (RHD) according to the regulations of the destination country. The engine and emissions configuration should also meet applicable local standards, which may include Euro 2, Euro 3, Euro 4, Euro 5, or Euro 6, depending on the market and chassis specification.
• Deck Structure & Tie-Down System

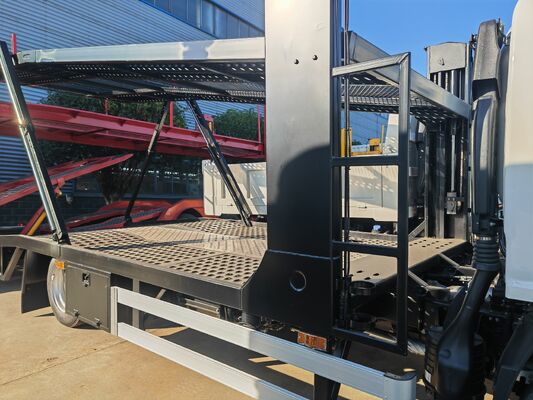

  Choose a deck manufactured from high-strength structural steel with anti-slip punched surfaces and suitable anchoring points for wheel chocks and vehicle tie-down straps. The deck dimensions should accommodate the wheelbase, track width, and overall dimensions of the vehicles being transported.
• Hydraulic System Reliability
  Check whether the hydraulic lifting system incorporates appropriate hydraulic safety components, including hydraulic check or counterbalance valves and mechanical safety locks. The upper deck should be mechanically secured before the truck travels on public roads.
• Shipping & Logistics Options
  For overseas delivery, evaluate Ro-Ro (Roll-on/Roll-off), flat-rack container, and breakbulk shipping options according to vehicle dimensions, destination-port facilities, shipping costs, and delivery schedules.

4. Operation & Maintenance Guide

Pre-Operation Checklist

• Inspect hydraulic hoses, fittings, and quick couplers for oil leaks, cracks, or abrasion.
• Check tire inflation pressure and verify wheel-nut torque according to the chassis manufacturer's requirements.
• Inspect the upper-deck locking mechanism before operation.
• Make sure the hydraulic system and safety devices are functioning correctly.
• Confirm that all vehicle securing equipment is available and in good condition.

Loading & Unloading Procedure

1. Park the truck on level, stable ground and apply the parking brake.
2. Position and tilt the upper deck hydraulically to create a suitable loading angle.
3. Drive or winch the first vehicle onto the upper deck.
4. Apply the vehicle's parking brake and secure the vehicle using suitable wheel chocks and high-strength tie-down straps.
5. Raise the upper deck to the required transport position.
6. Engage the mechanical safety locks before placing the second vehicle on the lower deck.
7. Load and secure the lower vehicle.
8. Check all tie-downs, wheel chocks, hydraulic components, and safety locks before driving.

Scheduled Maintenance Checklist

5. Frequently Asked Questions (FAQ)

• How many vehicles can the JAC 2-Car Carrier Truck transport at once?
  The JAC 2-Car Carrier Truck is designed to transport up to two compatible passenger vehicles in one trip, with one vehicle positioned on the upper hydraulic deck and another on the lower deck. Actual capacity depends on vehicle dimensions, payload, axle-load limits, and carrier configuration.
• Can the upper deck handle heavy SUVs and electric vehicles (EVs)?
  The upper deck can be configured for many passenger cars, SUVs, and EVs, provided that the vehicle weight, dimensions, axle loading, and deck capacity remain within the specified limits. Heavy SUVs and EVs should be checked individually against the carrier's rated payload and deck capacity.
• Is the JAC 2-Car Carrier available in Right-Hand Drive (RHD)?
  Yes. RHD and LHD configurations can be supplied depending on the selected JAC chassis and destination-market requirements. RHD configurations are commonly considered for markets where right-hand-drive vehicles are required.
• What safety mechanisms help prevent the upper deck from dropping during transport?
  The hydraulic superstructure can incorporate hydraulic check or counterbalance valves together with mechanical safety locks. The upper deck should be fully secured by the mechanical locking system before the truck travels.
• Is a hydraulic winch available?
  Yes. A hydraulic winch can be installed at the front of the carrier deck to assist in loading non-running or damaged vehicles. Winch capacity and configuration can be customized according to the vehicle application.
• What chassis and engine options are available for export?
  Different JAC chassis and engine configurations can be supplied according to payload requirements, destination-country regulations, fuel conditions, and applicable emissions standards. Available configurations should be confirmed for the specific export market.
• How are vehicles secured to the carrier decks during transportation?
  Vehicles are secured using wheel chocks and high-strength ratchet tie-down straps connected to suitable anchoring points on the carrier deck. The exact securing method should follow the carrier manufacturer's operating instructions and applicable vehicle-transport regulations.
• What is the production lead time?
  Typical production lead time is approximately 20–30 days, depending on chassis availability, carrier configuration, customization requirements, and production scheduling. The actual delivery schedule should be confirmed when placing the order.
• How is the JAC 2-Car Carrier shipped overseas?
  Depending on vehicle dimensions, destination-port facilities, and shipping costs, the truck may be transported by Ro-Ro vessels, flat-rack containers, or breakbulk cargo. The appropriate shipping method should be confirmed according to the final vehicle configuration and destination port.
• What warranty and spare-parts support are available?
  Warranty coverage and spare-parts support can be provided according to the supply contract and specific vehicle configuration. Warranty terms for the chassis, hydraulic system, and carrier superstructure should be confirmed before purchase. Genuine replacement parts and technical support can be arranged for international customers.

Manufacturer & Export Information

Manufacturer / Exporter: Chengli Special Automobile Co., Ltd. (CLW Group)

Official Website: www.cn-vehicles.com

Export Director: Shine Wang

Product: JAC 2-Car Carrier Truck / Double Deck Car Transporter

Application: Passenger Vehicle Transportation, Auto Dealership Logistics, Vehicle Distribution, Used-Car Transportation, and Vehicle Recovery Operations
