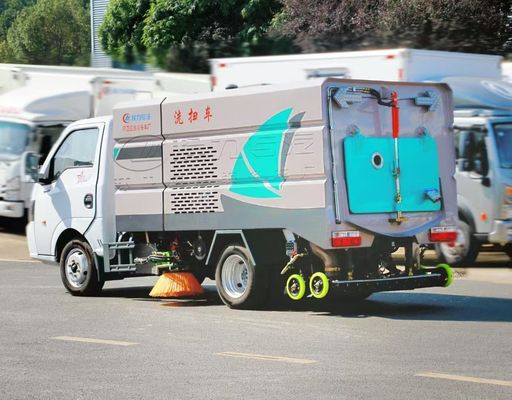

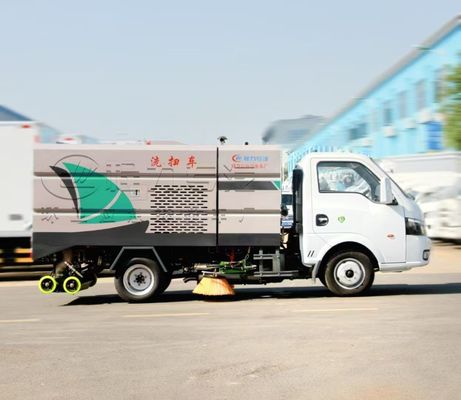

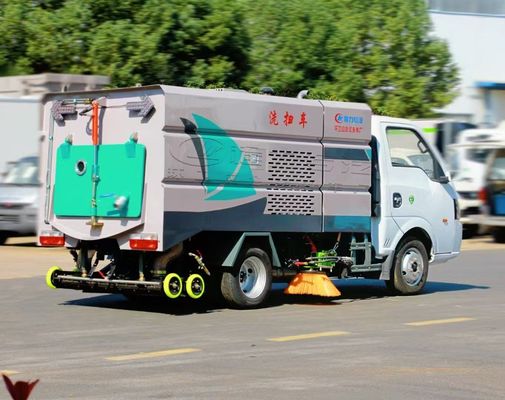

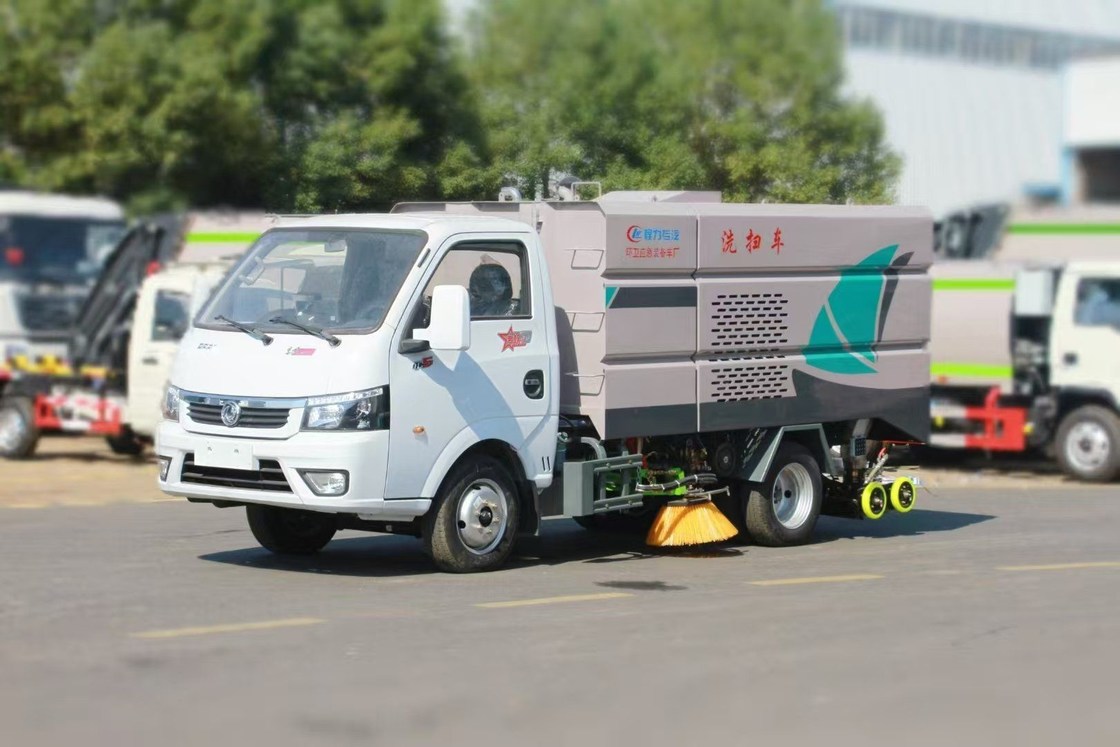

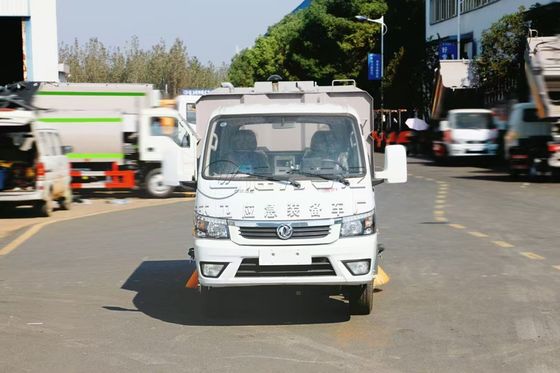

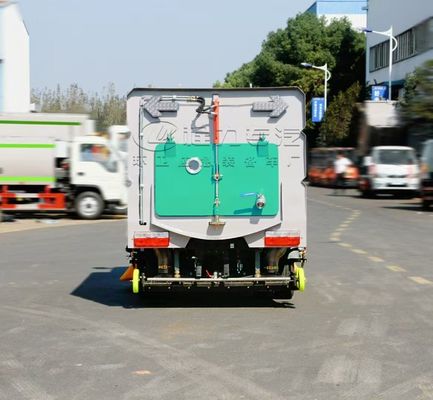

Dongfeng Mini Industrial Road Sweeper Cleaning Equipment Road Sweeper Vacuum Road Machine

Type: Usually a Vacuum Road Sweeper or a combined Sweep and Suck Type. Some models also incorporate a High-Pressure Washing/Sprinkler function for dust suppression and removing stubborn stains, making them multi-functional.

Chassis: Often built on a reliable Dongfeng truck chassis for the larger models.

Cleaning Mechanism: Typically uses a system of sweeper brushes (side brushes and main brush) to collect debris and a powerful vacuum suction device to lift the material into the garbage tank.

Power: Larger models use a main engine (Chassis engine) for driving and an auxiliary engine (often Cummins or similar) to power the sweeping and vacuum system. Mini-sweepers are often pure electric (battery-powered) for zero emissions and low noise.

Tanks: Equipped with a Dust/Garbage Tank (Hopper) and a Water Tank for dust suppression. Volumes vary widely (e.g., mini-sweepers might have a 150L dustbin, while truck models can have 3-8 m 3 dust tanks).

Operation: Modern models often feature a hydraulic system in the cab for controlling the brushes, suction nozzle, and tank dumping, sometimes with one-button operation.

Efficiency: Designed for high cleaning efficiency, often ≥95%.

Road sweeper truck is a new type of high efficient cleaning equipment which integrates road cleaning, garbage collection and transportation. it is widely used in city streets, road, station, square etc. Road sweeper truck are mainly composed of chassis, box (garbage box and water tank), sweep system, auxiliary engine, fan system, cleaning system, suction system, dust system, hydraulic system and electrical control system. The garbage boxes and water tank produced by our company are made of stainless steel,the inside of the garbage box has filter nets, which can effectively prevent the leaves,plastic bags or other light objects to clog the tuyere. Water tank inside is anticorrosion, antirust and antitoxic. Road sweeper truck is equipped with 4 brushes, both sides of the brushes can be working together, or unilateral work independently. The operating system of road sweeping truck, rear dust absorption plate absorb the rubbish on the ground. The height can be adjust according to requirement.Road sweeper truck have an auxiliary engine which can offer power for fan and hydraulic oil pump. Fan supply suction power for the suction system, hydraulic oil pump complete the lift of van box and switching of rear door. The nozzle is installed at cleaning brushes and the rear and front of the truck to drop dust by spraying water. The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate.

1. Imported high quality hydraulic motor.
2. Stainless steel garbage box with anticorrosion.
3. The cleaning brushes can avoid automatically and adjust the speed.
4. Both sides of the brushes can be working together, or unilateral work independently.

Sweeping Mechanism: Often features a central installation of 4 sweeping discs (brushes) or a similar configuration, with the right or left front brush often having independent control and an anti-collision avoidance function.

Vacuum System: Uses a powerful centrifugal fan to create high-speed airflow for efficient vacuuming, often with a large suction entrance diameter (e.g., 200mm).

Dust Suppression: Includes a spraying water system with an electric diaphragm pump, water filter, and nozzles, to wet the ground and suppress dust during sweeping.

Discharge: The garbage tank typically uses a hydraulic system to tilt and discharge collected waste (Discharge Angle ≥45 ∘ ).

Controls: Operations for the sweeping system (brushes, suction, tilting) are typically controlled by an electrical control system from the cabin.

These "mini" or small-to-medium-capacity Dongfeng road sweepers are primarily designed for cleaning tasks in:

• Urban streets and city roads.
• Narrow lanes, alleys, and residential areas (where maneuverability is key).
• Municipal squares and parks.
• Industrial areas and factory grounds.

The Vacuum Sweeper Truck is mainly used for road dust cleaning and suction. It is widely used in seaports, coal mining places, urban roads, highways, airports, docks, Bridges, squares, residential areas etc to make the places.

A Road Suction Truck can largely save labor cost and working time. To use the Sweeper Truck one hour can match a person sweeping the road all day!

1. With auxiliary engine. It is with JMC 64KW vice engine and supply enough power for the suction devices. The vice engine is connected to the fan adopts automatic centrifugal clutch, can guarantee the vice engine no-load start.
2. Vacuum device and suction nozzle arrangement adopts "wide of suction nozzle by the main suction + left and right side suction nozzle structure arrangement. The suction cup device has the function of avoiding and resetting automatically when encountering obstacles.This function can effectively solve the problem of easily damaged dust collector. Full floating suction nozzle, with the characteristics of large vacuum width, high vacuum efficiency, and conducive to the adjustment and maintenance of suction nozzle.
3. The liner of dustbin adopts double structure, the inner layer is all stainless steel;The high efficiency filtration of 4 sets of polymer filter cylinders can effectively reduce the secondary pollution caused by dust.
4. The front part of the truck is equipped with an automatic emergency system of hand pump.The tail is equipped with an optional water spray dust removal device;Open and close the garbage box door and garbage dump can be operated in the driving room, which is safe, convenient and reliable.
5. The filter cylinder of the vacuum truck can effectively separate the dust absorbed by the vacuum truck so as to avoid secondary dust pollution. There are two cleaning methods for the filter cylinder of the vacuum truck, one is equipped with automatic pulsed dust cleaning, and the other is disassembled and cleaning. Both are easy to operate.

Chengli Special Automobile Co., Ltd. (part of the CLW Group) is one of the largest and most prominent manufacturers of special-purpose vehicles in China.

Chengli is primarily a manufacturer and supplier of a vast range of special vehicles for municipal, environmental, and transportation needs. Their product categories include:

Sanitation & Environmental Vehicles:

• Garbage Trucks (Compactor, Hook Lift, Skip Loader)
• Water Sprinkler/Tank Trucks (A perennial top seller in China)
• Road Sweeper Trucks (Vacuum, Wet & Dry)
• Sewage Suction and Fecal Tank Trucks
• High-Pressure Washing and Dust Control Trucks

Tanker & Pressure Vessels:

• Fuel Tanker Trucks and Trailers
• LPG (Liquefied Petroleum Gas) Tankers and Storage Tanks (Holding A2, C2, C3 pressure vessel qualifications)
• Chemical Liquid Tank Trucks
• Milk and Food Transport Tankers

Construction & Engineering Vehicles:

• Truck-Mounted Cranes (Knuckle and Straight Boom)
• Aerial Work Platform (Manlift) Trucks
• Dump Trucks
• Concrete Mixer Trucks

Logistics & Commercial Vehicles:

• Refrigerated Van Trucks
• Cargo Trucks and Van Trucks
• Wrecker/Tow Trucks

Emergency & Specialty Vehicles:

• Fire Trucks (Fire Engines)
• Ambulances
• LED Advertising/Stage Trucks
• New Energy Vehicles (Electric sanitation and specialty trucks)

Manufacturing and Quality

The company emphasizes having complete production qualifications and first-class equipment.

Chassis Partners: They build their superstructures on chassis from major global and Chinese manufacturers, including Dongfeng, Foton, Isuzu, SINOTRUK (HOWO), FAW, Shacman, and JAC.

Certifications: They hold numerous international and national certifications, including:

• ISO 9001 (Quality Management System)
• ISO 14001 (Environmental Management System)
• OHSAS 18001 / ISO 45001 (Occupational Health & Safety)
• China Compulsory Certification (3C)
• ASME and ADR (for pressure vessels and dangerous goods transport)

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd. (CLW Group) is a significant player in the international market for special-purpose vehicles. The company actively exports its wide range of products to a large number of countries across multiple continents.

Here is an overview of their overseas market reach and focus:

Global Reach

Chengli trucks are reportedly exported to more than 50 countries and regions globally. Their main export destinations are concentrated in developing and emerging markets where there is a strong demand for infrastructure, municipal, and energy vehicles.

The main regions for their overseas business include:

• Africa: A major market, with sales in countries like Nigeria, Ghana, South Africa, Algeria, Angola, Tanzania, Mali, Congo, and Zimbabwe. They supply a variety of vehicles, often focusing on sanitation, fuel, and construction trucks.
• Southeast Asia: A strong traditional market, with exports to countries such as the Philippines, Vietnam, Myanmar, Thailand, Cambodia, Laos, and Malaysia. Sanitation and light logistics vehicles are common sales.
• South America: Key market areas include Peru, Bolivia, Chile, Panama, Ecuador, and Venezuela.
• Central Asia and Russia: They supply to countries including Russia, Kazakhstan, and Mongolia.
• Middle East: Targeted market, with documented exports to countries like Saudi Arabia and the UAE (often for specialized vehicles like fuel tankers and ambulances).
• Oceania: Including exports to Australia and New Zealand.

Export Focus and Products

Chengli leverages its broad product portfolio to meet diverse international needs. Specific products that frequently feature in export orders include:

• Sanitation Trucks: Garbage compactors, water sprinkler trucks, and sewage suction trucks, which are essential for municipal infrastructure projects.
• Energy & Chemical Tankers: Fuel tanker trucks and LPG (Liquefied Petroleum Gas) tankers and semi-trailers, often built to international safety standards (like ASME and ADR certification).
• Construction Vehicles: Truck-mounted cranes and tipper (dump) trucks.
• Emergency Vehicles: Fire trucks and ambulances.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
