| Brand Name: | HOWO |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

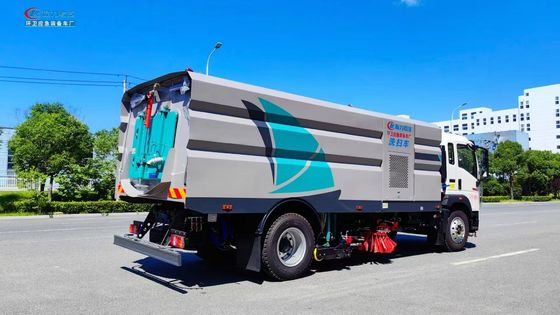

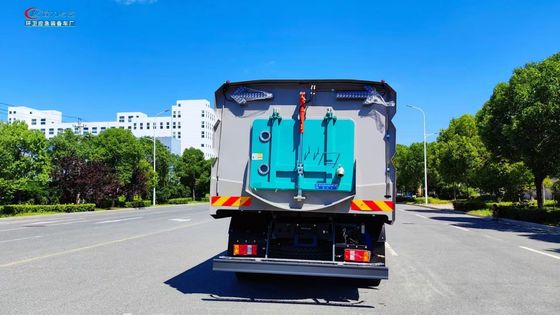

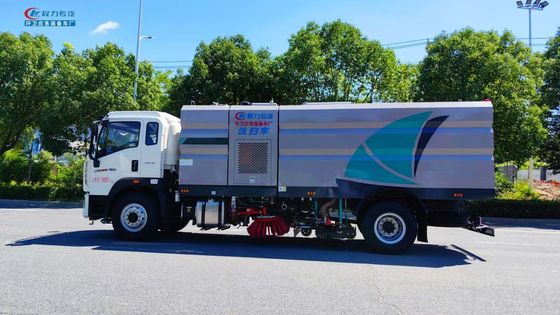

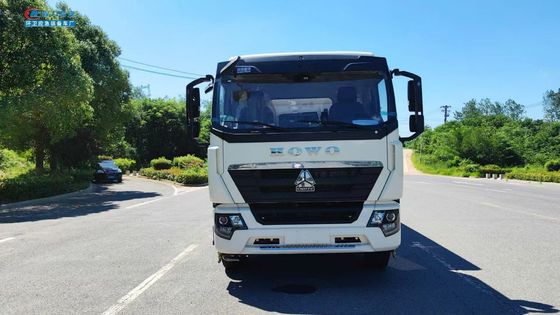

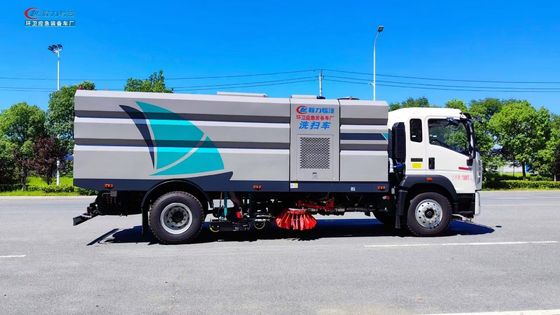

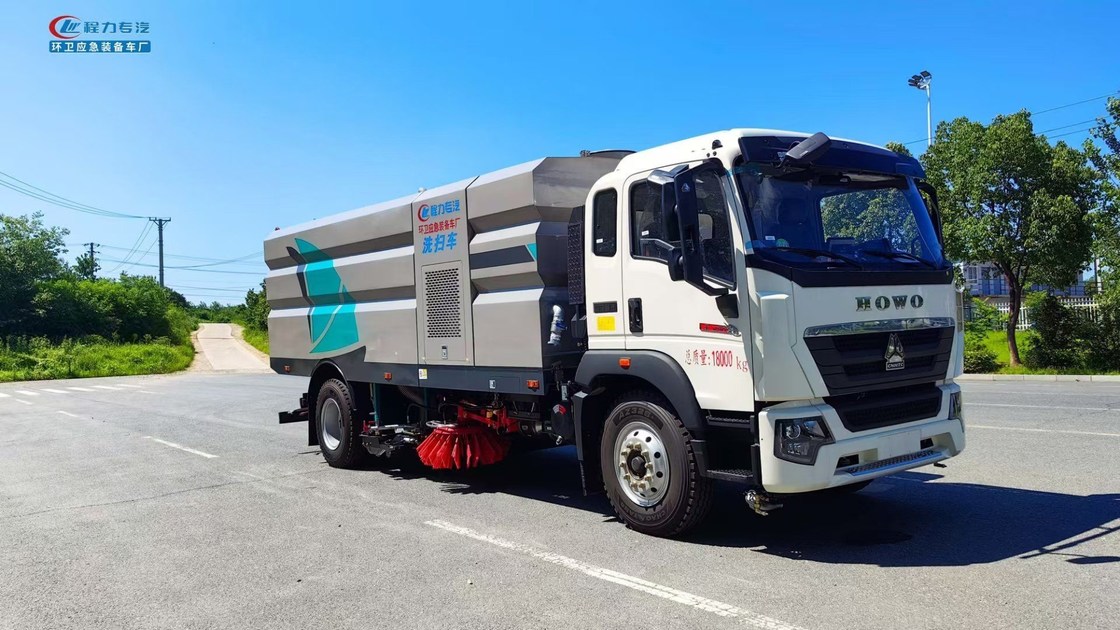

HOWO Vacuum Street Sweeper Trucks is primarily dominated by Chinese special vehicle manufacturers who build the specialized sweeper and vacuum superstructure onto the reliable chassis provided by SINOTRUK (China National Heavy Duty Truck Group), which is the manufacturer of the HOWO brand.
Main Features:
| Feature | Typical Specification Range |
| Chassis Brand | SINOTRUK HOWO |
| Drive Type | 4*2 or 6*4 |
| Cab | HOWO single row, day cab, with A/C (Air Conditioning) |
| Overall Dimensions (L*W*H) | Varies significantly, e.g., 5,995*2,000*2,560 mm to 8,800*2,500*3,100 mm |
| Gross Vehicle Weight (GVW) | Varies, e.g., 7,360 kg to 18,000 kg |
| Engine (Main) | Diesel, e.g., Weichai or Yuchai, 4- or 6-cylinder |
| Engine Horsepower | Varies, e.g., 116 HP to 300 HP |
| Emission Standard | Varies, e.g., Euro II to Euro VI |
| Transmission | Manual, multiple forward and reverse gears (e.g., 6-speed or 8-speed) |
| Tire Specification | Radial tires, common sizes like 7.00R16, 9.00R20, or 295/80R22.5 |
| Max. Driving Speed | ≈90 km/h |
| Feature | Typical Specification Range |
| Sweeping System Type | Vacuum/Suction and Sweeping Combination (Wet or Dry) |
| Dust/Garbage Bin Volume | Varies significantly, common ranges include 4 m3 to 10 m3 |
| Water Tank Volume | Varies, common ranges include 1.5 m3 to 5 m3 |
| Tank Material | Stainless steel (for water and/or dustbin) or Carbon steel |
| Auxiliary Engine | Dedicated engine (e.g., Cummins, JMC) to power the sweeping system |
| Auxiliary Engine HP | Varies, e.g., 77 HP to 140 HP |
| Max. Sweeping Width | ≈2.8 m to 3.5 m (adjustable) |
| Cleaning Capacity | Varies, e.g., 40,000 m2/h to 82,000 m2/h |
| Sweeping Speed (Working) | 3 km/h to 20 km/h (depending on conditions) |
| Cleaning Efficiency | ≥90% to ≥98% |
| Max. Suction Particle Size | ≈110 mm to 120 mm |
| Sweeping Brushes | Usually 4 sweeping brushes (2 on each side), hydraulically driven, with anti-collision function. |
| Control System | PLC or intelligent control, one-button operation for sweeping mode, Schneider components often used. |
| Hydraulic System | High-quality components (sometimes imported) for lifting the dustbin and operating the brushes. |
| Specification | Details |
|---|---|
| Chassis Brand | HOWO / SINOTRUK |
| Drive Type | 4*2 or 6*4 (depending on model) |
| Cabin | HW76 with A/C (sleeper optional) |
| Engine Power | 266–336 HP (Euro IV/V/VI optional) |
| Transmission | 6-speed / 10-speed manual gearbox |
| Gross Vehicle Weight (GVW) | 16,000–25,000 kg |
| Water Tank Volume | 9,000 – 10,000 Liters |
| Dust Tank Volume | 8,000 – 10,000 Liters |
| Sweeping Width | 3.5 – 3.8 meters |
| Suction Width | Up to 3.5 meters |
| Sweeping Capacity | 60,000 – 90,000 m² per hour |
| Auxiliary Engine | ISUZU or WEICHAI auxiliary diesel engine |
| Vacuum Fan | Hydraulic or belt-driven |
| Water Spray System | High pressure with adjustable nozzles |
| Dust Suppression | Front, middle, and rear spray bars |
| Control System | In-cabin operation panel + manual backup |
HOWO Vacuum Street Sweeper Truck Mounted Road Sweeper Manufacturers Details :
Auxiliary Engine: To power the sweeping system (often brands like Cummins, Isuzu, or Chinese equivalents).
Tank Materials & Volume: The stainless steel/carbon steel water and garbage tanks (common capacities range from 5,000 to 16,000 liters total volume).
Sweeping System: Brushes, suction nozzle, hydraulic system components (which may use imported parts from brands like Siemens, Huibo, or German/Italian hydraulic components).
Control System: PLC or electronic control systems for operating the sweeping functions.
About Chengli Special Automobile Co., Ltd
Company Overview: It is a core enterprise of the CLW Group and is designated by the Chinese government as a large-scale manufacturer of special vehicles.
Location: The company is primarily located in Suizhou City, Hubei Province, China, often called the "capital of China's special purpose vehicles." It has a large industrial park there.
Establishment: The predecessor, Chengli Special Automobile Co., Ltd., was established in September 2004. The broader CLW Group has since diversified.
Products: Chengli produces a vast range of over 800 types of specialized vehicles. Leading product series include:
Scale and Reach: The company is noted for its significant scale, with a large land area, a large employee base (over 10,000 employees in the group), and a high annual production capacity. Its products are sold across China and exported to many countries in Asia, Africa, South America, and the Middle East.
Quality and Certifications: Chengli holds various national and international certifications, including ISO 9001 (Quality Management), ISO 14001 (Environmental Management), CCC (China Compulsory Certification), and others like ASME and ADR for specific products.
Chengli's products are exported to a diverse range of countries and regions, generally exceeding 30 to 80 countries (depending on the source) worldwide. Their primary markets can be broadly categorized into:
