JAC 4x2 Heavy Duty Cargo Truck with XCMG Knuckle Boom Crane Export to Panama Colon Free Zone

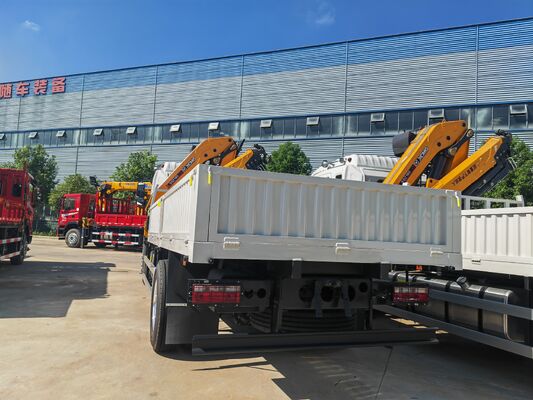

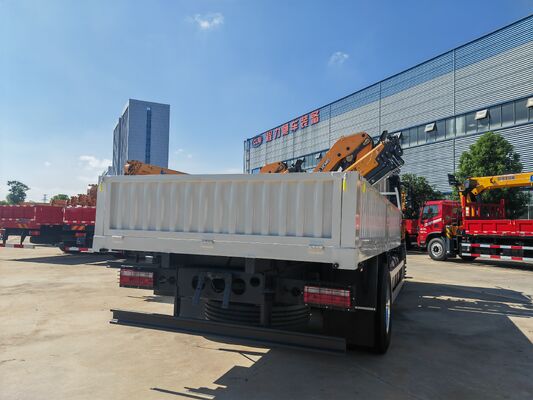

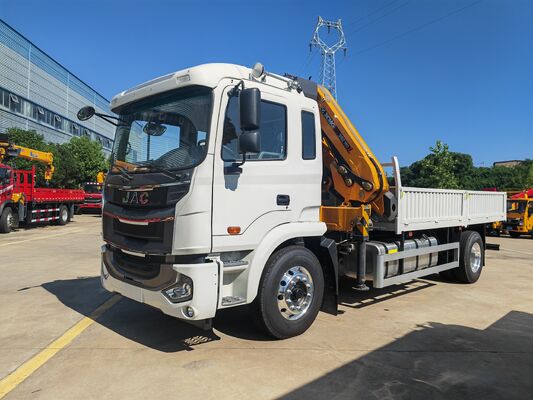

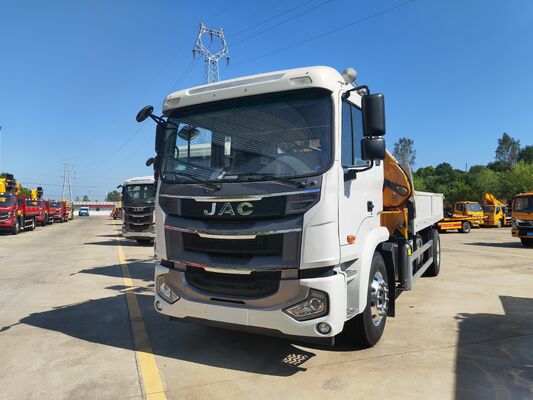

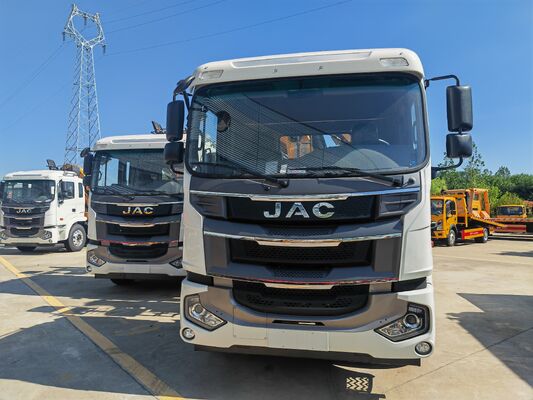

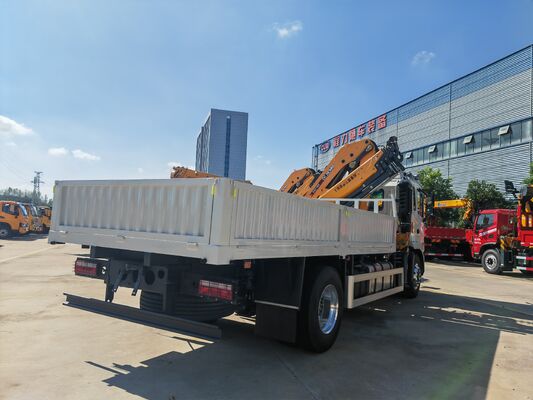

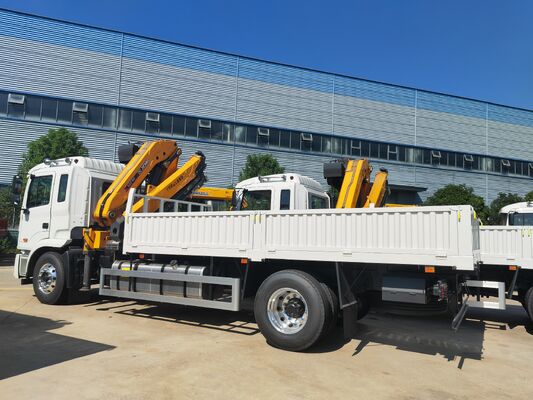

JAC 4x2 Cargo Truck with XCMG Knuckle Boom Crane

Chengli Special Automobile Co., Ltd. / CLW Group is a China-based manufacturer and exporter of JAC truck-mounted crane vehicles, integrating JAC commercial vehicle chassis with XCMG knuckle boom cranes for international markets.

High-Efficiency Multi-Purpose Logistics & Lifting Solution

Designed for maximum efficiency, safety, and durability, the JAC Heavy-Duty Cargo Truck integrated with an XCMG Knuckle Boom (Folding) Crane is the ideal equipment for global logistics hubs, municipal infrastructure, construction, and regional distribution. Engineered to thrive in challenging working environments—including tropical climates, rough road conditions, and restricted urban/warehouse spaces—this unit provides an outstanding return on investment for transport operators and equipment rental companies.

Key Highlights & Advantages

• Compact Structural Design: The XCMG folding arm crane retracts completely behind the cab, maximizing usable cargo deck space and keeping total vehicle dimensions compact for tight maneuvers and reduced shipping costs.
• Exceptional Maneuverability: High-articulation knuckle boom allows precise weight positioning, low-clearance operations (under bridges or inside indoor warehouses), and vertical lifting close to the truck frame.
• Heavy-Duty JAC Chassis: Powered by a robust, high-torque diesel engine paired with a proven transmission system, offering excellent fuel economy and high reliability across demanding terrains.
• Multi-Functional Tool Integration: Equipped with auxiliary hydraulic lines at the boom tip to support quick-attach accessories like clamshell buckets, timber grabs, pallet forks, or brick clamps.
• Turnkey Export Package: Complete with LHD configuration, heavy-duty drop-side cargo bed, full safety protection, and global export shipping compliance (Ro-Ro or Flat Rack container ready).

Technical Specifications

1. Truck Chassis (JAC Heavy-Duty Series)

• Drive Type: 4x2 (Left-Hand Drive)
• Engine: High-Performance Turbocharged Diesel Engine
• Emission Standard: Euro II / Euro III / Euro IV (Customizable for local market requirements)
• Transmission: Manual Transmission (6-speed / 8-speed / 10-speed options)
• Brake System: Dual-circuit air brakes with ABS
• Tires: Premium heavy-duty radial tires (including spare tire & carrier)
• Cab Features: Ergonomic driver cab with Air Conditioning, Power Windows, Central Locking, AM/FM Radio, and high-visibility rear mirrors.

2. Crane System (XCMG Folding / Knuckle Boom)

• Brand & Type: XCMG SQZ Series Articulated Crane
• Lifting Capacity Range: 3.2 Ton to 12 Ton (Configured to client requirements)
• Max. Working Radius & Height: Multi-stage hydraulic extension booms engineered for long-reach stability.
• Slewing Angle: 360 continuous or limited slewing with smooth hydraulic control.
• Outriggers: Fully hydraulic H-type front and rear outriggers with wide span for maximum stability on uneven ground.
• Safety Features: Load moment indicator (LMI), over-winding protection, emergency stop buttons, hydraulic lock valves, and high-pressure relief valves.

3. Cargo Deck & Structure

• Type: High-strength steel drop-side cargo body
• Flooring: Anti-slip checkered steel plate
• Protection: Front headache rack, heavy-duty side guards, and rear bumper safeguard.

Target Applications & Markets

• Free Zone & Hub Logistics: Container unboxing, palletized cargo movement, and quick port-side material handling (ideal for trade free zones such as Colon Free Zone, Panama).
• Construction & Infrastructure: Transporting steel rebar, formwork, generators, and precast concrete components directly to job sites.
• Utility & Municipal Maintenance: Erecting power line poles, maintaining transformers, and clearing road debris.
• Regional Redistribution: Inter-city and cross-border transport requiring self-loading and self-unloading capability without extra forklift support.

Buyer Guide (Purchasing & Configuration Manual)

Step 1: Define Cargo & Lifting Requirements

Before placing an order, evaluate your daily operational needs:

• Payload Capacity: Determine the maximum cargo weight you need to transport. A standard 4 *2 JAC chassis supports an 8 to 10ton payload.
• Crane Capacity & Reach: Match the XCMG SQZ crane series (e.g., 3.2T, 6.3T, 8T, or 10T) with your maximum working radius and required lifting height.
• Deck Dimensions: Ensure the drop-side cargo box length (5.2 m to 6.2 m) accommodates your standard cargo (e.g., pallets, steel beams, or power poles).

Step 2: Chassis & Engine Selection

• Drive Configuration: Choose 4 *2 for urban distribution, paved roads, and port logistics. Opt for 4 *4 if operating in muddy terrain, agricultural sites, or mountain construction.
• Emission Standard: Confirm local import regulations with Panama Customs (Autoridad Nacional de Aduanas). Euro II / Euro III / Euro IV engines are widely supported across Latin America and run reliably on local fuel grades.
• Steering Position: Ensure Left-Hand Drive (LHD) is selected for Panama and surrounding regional markets.

Step 3: Crane Auxiliary Options

If your operations go beyond basic hook lifting, request factory-installed auxiliary hydraulic lines at the boom tip to support:

• Hydraulic Clamshell Bucket (for soil/gravel)
• Timber Grab / Pipe Clamp
• Pallet Fork Attachment
• Personnel Basket (High-altitude maintenance)

Step 4: Export Shipping & Port Logistics

• Port of Destination: Specify the target port (e.g., Port of Colón / Manzanillo International Terminal (MIT) / Cristóbal) for Free Zone entry.
• Shipping Method:
  • Ro-Ro (Roll-on/Roll-off): Best for single/small orders. Drive-on/drive-off prevents paint damage and saltwater exposure inside the vessel cargo deck.
  • Flat Rack Container: Ideal if Ro-Ro routes are limited. The vehicle is secured to an open flat rack frame.
• Protection Package: Request factory-grade wax coating on the chassis and hydraulic oil line seals to prevent sea-salt corrosion during ocean transport.

2. Maintenance Guide (Routine Care & Service Protocols)

Proper maintenance ensures equipment longevity and protects resale value, especially in humid, tropical climates.

A. Daily Inspection (Pre-Operation Checklist)

• Hydraulic Oil & Fluid Levels: Check engine oil, coolant, brake fluid, and hydraulic tank sight glass.
• Leakage Visual Inspection: Inspect hydraulic hoses, fittings, cylinders, and outriggers for oil leaks or wear.
• Outrigger & Safety Checks: Test outrigger extension/retraction, emergency stop button, and Load Moment Indicator (LMI) lights.
• Tire Pressure & Brakes: Verify tire inflation and check the air brake pressure gauge before driving.

B. Scheduled Maintenance Intervals

C. Tropical Climate Precautions (Panama & Central America)

• Moisture Protection: Drain water daily from the air brake tanks using the bottom pull-valve to prevent corrosion in humid environments.
• Hydraulic Cooling: Keep the hydraulic oil cooler clean and free of dust or mud buildup to prevent system overheating during continuous heavy lifting.

3. Frequently Asked Questions (FAQ)

Q1: Why choose a folding arm (knuckle boom) crane instead of a telescopic (straight boom) crane?

A: Folding arm cranes retract compactly behind the cab, leaving the cargo box completely unobstructed for loading. They excel in low-clearance environments (warehouses, under bridges) and allow easy attachment of hydraulic accessories (grabs, buckets).

Q2: Can this JAC truck be directly imported into the Colon Free Zone (Zona Libre de Colón)?

A: Yes. Vehicles shipped to the Colon Free Zone enter under duty-free customs suspension status. They can be stored, re-exported to Central/South America, or cleared for local Panama registration after paying national import duties and taxes.

Q3: What crane lifting capacity is recommended for general construction and logistics?

A: A 6.3ton to 8ton XCMG knuckle boom crane mounted on a 4 *2 heavy-duty JAC chassis provides the optimal balance between cargo capacity, crane power, and vehicle stability.

Q4: Is spare parts support available for JAC trucks and XCMG cranes in Latin America?

A: Yes. Both JAC Motors and XCMG have established distribution networks, regional service centers, and parts depots across Central and South America, including Panama, Colombia, Costa Rica, and Peru.

Q5: Can the crane be operated from both sides of the truck?

A: Yes. Standard XCMG folding cranes feature dual-side manual control levers at ground level. Optional wireless radio remote controls are also available for maximum operator safety and visibility.

Q6: How long does ocean shipping take from China to Colón, Panama?

A: Shipping via Ro-Ro or Container vessel typically takes 28 to 35 days from major Chinese ports (e.g., Shanghai, Qingdao, Shenzhen) to Port of Colón (MIT/Cristóbal).

Q7: What type of hydraulic oil should be used in tropical climates?

A: We recommend ISO VG 68 Anti-Wear Hydraulic Oil for high ambient tropical temperatures to maintain proper viscosity and oil film strength.

Q8: Does the crane come with safety devices to prevent overloading?

A: Yes. All XCMG cranes are equipped with essential safety systems, including a Load Moment Indicator (LMI) / pressure gauge, hydraulic lock valves on outriggers, an over-winding limit switch, and an emergency stop system.

Q9: Can the truck deck length be customized according to our cargo requirements?

A: Absolutely. The cargo box length can be customized (typically between 5.0 m and 6.2 m) depending on chassis wheelbase and crane model selected, ensuring compliance with local axle-load regulations.

Q10: What warranty and documentation are provided upon delivery?

A: The vehicle includes a 12-month or 30,000 km warranty (whichever comes first) covering major powertrain and crane components. Export documentation includes the Bill of Lading (B/L), Commercial Invoice, Packing List, Certificate of Origin, and Factory Test Certificates.

Manufacturer & Export Supplier: Chengli Special Automobile Co., Ltd. (CLW Group), China
Product: JAC 4x2 Cargo Truck with XCMG Knuckle Boom Crane
Customization: Chassis, cargo body, crane capacity, wheelbase, hydraulic accessories and export configuration can be customized according to customer requirements.
Markets: Latin America, Africa, Southeast Asia, Central Asia and other international markets
