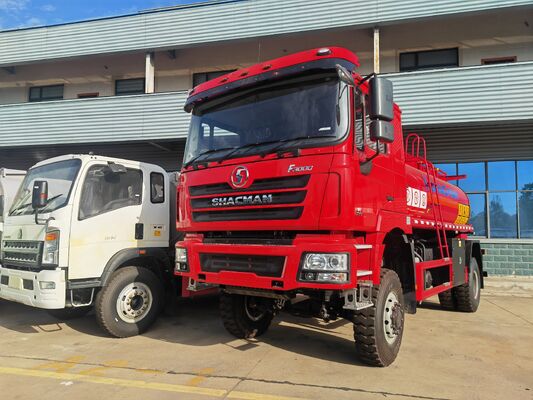

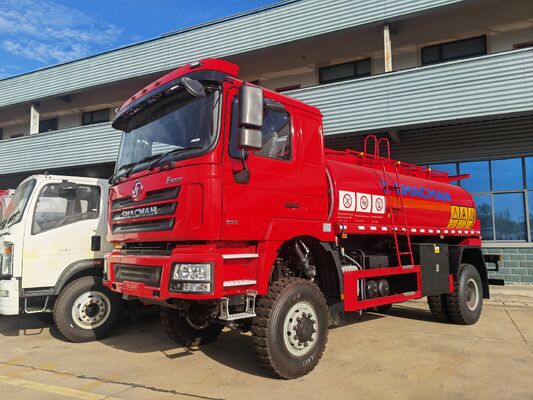

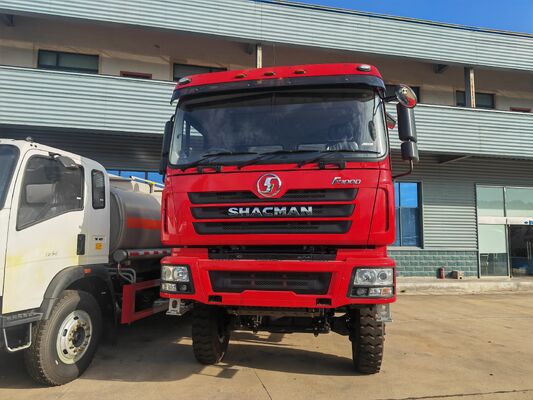

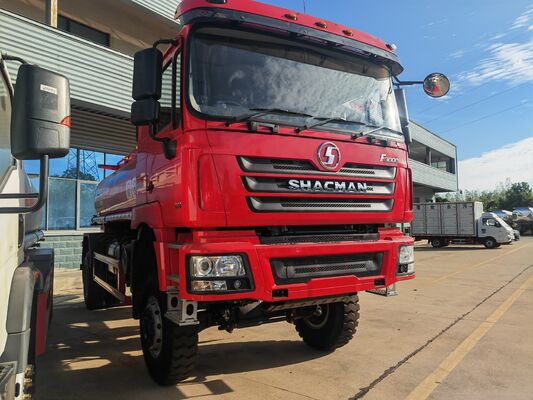

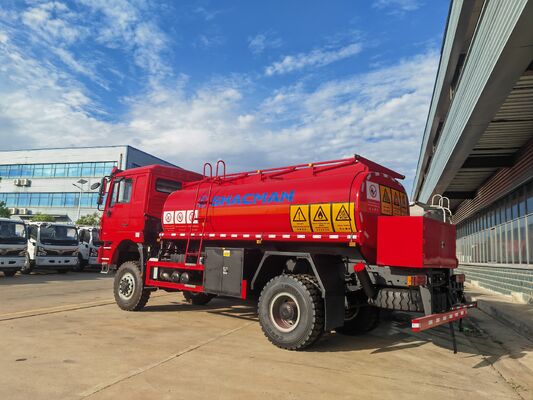

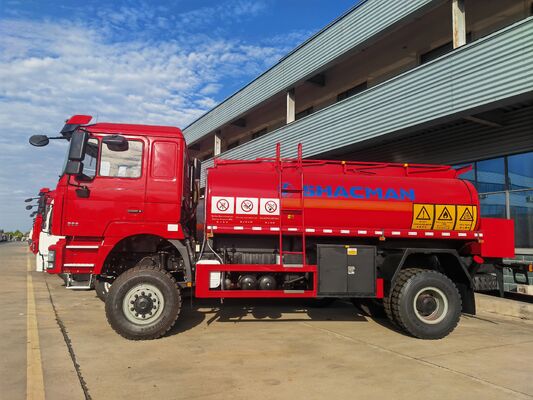

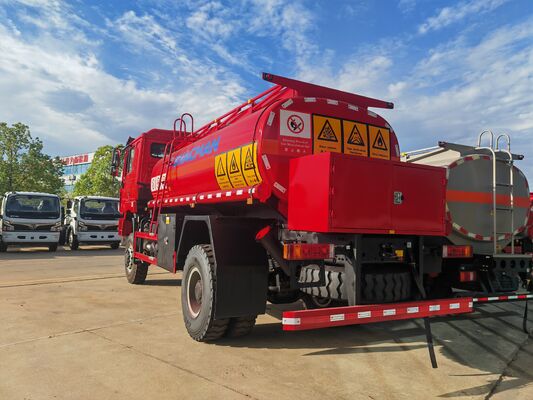

SHACMAN F3000 4x4 Off-Road All-Wheel Drive Fuel Tanker Truck

SHACMAN F3000 4x4 Off-Road All-Wheel Drive Fuel Tanker Truck

The SHACMAN F3000 4x4  Fuel Tanker Truck is a heavy-duty off-road fuel transportation and mobile refueling vehicle designed for mining sites, construction projects, oil fields, agricultural operations, and remote areas without permanent fuel stations. It combines a SHACMAN F3000 6x6 all-wheel-drive chassis with a 10,000–15,000 liter fuel tank, PTO-driven fuel pump, optional digital fuel dispenser, flow meter, and automatic hose reel.

The truck is designed for transporting and dispensing diesel, gasoline, and other compatible liquid fuels in demanding off-road environments where high traction, ground clearance, and reliable fuel delivery are required.

1. Case Study & Application Scenarios

Scenario A: Mining & Construction Site Mobile Refueling

In rugged, unpaved mining zones across South America and Africa, standard 4x4 or 6x4 road tankers often struggle with steep slopes, deep mud, and loose sand. The SHACMAN F3000 4x4 AWD Fuel Tanker serves as an all-terrain mobile station. Equipped with a heavy-duty fuel dispenser and a 15-meter automatic hose reel, it directly refuels excavators, bulldozers, and haul trucks on-site, minimizing fleet downtime.

Scenario B: Remote Area Fuel Distribution & Disaster Relief

In remote oil fields, agricultural plantations, or disaster relief zones lacking fixed gas stations, this 6x6 fuel truck navigates rough terrain to deliver diesel or gasoline safely. Features like multi-compartment design allow the simultaneous transport of different fuel types (e.g., Diesel and Gasoline) to supply multiple equipment fleets in one trip.

2. Technical Specifications

3. Buyer Guide

Determine Capacity & Weight Limits: Choose your tank volume (e.g., 10,000L or 12,000L) based on local road axle load regulations and off-road payload safety limits.

• Select Tank Material:

• Carbon Steel (Q235): Cost-effective, ideal for Diesel and standard Gasoline.

• Aluminum Alloy / Stainless Steel: Lightweight, corrosion-resistant, recommended for aviation fuel or harsh coastal environments.

• Choose Refueling Equipment:

• Transport-only: Pump-in and pump-out function via PTO.

• Mobile Refueling: Add a digital dispenser machine, flow meter, and automatic hose reel box for accurate metering during refueling operations.

• Compartment Setup: Multi-compartments can be configured with separate pipelines and meters if you plan to transport different liquids (e.g., Diesel + Gasoline) in a single trip.

4. Maintenance Guide

• Daily Inspection: Check tire pressure, fluid levels (engine oil, coolant), and inspect the bottom emergency valve (sea valve) for leakages before operation.

• Fuel Tank Safety: Periodically check the static grounding wire/reel to ensure reliable electrical continuity to prevent static discharge sparks.

• PTO & Pump Care: Engagement of the Power Take-Off (PTO) must be done with the clutch fully depressed. Never run the fuel pump dry without liquid inside.

• Filter Cleaning: Inspect and clean the pipeline fuel filters every 1,000 operating hours to prevent clogging and ensure accurate dispenser flow rates.

• Off-Road Drive System: Regularly check transfer case gear oil levels and inspect front-drive axle CV boots/joints when operating frequently in deep mud or sand.

5. Frequently Asked Questions

1. Q1: What is the main advantage of a 6x6 AWD fuel truck compared to standard 4x2 or 6x4 trucks?

A: The 6x6 full drive system delivers power to all four wheels, giving the truck high ground clearance and excellent traction on mud, sand, steep slopes, and off-road construction sites where standard road trucks easily get stuck.

2. Q2: Can the tank be divided into separate compartments?

A: Yes, we can design 2 or 3 independent compartments with separate loading and discharge valves, allowing you to transport different fuel grades in one shipment.

3. Q3: Does the truck come with a fuel dispenser and meter?

A: Yes, we can install a full mobile refueling unit including a digital fuel dispenser, high-precision flow meter, and a 15-meter automatic retractable hose reel inside a protective side or rear box.

4. Q4: What standard safety features are included for hazardous liquid transport?

A: The truck comes standard with European standard manholes, emergency shut-off valves (sea valves), a front-mounted engine exhaust with a spark arrestor, static grounding reels, and fire extinguisher boxes.

5. Q5: Can you manufacture the steering for Left-Hand Drive (LHD) or Right-Hand Drive (RHD)?

A: Yes, we offer both LHD and RHD configurations depending on your country's driving regulations.

6. Q6: What engine options are available?

A: The standard engine is a heavy-duty WEICHAI engine ranging from 336 HP to 380 HP, with emission standards available from Euro 2 up to Euro 5.

7. Q7: How is the emergency bottom valve controlled?

A: It can be controlled manually or via a pneumatic cut-off switch in the cab. In case of an emergency or accident, the valve automatically cuts off the oil pipeline to prevent fuel leakage.

8. Q8: What is the delivery time for this SHACMAN F3000 fuel truck?

A: Typical manufacturing time is around 25 to 35 working days after receiving the advance deposit and confirming all technical drawings.

9. Q9: How is the truck shipped to our port?

A: We offer flexible shipping methods including RORO (Roll-on/Roll-off) ship, Bulk Cargo ship, or Flat Rack Container depending on the overall dimensions and destination port options.

10. Q10: What warranty and after-sales support do you provide?

A: We provide a 1-year (or 30,000 km) warranty covering main chassis components and tank assemblies. We also supply original spare parts and technical guidance.

The SHACMAN F3000 4x4 Fuel Tanker Truck is supplied and customized for international markets by Chengli Special Automobile Co., Ltd. (CLW Group), a Chinese special vehicle manufacturer and exporter. The company provides fuel tanker trucks in different capacities, chassis configurations, tank materials, compartment layouts, emission standards, steering configurations, and refueling equipment according to the requirements of overseas customers.

The SHACMAN F3000 fuel tanker can be configured for export markets in Africa, South America, Central Asia, Southeast Asia, and other regions where heavy-duty off-road fuel transportation and mobile refueling are required.
