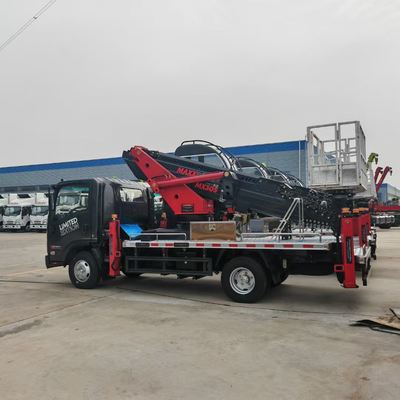

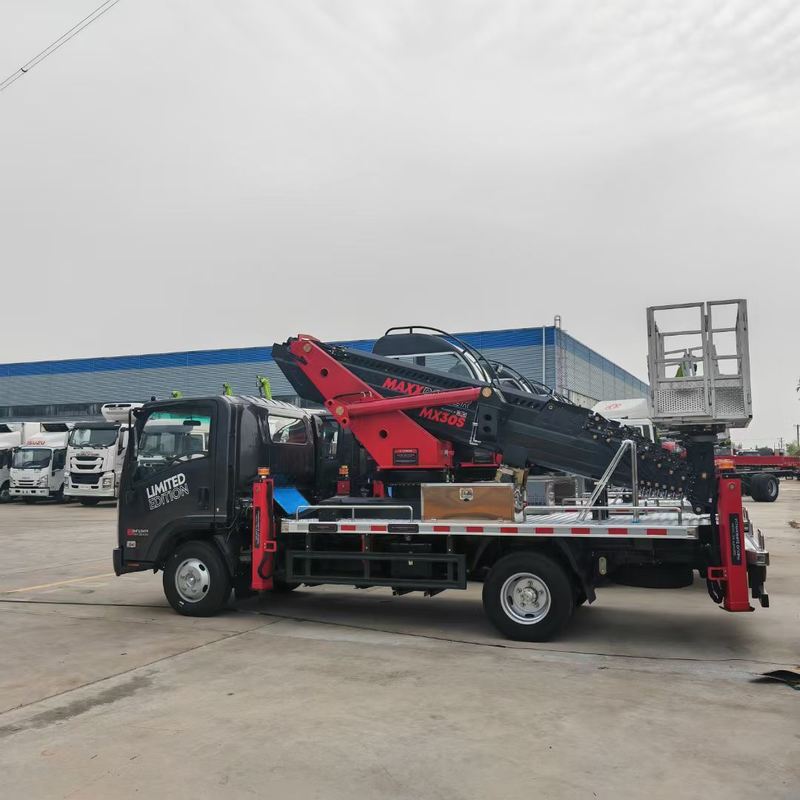

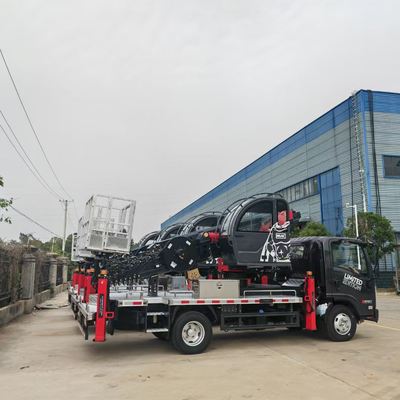

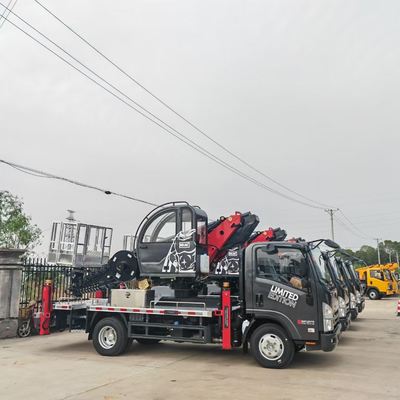

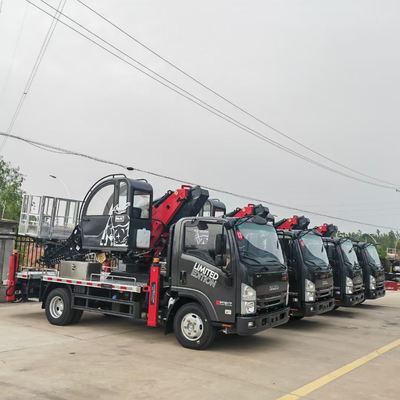

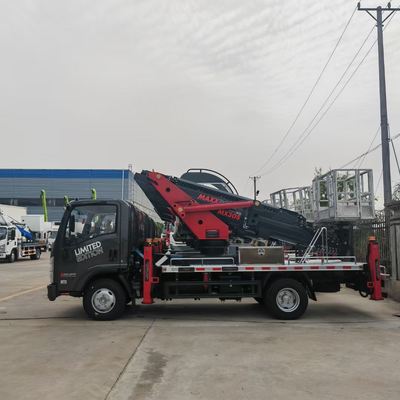

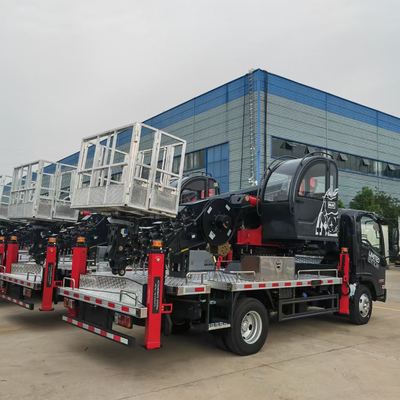

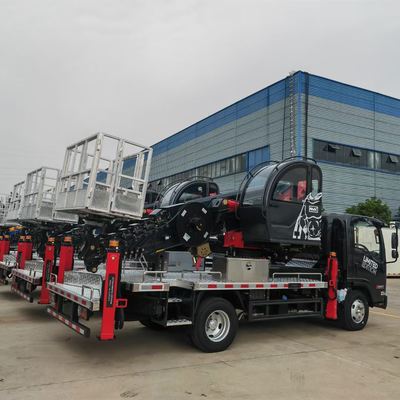

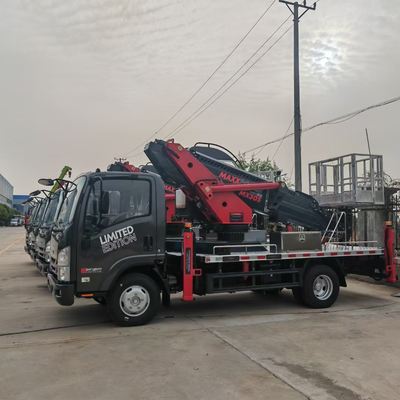

Isuzu High Lift Bucket Aerial Work Hydraulic Platform Lift Truck

The Isuzu High Lift Bucket Aerial Work Hydraulic Platform Lift Truck, commonly known as an Isuzu aerial work platform (AWP) truck or bucket truck, is a specialized vehicle designed for safely lifting personnel and tools to perform work at height.

These trucks are built on reliable Isuzu chassis (such as NPR, FTR, GIGA, or other models) and are equipped with a hydraulically operated boom and a working platform (or "bucket").

Chassis: Typically uses an Isuzu truck chassis, known for its durability, power, and often featuring a standard or double-row cab.

Working Height: Isuzu aerial work trucks are available in a wide range of maximum working heights, commonly from 8 meters up to 45 meters (around 26 feet to over 147 feet) or more, depending on the model and chassis.

Boom Type: The lifting mechanism can be:

• Telescopic Boom: Consists of straight sections that extend and retract to reach great heights and distances. These often use hexagonal or multi-sided sections for strength.
• Articulating/Folding Boom (Knuckle Boom): Uses jointed sections that pivot, offering flexibility to maneuver around obstacles.

Hydraulic System: The boom operation is powered by a hydraulic system, which provides smooth, precise control for lifting, slewing, and extending the arm.

Working Platform (Bucket/Cage):

• Material: Often made of high-strength steel or insulated fiberglass for electrical work (insulated bucket is optional).
• Load Capacity: Typically ranges from 200 kg to 400 kg (about 440 lbs to 880 lbs), designed to carry one or two workers plus tools.
• Rotation: Many platforms feature a continuous 360-degree rotation for maximum reach and positioning flexibility.

Stabilization: Equipped with hydraulic outriggers (often H-type, V-type, or a combination) that extend and retract to stabilize the vehicle during operation, ensuring safety even at maximum reach.

Control System: Features dual control systems: one at the base turntable (ground level) and one inside the working platform/bucket, often with user-friendly controls (joystick or lever) and sometimes an optional wireless remote control.

Safety Features: Includes comprehensive safety devices such as:

• Emergency stop buttons.
• Hydraulic locks and balancing valves to prevent uncontrolled movement or falling.
• Anti-tilt sensing and automatic leveling.
• Interlocks to prevent simultaneous operation from the ground and bucket controls.
• Emergency electric/manual pump to safely stow the boom in case of engine or main pump failure.

Isuzu aerial platform truck—also referred to as a bucket truck, cherry picker, telescopic boom lift, or hydraulic aerial work platform—is a specialized vehicle equipped with a hydraulic boom and basket. It provides safe, elevated working access for tasks like streetlight maintenance, utility repairs, signage installation, landscaping at height, and more

The term "Isuzu High Lift Bucket Aerial Work Hydraulic Platform Lift Truck" refers to a wide range of specialty vehicles built on various Isuzu truck chassis. The technical specifications (working height, chassis model, engine, etc.) vary significantly depending on the specific model and manufacturer.

Below is a consolidated technical sheet based on common and representative models (like the 20m, 30m, and 45m versions) often sold globally:

The Isuzu High Lift Bucket Aerial Work Hydraulic Platform Lift Truck (also known as a bucket truck, aerial lift, or manlift truck) is a specialized utility vehicle designed for safely elevating workers and tools to perform tasks at height.

While specific details can vary significantly based on the model, working height, and manufacturer, here are the general key components, features, and safety systems:

Isuzu Chassis: The vehicle's foundation, providing the engine, cab, and driving components. Common Isuzu chassis used include the KV100 and ELF/N-Series.

Engine: Typically a reliable Isuzu diesel engine (e.g., 4KH1 series) with sufficient horsepower and torque for both driving and operating the hydraulic system.

Cab: Often available in single or double-row configurations.

Aerial Work Device (Superstructure): The lifting mechanism mounted on the chassis.

Boom Type: Can be a Telescopic Arm (straight arm) or an Articulated Arm (folding arm/knuckle boom), or a combination. The telescopic arm is often a multi-section, high-strength steel or hexagonal-profile boom for structural integrity.

Working Platform/Bucket: A cage or basket at the end of the boom, designed to carry personnel and tools.

• Capacity: Typically around 200 kg (varies by model).
• Material: Can be steel or reinforced fiberglass (often for insulated models used near power lines).
• Features: Often includes an anti-slip floor, and may have a rotation function (e.g., ±90 ∘ or 360 continuous).

Turntable/Slewing Device: Allows the boom to rotate continuously, often 360 ∘ , for maximum working range.

Hydraulic System: The power system for all lifting, extending, and rotation movements.

• Components: Includes a power take-off (PTO), hydraulic pump, cylinders, hoses, and a hydraulic tank with a cooling system (radiator).
• Control Valves: Equipped with balance valves and two-way hydraulic locks on cylinders to prevent load loss, uncontrolled movement, and to maintain the position once set.

Stabilization System (Outriggers): Essential for maintaining stability during aerial operations.

• Type: Commonly Front V and Rear H or Front V and Rear V shape hydraulic outriggers, providing a wide span.
• Function: Individually adjustable to level the vehicle even on uneven terrain.

Working Height: Models are available in a wide range, often from 14 meters up to 32 meters (and sometimes higher).

Working Radius/Range: The maximum horizontal distance the bucket can reach, which decreases as the working height increases.

Control System: Typically features multiple control points:

• Upper Controls (in the bucket): Allows the operator at height to maneuver the boom.
• Lower/Ground Controls (on the turntable): Allows ground personnel to operate the boom, often with an override function for emergencies.
• Optional: Many modern units feature wireless remote control for flexible operation.

Safety is paramount for aerial work platforms, and Isuzu trucks are equipped with numerous features:

• Outrigger/Boom Interlock: Prevents boom operation until the outriggers are properly deployed and stabilized.
• Upper/Lower Control Interlock: Prevents simultaneous operation from both control stations.

• Emergency Stop Buttons: Located at all control stations.
• Emergency Electric/Manual Pump: Allows the operator to be safely lowered to the ground in case of engine or main hydraulic pump failure.

• Automatic Leveling: Hydraulic system to keep the working bucket level regardless of boom position.
• Load Monitoring: Some platforms feature sensors to detect and display the weight in the basket, often with an overload alarm or automatic limiting function.
• Vehicle Level Detection: Real-time monitoring of the truck's horizontal status.

• Two-way Hydraulic Locks: On boom and outrigger cylinders to prevent drift or retraction in case of pressure loss.
• Automatic Limiting: Computer control to automatically restrict movement in dangerous or excessive working positions.
• Night Safety: Equipped with engineering strobe lights and LED lighting.
• Soft Leg Protection: Systems to prevent damage if outriggers are improperly set.
• Optional Insulated Bucket: Fiberglass bucket for electrical work protection.

These trucks are versatile and used across many industries, including:

• Municipal Services: Street light and traffic light maintenance, public sign installation.
• Utilities: Power line and communication cable installation and repair (especially with insulated buckets).
• Construction & Maintenance: Building façade maintenance, window cleaning, roof work.
• Landscaping: Tree trimming and maintenance.
• Advertising: Billboard and sign installation.

In essence, the Isuzu bucket truck is a reliable and safe solution for various high-altitude operational tasks.

Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer of special purpose vehicles, and a core enterprise of the CLW Group.

• Establishment: The company was established in September 2004.
• Location: It is headquartered in Suizhou City, Hubei Province, China, which is known as the "Capital of China's special purpose vehicles."
• Scale: It is a large-scale manufacturer, often ranked among China's Top 500 Private Enterprises and is considered one of the biggest special vehicle manufacturers in China.
• Group Structure: It is part of the larger Chengli Automobile Group Co., Ltd., which is a diversified group involved in R&D, manufacturing, sales, finance, and other businesses related to complete vehicles, special purpose vehicles, and automotive parts.
• Reputation: The company's brand, "CHENGLIWEI" (CLW), is a registered trademark and has been recognized as a well-known trademark in China.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd. is a major player in the global special purpose vehicle market, with a significant and strategic focus on overseas expansion.

The company's international market strategy centers on leveraging its manufacturing scale and diverse product line to meet the infrastructure and utility needs of developing economies.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
