| Brand Name: | Isuzu Fvr |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
The Isuzu FVR 34-meter aerial insulated bucket work platform manlift truck is a specialized heavy-duty vehicle designed for high-altitude electrical, maintenance, and construction work, especially where insulation is required for safety near power lines.
Manufacturers like Chengli Special Automobile Co., Ltd. (and other Chinese special vehicle makers) frequently use the reliable Isuzu FVR chassis to build this type of manlift truck.
Here is a breakdown of the typical specifications and features of this type of vehicle:
Aerial platform vehicles are widely used for installation, maintenance and ascending operations in industries such as municipal administration, electric power, street lights, advertising, communications, photography, gardens, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises, etc.
Aerial platform truck are also known as: street light repair trucks, hydraulic lift trucks, ascending platform trucks. Our company specializes in the production of 6 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters , 28 meters, 32 meters, 38 meters, 45 meters aerial platform trucks, lift trucks, products are widely used in electric power, street lamps, municipal Aerial work areas such as gardens, communications, airports, shipbuilding, ship repair, transportation, advertising, photography, etc. According to the type, it is mainly divided into: vertical lift type (also known as scissor type) aerial work truck, folding arm type lift aerial work truck, self-propelled aerial work platform, telescopic boom type aerial work truck, and ladder truck.
The truck is typically based on a high-capacity Isuzu FVR chassis, sometimes specified as an "All-Drive" or 4×4 Full Driver model for enhanced off-road capability.
| Feature | Typical Specification |
|---|---|
| Chassis Model | ISUZU FVR |
| Driving Type | 4×2 or 4×4 (All-Drive/Full Driver) |
| Engine | ISUZU Diesel Engine (e.g., 6HK1 series), often ≈205 HP to 240 HP |
| Transmission | Manual (e.g., ISUZU MLD 6-speed) |
| GVW (Gross Vehicle Weight) | ≈16,000 kg to 18,000 kg |
| Cabin | Single row or Double Cabin (allowing more crew members) |
| Steering | Available in Left Hand Drive (LHD) or Right Hand Drive (RHD) |
II. Aerial Work Platform (Manlift) Specifications
The superstructure is the specialized work platform system, designed for high reach and safety.
| Feature | Typical Specification |
|---|---|
| Maximum Working Height | 34 Meters |
| Working Mechanism | Telescopic boom (straight arm) with multiple sections |
| Slew/Rotation | 360∘ Continuous Rotation |
| Insulation | Insulated bucket/cage and/or boom section, rated for electrical work (e.g., up to 20kV or more) |
| Platform (Bucket) Capacity | ≈200 kg (suitable for 2 workers and tools) |
| Platform Material | Reinforced fiberglass (for insulation) or stainless steel |
| Outriggers/Stabilizers | 4 Hydraulic H-shaped Outriggers (or a similar configuration) with a large span for stability. |
| Control System | Dual Control: Ground-level control and control panel/joystick inside the work bucket, often including wireless remote control options. |
| Product name | 4×2 ISUZU 22m aerial lift truck and aerial work platform with truck | Chassis model | SX1166NR561 |
| Lift height customization | 22 meter | Total mass (kg) | 10295 |
| Engine horsepower | 270Ph | Rated load mass (Kg) | 200 |
| Engine name | WP10.270E40 | Emission Standards | Euro 5 |
| Dimensions (MM) | 9200×2460×3600 | Fuel type | Diesel |
| Number of tires | 6 | Tire specifications | 12.00R20 |
| Wheelbase (MM) | 5200 | Maximum speed (km/h) | 95 |
| Front track | 1910 | Rear track | 1800 |
| Performance profile | The company's aerial work vehicle series can accommodate more operators. Configuration work basket; with electric insulation device, subject to actual test, performance is reliable. Mainly used for high-altitude operations such as electrical line inspection, aerial work cleaning, and tree pruning. | ||
| Dedicated configuration |
|
||
Key Safety & Performance Features
Insulation: The most crucial feature, with the fiberglass bucket and insulated boom designed to protect workers from electrical contact hazards.
Safety Devices: Includes hydraulic safety locks, balance valves, relief valves, and an emergency manual pump for safely lowering the bucket in case of a power failure.
Intelligent Control: Many modern units feature an LCD display in the bucket to show real-time working height, radius, and boom angle, often with an automatic alarm for dangerous working conditions.
Boom Design: The boom often has an octagonal or multi-sided cross-section, constructed from high-strength material for rigidity and reliability at maximum extension.

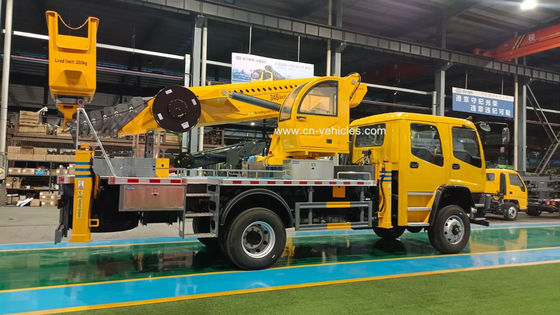

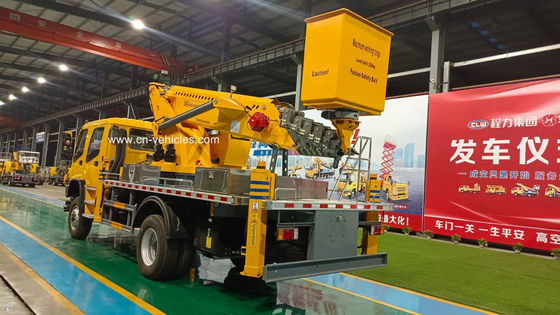

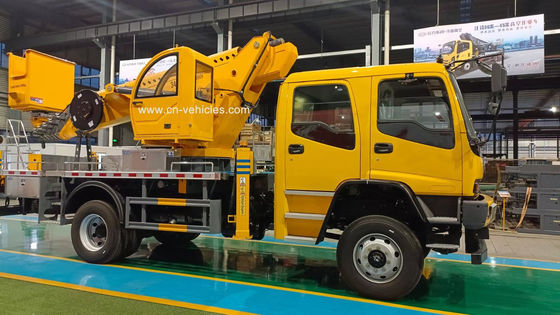

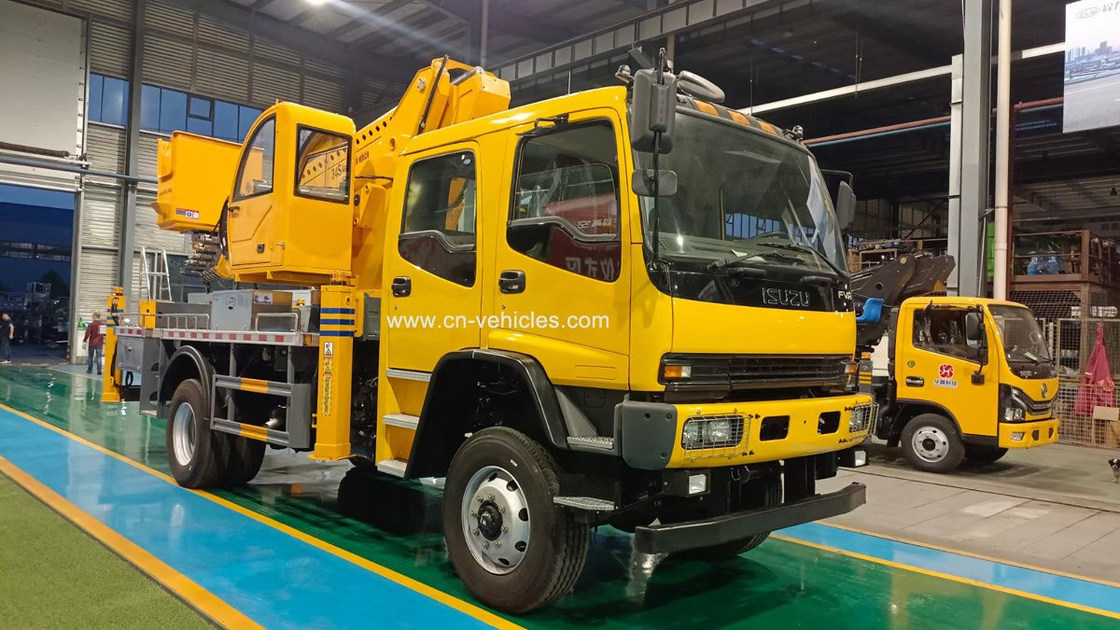

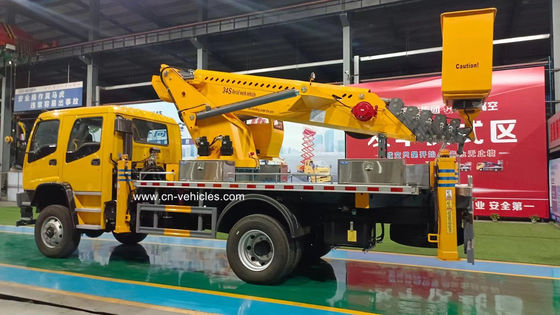

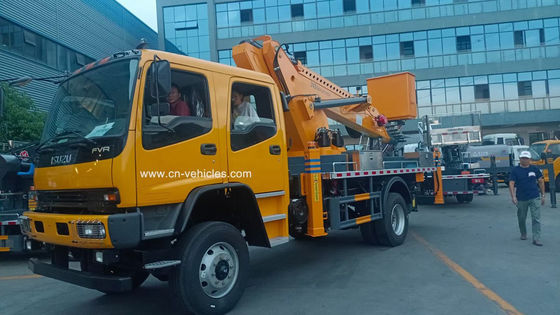

Isuzu Manlift Truck Full Driver 34 Meter Aerial Work Platform Truck details :
Hydraulic and Control System
Operation: Dual-station control (from the turntable on the truck and from the work bucket) with an interlock function to prevent simultaneous operation.
Optional Controls: Wired and/or wireless remote control system for operating the boom and bucket functions.
Hydraulic System: Equipped with components like relief valves, balance valves, and double-way hydraulic locks for smooth and safe operation.
Safety Features
Safety is paramount for such high-altitude equipment. Key safety features typically include:
Outrigger-Boom Interlock: Prevents boom operation until the outriggers are properly deployed and stabilized.
Emergency Stop: Buttons at both control stations to immediately shut down power in a dangerous situation.
Emergency Hydraulic Pump: Allows for a manual lowering of the boom and basket to the ground in case of engine or main pump failure.
Overload Protection: Systems to prevent operation when the platform load exceeds the rated capacity.
Basket Leveling: Mechanical or automatic leveling system for the work platform to ensure the safety of the operator.
Insulation (Optional): Models designed for work near power lines feature an insulated bucket and boom made of non-conductive materials (like fiberglass) to protect workers from electrical currents.
Visual/Audible Warnings: Warning lights, sirens, and anti-tipping sensors.
Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer specializing in the research, development, and production of a wide variety of special-purpose vehicles and trucks. It is a core enterprise of the larger CLW Group.
Here are the key details about the company:
Established: Founded in September 2004.
Location: Headquartered in Suizhou City, Hubei Province, China, which is known as the "Capital of China's Special Purpose Vehicles."
Scale: It is one of the largest special automobile manufacturers in Central China, designated by the Chinese Ministry of Industry and Information Technology. The CLW Group is often ranked among China's top private enterprises.
Expertise: The company excels in modifying various commercial vehicle chassis (like Isuzu, Dongfeng, Sinotruk, Foton, Shacman, etc.) into specialized vehicles for various industries.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. has a substantial and expanding presence in the global market, exporting its wide range of special-purpose vehicles to numerous countries and regions worldwide.
Here is an overview of their overseas market activity:
Chengli's products are exported to over 50 countries and regions across the globe, with a strong focus on developing economies and specific continents:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
