ISUZU Stainless Steel Aircraft Refueling Truck (Jet A-1 Aviation Tanker)

ISUZU Aircraft Stainless Steel Fuel Tanker Truck

Chengli Special Automobile Co., Ltd. (CLW Group) is a China-based special vehicle manufacturer and exporter supplying customized fuel tanker trucks, aircraft refueling trucks, water trucks, fire trucks, sanitation vehicles, and other special-purpose commercial vehicles. For aviation refueling applications, CLW provides customized chassis, tank capacity, tank material, filtration, pumping, metering, grounding, hose reel, and refueling configurations according to customer specifications and destination-market requirements.

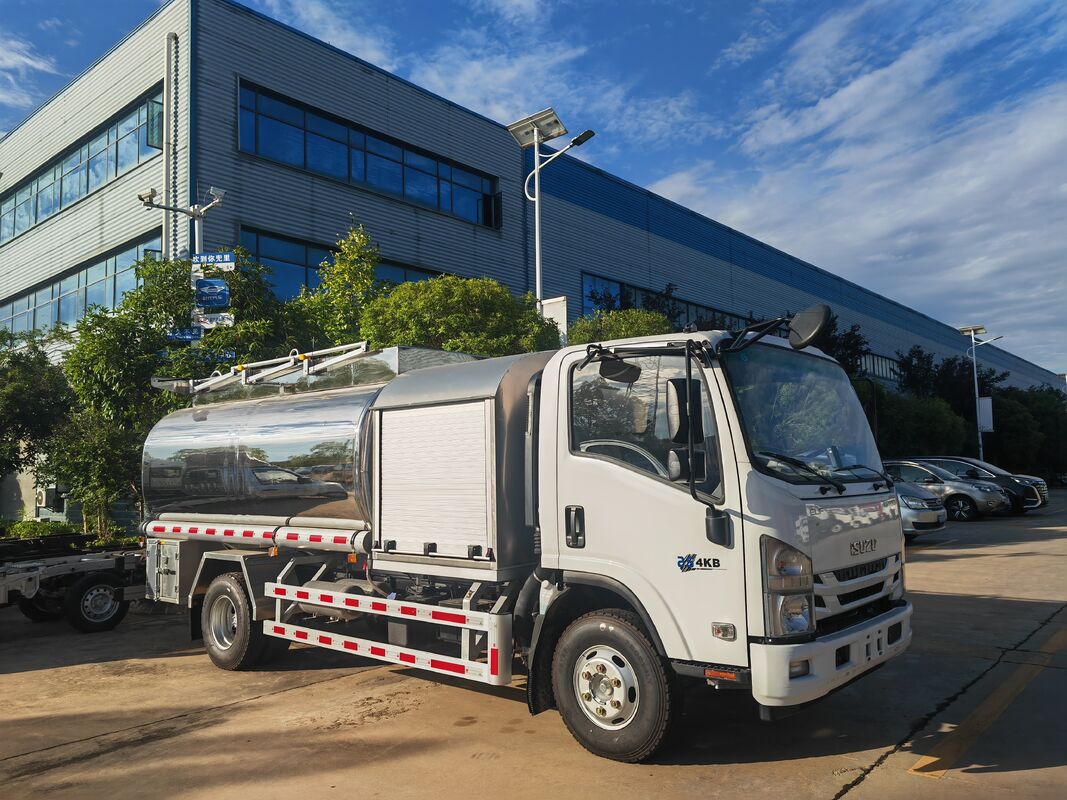

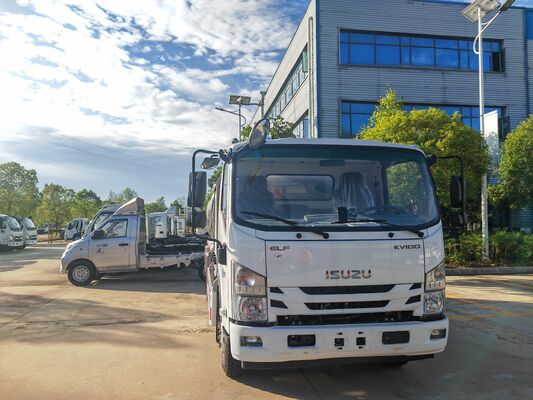

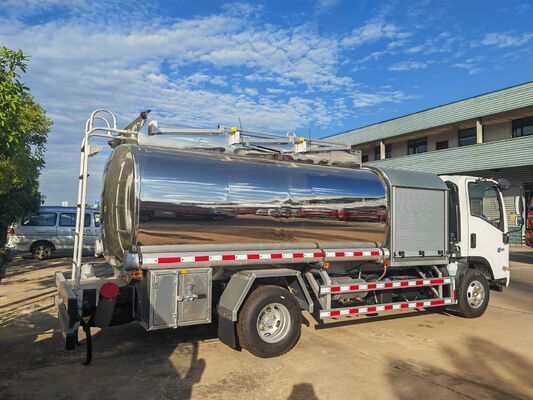

The ISUZU Stainless Steel Aircraft Refueling Truck is a specialized mobile aviation fuel servicing vehicle designed for airports, airfields, private aviation facilities, and ground handling operations. Built on an ISUZU FVR, FTR, or GIGA chassis, the truck can be configured with a 10,000–25,000 liter stainless steel fuel tank for Jet A-1 or other approved aviation fuels. The refueling system can include coalescer-separator filtration, precision flow metering, pressure refueling, overwing gravity refueling, static grounding, emergency shut-off protection, and aviation-grade hose reels. Tank material, pump capacity, filtration configuration, metering system, chassis, and refueling connections can be customized according to airport and aircraft servicing requirements.

1. Application Case Study

Project Background:

A regional airport and private aviation club in Southeast Asia required a fleet of high-purity jet fuel (Jet A-1) refuelers compliant with API/EI 1581 standards.

Customer Pain Points:

Conventional carbon steel tankers are prone to rust, which contaminates jet fuel. Additionally, standard fuel pumps with low filtration precision fail to meet the strict cleanliness and high-pressure flow control required for aviation refueling.

CLW Solution:

Chengli Special Automobile Co., Ltd. engineered a custom aviation refueling truck based on an authentic ISUZU chassis, equipped with an SS304/SS316L stainless steel tank. The vehicle features a multi-stage coalescer-separator filter, high-precision meter, dual pressure/gravity refueling systems, and an anti-static grounding system.

Implementation Results:

Upon delivery, the vehicles passed IATA-compliant operational inspections, enabling zero-contamination refuelings and significantly reducing ground service turnaround time.

2. Technical Specifications

Below are the standard specifications for the ISUZU FVR / GIGA Series 10,000L – 25,000L Stainless Steel Aviation Refueling Truck:

3. Buyer Guide

When procuring aviation refueling trucks from CLW AUTOMOBILE GROUP, consider the following key technical parameters:

Fuel Type & Material Selection

• Jet A-1 / Jet A: Requires SS304/SS316L Stainless Steel or Aluminum Alloy tanks. Carbon steel is strictly prohibited due to corrosion risks.
• Avgas 100LL: Ideal for general aviation; smaller capacities (3,000L – 8,000L) on light-duty ISUZU ELF/N-Series chassis are recommended.

Refueling Method

• Overwing Fueling: Suitable for helicopters and light general aviation aircraft (gravity nozzle).
• Underwing Pressure Fueling: Essential for commercial passenger and cargo aircraft, requiring high-pressure hose reels and standard ground refueling couplings (e.g., Carter nozzles).

Chassis & Emission Standards

• Select the appropriate ISUZU engine configuration (Euro 2 through Euro 6) based on target country import regulations.

Third-Party Certification

• Specify if third-party non-destructive testing (NDT), tank pressure test, or explosion-proof certification reports (SGS, BV, CCIC) are required prior to shipment.

4. Maintenance Guide

To ensure operational safety and maximize equipment service life, adhere to the following maintenance routine:

Daily Checks

• Sump Drainage: Before operations, drain a sample from the tank bottom drain valve into a clean, static-safe glass container to inspect for water or particulate contamination.
• Static Grounding: Verify the retraction tension of the grounding reel and test continuity between the clamp and vehicle chassis.
• Leak Inspection: Check hoses, quick couplings, manifolds, and pump seals for leaks.

Weekly / Monthly Maintenance

• Filter Differential Pressure: Monitor the differential pressure (DP) gauge across the EI 1581 filter elements. Replace filter elements when the DP reaches 0.15 MPa (15 psi).
• Emergency Shut-Off Valve Test: Test the pneumatic/manual emergency cut-off system to confirm complete closure within 3 seconds.

Quarterly / Annual Maintenance

• Meter Calibration: Have the flow meter calibrated and certified annually by an accredited metrology authority.
• Tank Internal Inspection: Perform internal tank cleaning and inspect stainless steel welds and internal baffle mountings.

5. Frequently Asked Questions

1. Q1: Why must aircraft refuelers use stainless steel or aluminum instead of carbon steel?

   A: Aviation turbine engines are highly sensitive to particulate contamination. Carbon steel oxidizes, creating rust flakes that plug engine fuel nozzles. Stainless steel (SS304/SS316L) offers high corrosion resistance and zero rust contamination.

2. Q2: What international aviation standards does this ISUZU refueling truck comply with?

   A: The refueling system is designed and manufactured in accordance with API/EI 1581 (filtration), IP/API 1583, NFPA 407 (Aircraft Fuel Servicing), and IATA ground handling guidelines.

3. Q3: Is local aftermarket service available for the ISUZU chassis?

   A: Yes. ISUZU operates a global commercial vehicle network. Engine, transmission, and chassis components can be serviced through authorized local ISUZU service centers worldwide.

4. Q4: Can the truck be configured with both overwing and underwing refueling capabilities?

   A: Yes. We can install a dual-reel system featuring one independent system for overwing gravity fueling and another pressure-controlled system for underwing operations.

5. Q5: How often should the filter elements inside the coalescer-separator be replaced?

   A: Filter elements must be replaced when the differential pressure reaches 15 psi (0.1 MPa) or after 12 months of service, whichever comes first.

6. Q6: What static safety features are included on the truck?

   A: The vehicle features a triple-layer static protection design: a spring-rewind static grounding cable reel with a heavy-duty clamp, anti-static tires, and internal stainless steel bonding wires.

7. Q7: What is the typical production lead time for a customized unit?

   A: Standard manufacturing lead time is 30 to 40 working days following down payment receipt and technical drawing approval.

8. Q8: What shipping methods are available for export delivery?

   A: We offer flexible shipping via Ro-Ro (Roll-on/Roll-off) vessels, Bulk Carrier, or 40ft Flat Rack (FR) containers, all complete with marine anti-corrosion protective coatings.

9. Q9: Can an automatic high-level shut-off system be added to prevent tank overflow?

   A: Yes. An electronic or pneumatic high-level sensor system can be integrated to automatically shut the main bottom valve when fuel reaches 95% tank capacity.

10. Q10: Do you support pre-shipment inspection by third-party agencies?

    A: Absolutely. We regularly accommodate pre-shipment factory inspections and testing conducted by SGS, Intertek, BV, CCIC, or customer-appointed surveyors.
